Pneumatic Solenoid Valve Coil

5 year ago

20 0 

11 year

Product details

Solenoid Coil EVI 7/9 12VDC 24VDC 110VAC 220VAC

This solenoid coil is popularly used in pneumatic solenoid valves. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC. Power: 4VA, 5.5VA, 6VA, 8.5VA, 3W, 4.8W, 6W, 8W. A pneumatic solenoid valve is used to direct or stop the flow of compressed air in a pneumatic system. Sometimes called a pneumatic directional control solenoid valve, they are used in automation and control applications to actuate tools, cylinders and larger industrial valves.

Dimension and Data of Pneumatic Solenoid Valve Coil, Armature:

BRANDO Model	BB09029516
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Power	AC:4-8VA DC:3-8W
Other voltage and power can be customized
Insulation Class	F, H
Connector	DIN43650B

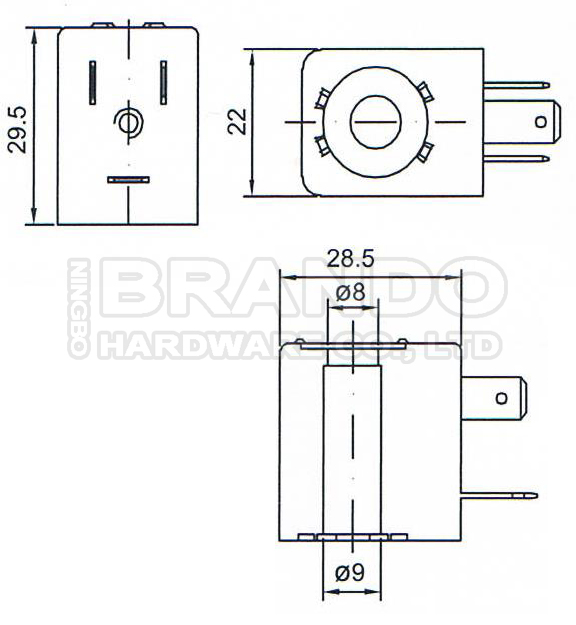

DIMENSION

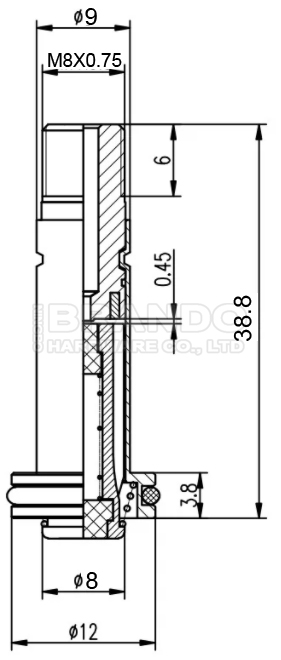

BRANDO Model	BAPC309029008
Function	3 Way Normally Closed
Plunger Tube Material	Brass
Seal Material	NBR, FKM, EPDM
Connection Type	Flange with O-ring Groove

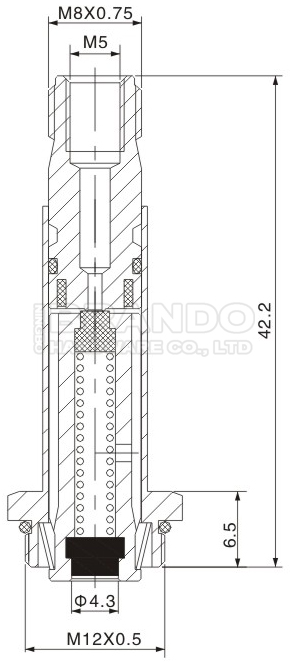

Thread Armature Dimension

BRANDO Model	BAPC309029005
Function	3 Way Normally Closed
Plunger Tube Material	Brass
Seal Material	NBR, FKM, EPDM
Connection Type	M12x0.5 with O-ring Groove

BRANDO Solenoid Valve Coils Production Video:

More Pneumatic Products for you to choose:


Pneumatic Solenoid Valve	Air Pilot Pneumatic Valve	Push Pull Air Valve	Hand Level Air Valve

Pneumatic Food Pedal Valve	Pneumatic Hose Fitting	Filter Regulator Lubricator	Pneumatic Cylinder

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
