5 year agoDC24V DC12V 2V025-08 1/4'' Airtac Type Solenoid Valve
Description of 2V025-08 1/4'' Airtac Type Electric Solenoid Air Valve:
1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
2.High quality sealing ring. High quality seals for durability and longer life
3.High frequency sub-head. Made of high-quality conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
4.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time
5.High quality electronic components. The copper coil can work hard for a long time, and the wiring operation is simple.
6.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
Technical Data of NC Direct Acting 2/2 Way Pneumatic Solenoid Valve:
Model No
2V025-06
2V025-08
Fluids
Air. Water. Oil
Action
Direct acting
Type
Normally Closed (NC)
Orifice size(φmm)
2.5
2.5
Cv value
0.23
0.25
Port size
1/8"
1/4"
Viscosity limit
Under 20Cst
Pressure range
0~1.0MPa (0~145psi)
Proof pressure
1.5MPa (215psi)
Material body
Anodized Aluminum
Seal material
NBR
Min. activating time sec
0.05 sec and below

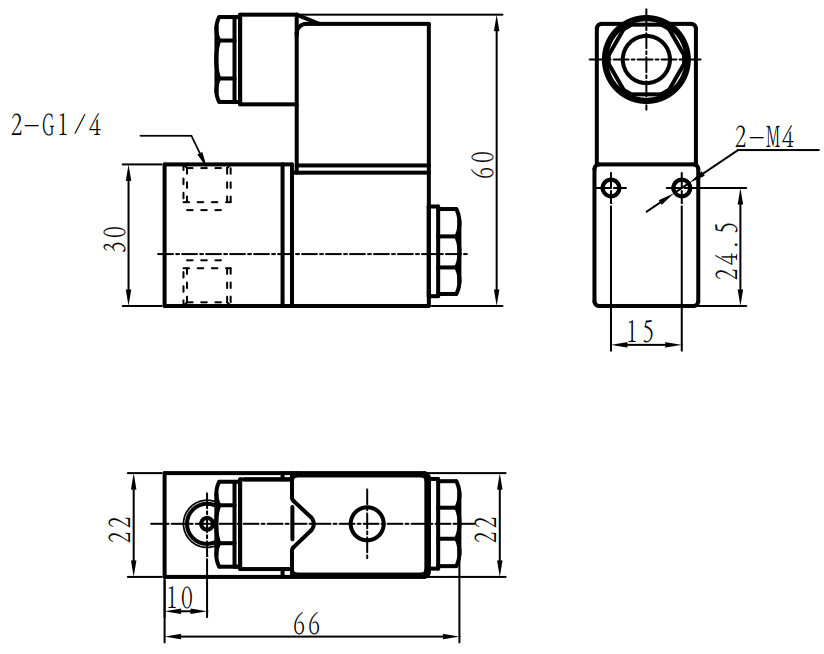

Main Dimension of 2V025-08 1/4'' Airtac Type 2/2 Way Pneumatic Solenoid Valve:

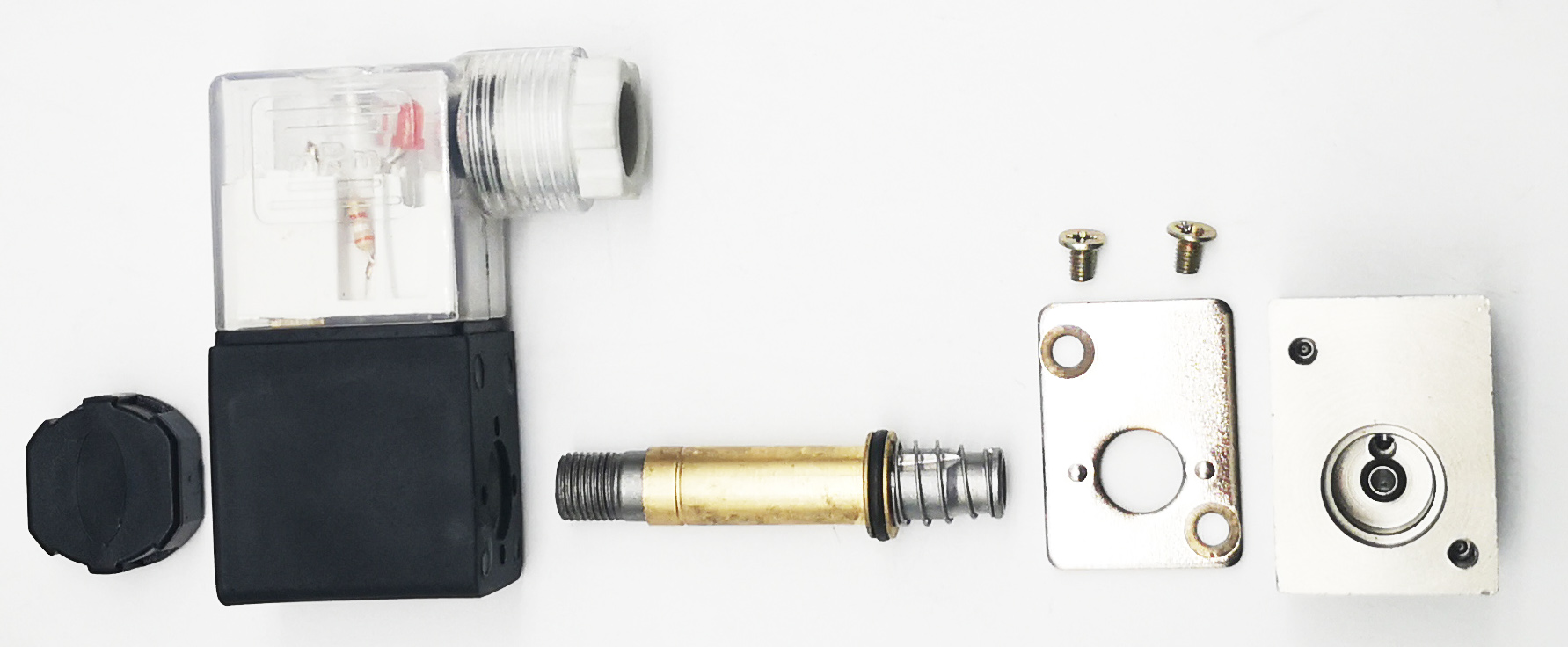

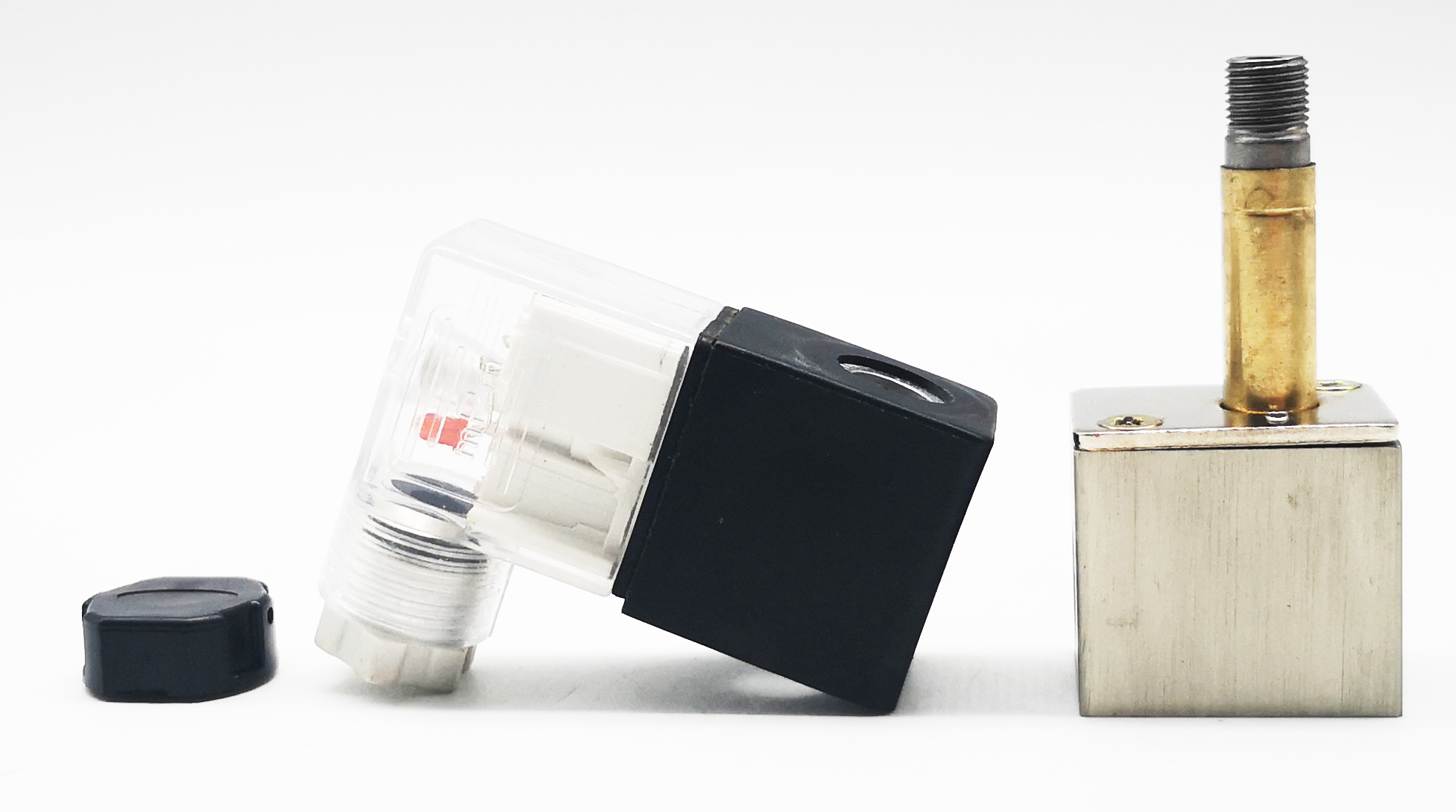

Disassembly display of Airtac Type 2V 2/2 Way Pneumatic Solenoid Valve:

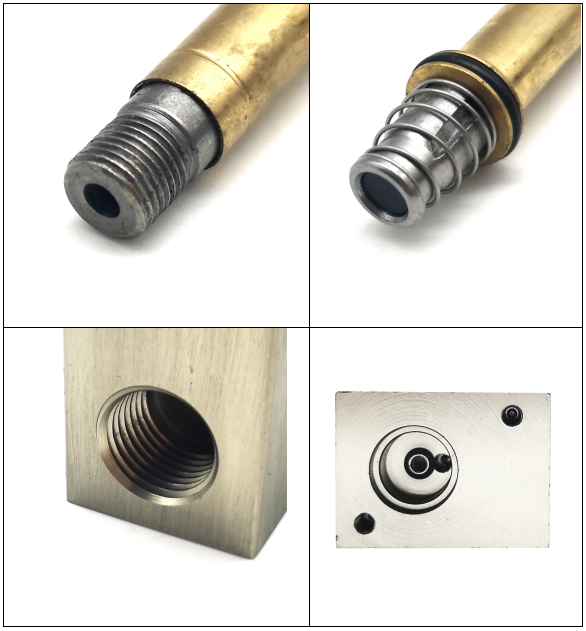

Details display of Airtac Type 2/2 Way Pneumatic Solenoid Valve:
Installation of 2V025-08 AIRTAC Type 2/2 Way Pneumatic Solenoid Valve:
To Connect the Valve Inlet & Outlet:
Connect the inlet & outlet to the valve ports according to the flow direction arrow marked on the valve.
To Install the Coil:
Put the coils on to the armature tube of the valve. Place the lock washer & nut on to the armature tube. Hand tighten the nut, then use a wrench to tighten the nut another quarter-turn. Do not over-tighten the nut, as it may cause the armature tube to fail prematurely.
To Connect a DIN Coil:
1. Remove the Philips-head screw from the plastic DIN housing & unplug it from the DIN coil
2. From the screw opening, push the terminal block out from the plastic DIN housing.
3. Note the “1”, “2”, and ground “⏚” symbols on the underside of the DIN enclosure.
4. For DC DIN Coils, connect “1” to your Positive Lead & “2” to your Negative lead.
5. For AC DIN Coils, connect “1” to your HOT lead, “2” to your Neutral lead, & “⏚” to your ground if required.
Do not energize the coil without installing it onto the valve or connect the coil to a different voltage than specified. This will burn the coil and could create fire hazards.
