DMF-Y-76S BFEC Submerged Pulse Jet Valve 3 Inch

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

According to the valve structure:
* Right Angle Type
* Submerged Type
* Quick Mount Type
* Straight Through Type
* Flanged Type

Technical data of BFEC Embedded Pulse Jet Valve:

Model number	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S
Port sizes	1''	1 1/2''	2''	2 1/2''	3''	4''
Membrane sizes (φ66 smaller)	φ96	φ112	φ160	φ188	φ202	φ255
CV values	30.53	53.47	71.47	150.85	186.66	313.09
Blowing area (m2)	8-10	12-16	18-28	27-38	37-65	70-90
Weight (kg)	0.75	1.2	2.35	3.2	4.05	5.65
Environment Temperature	-25℃ to +80℃
Relative Humidity	≤85%
Working Medium	Compressed Air
Protection Class	IP65
Voltage	24VDC, 24VAC, 110VAC, 220VAC

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Coil and Solenoid Valve Armature Assembly.

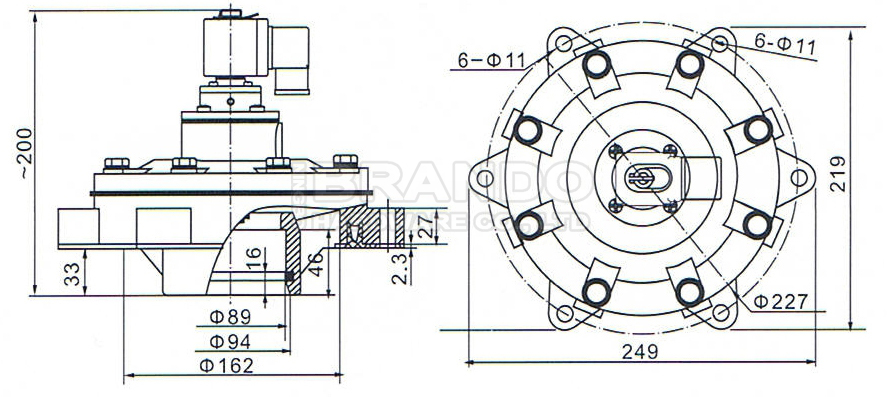

Main dimension of DMF-Y-76S BFEC Pulse Jet Valve:

DMF-Y-76S

List of All DMF Series BFEC Pulse Jet Valves:

Thread Valve	3/4''	1''	1.5''	2''	2.5''	3''	4''
Thread Valve	DMF-Z-20	DMF-Z-25	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-102S
Quick Mount Valve	3/4''	Inlet φ27	1''		1.5''
Quick Mount Valve	DMF-ZM-20	DMF-ZL-B	DMF-ZM-25		DMF-ZM-40S
Flange Valve	1''			1.5''
Flange Valve	DMF-ZF-25			DMF-ZF-40S
Embedded Valve	1''	1.5''	Outlet φ62mm	Outlet φ75	Outlet φ89	Outlet φ114	Outlet φ102
Embedded Valve	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S	DMF-Y-102SA

Brando Supply:

*SBFEC Type Pulse Jet Valve *Goyen Type Pulse Jet Valve *ASCO Type Pulse Jet Valve *Other Dust Collector Valve

*Solenoid Valve Coil *Solenoid Armature/Stem *Diaphragm Repair Kit *Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
