4V220-08

4V220-08 1/4'' Electro Pneumatic Solenoid Valve DC24V DC12V

4V220-08 is a 1/4'' Inlet, 1/4'' Outlet and 1/8'' Exhaust Port. 5 Way 2 Position (5/2 way) Double Electrical Control Light Solenoid Valve, the main features and advantages as follows:

1. Double-head solenoid valve with memory function, low power consumption.
2. It is made of aluminum and has a fine surface treatment. It has high durability and does not leak easily.
3. The handle shaft and valve body have low resistance and accurate positioning.
4. High-precision valve stem, sealed design, ensure closed.
5. Special technology of valve body hole, low resistance and long service life.

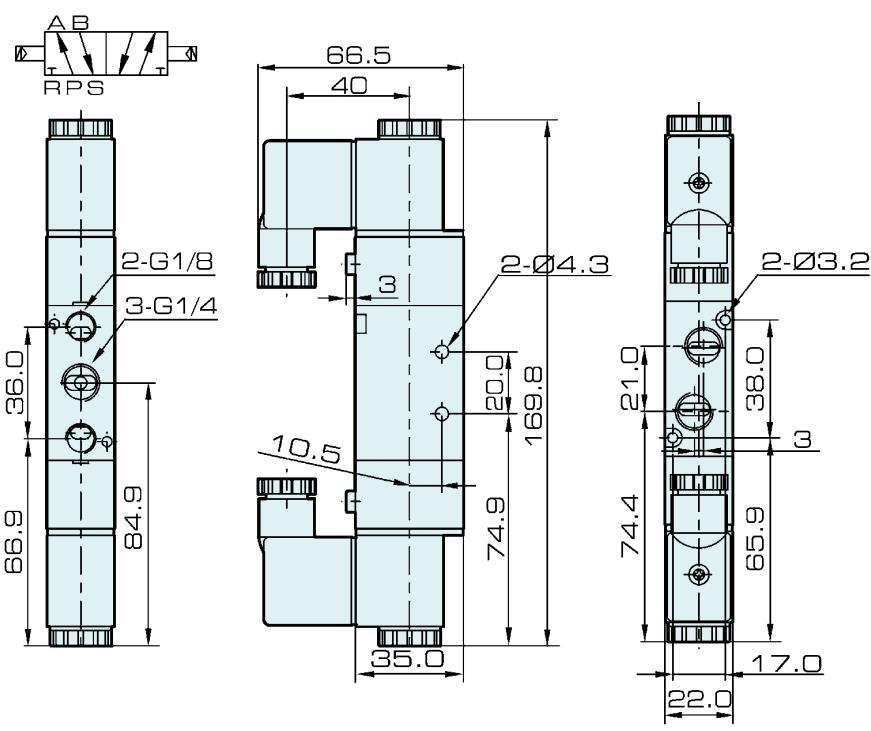

Overall dimension of 4V220-08 AirTac Type 5/2 Way Pneumatic Solenoid Valve:

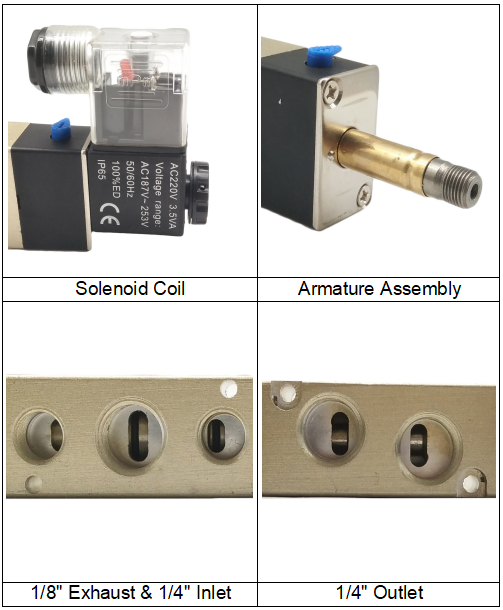

Part enlargement of 4V220-08 5/2 Way Pneumatic Solenoid Valve:

Specifications of 4V Series AirTAC Type Air Control Solenoid Valves:

Factory production process of 5/2 Way Pneumatic Solenoid Valve:

Features of 5/2 Way Pneumatic Solenoid Valve:
1. Pilot mode: internal pilot or external pilot.

2. Sliding column structure: good sealing and sensitive response.

3. The three-position solenoid valve has three central functions for you to choose from.

4. The dual-control solenoid valve has a memory function.

5. The inner hole adopts special processing technology, which has low friction and wear, low starting pressure and long service life.

6. It can form an integrated valve group with the base to save installation space.

7. Equipped with attached manual equipment to facilitate installation and commissioning.

8. Several standard voltage levels are optional.
