DMF-Y-76S Dust Collector Pulse Jet Valve SBFEC Type
DMF Series BFEC Pulse Jet Valve:
1. Right Angle Pulse Jet Valve: DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S
2. Quick Mount Pulse Jet Valve: DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-ZL-B
3. Immersion (Embedded) Pulse Jet Valve: DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-YA-76S, DMF-YB-76S, DMF-Y-102S, DMF-Y-102SA, DMF-Y-102SE
4. Flanged Pulse Jet Valve: DMF-ZF-25, DMF-ZF-40S
5. Straight Through Pulse Jet Valve: DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S

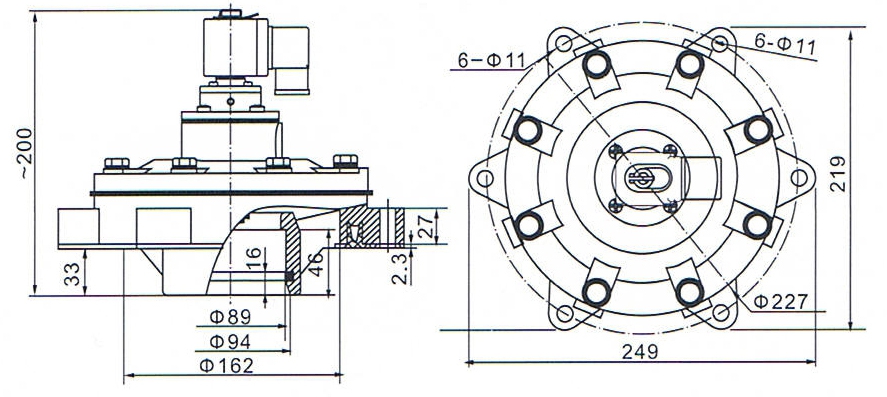

Main dimension of DMF-Y-76S Pulse Jet Valve:
Technical parameters of DMF Series BFEC Pulse Jet Valve:
|
Model number
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
|
Port sizes
|
G1''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
G4''
|
|
Membrane sizes
(φ66 smaller)
|
φ96
|
φ112
|
φ160
|
φ188
|
φ202
|
φ255
|
|
CV values
|
30.53
|
53.47
|
71.47
|
150.85
|
186.66
|
313.09
|
|
Blowing area
(m2)
|
8-10
|
12-16
|
18-28
|
27-38
|
37-65
|
70-90
|
|
Weight
(kg)
|
0.75
|
1.2
|
2.35
|
3.2
|
4.05
|
5.65
|
|
Environment Temperature
|
-25℃ to +80℃
|
|||||
|
Relative Humidity
|
≤85%
|
|||||
|
Working Medium
|
Clean Air
|
|||||
|
Protection Class
|
IP65
|
|||||
|
Service Life
|
Over one million times
|
|||||
|
Voltage
|
DC24V, AC24V, AC110V, AC220V
|
|||||
List of All DMF Series BFEC Pulse Jet Valve:
|
Right Angle Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flanged Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Immersion Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
Brando Supply:
*SBFEC Type Pulse Jet Valve *Goyen Type Pulse Jet Valve *ASCO Type Pulse Jet Valve *Other Dust Collector Valve
*Solenoid Valve Coil *Solenoid Armature/Stem *Diaphragm Repair Kit *Pulse Controller
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
