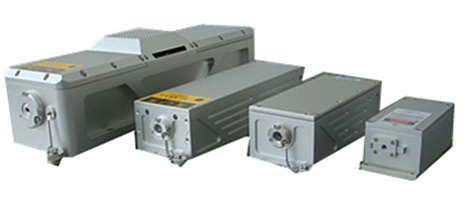

1064nm High Energy Laser

1064nm Diode Pumped High Energy Laser is made features of high single pulse energy, short pulse duration，and high peak power，which is widely used in PIV, LIF, LIBS, ICP MS scientific research, laser processing, military, and so on.

High energy laser includes lamp pumped (LPS series) and diode pumped (DPS series) lasers. It is widely used in medical, scientific research, material processing and industrial applications. Available with 266 nm, 355 nm, 532 nm, 1064 nm, 1573 nm, etc... The single pulsed energy of 532 nm green laser can be up to 450 mJ and the energy of 1064 nm infrared laser can be up to 20 J.

Model	Single Pulsed Energy(mJ)	Rep.rate(Hz)	Pulsed Duration(ns)	Coolded Method	Datasheet
EO-1064-G M²<1.2	0.5-1	1Hz-25 kHz	<15	Air cooled
EO-1064-H M²<1.5	1-2	1-10 k	<10	Conduction/ Air cooled
EO-1064-N	1-3.5	1Hz-25 kHz	<13	Air cooled
DPS-1064-PS M²<1.3	30-150 uJ	0-1000	<15 ps	Water cooled
DPS-1064-H M²<1.5	1-30	1-1000 (<200kHz optional)	<5	Water cooled
DPS-1064-D	0.5-2	1-100	<10	Air cooled
DPS-1064-E Narrow pulse width	3-8	1-50	<4	Conduction/ Air cooled
DPS-1064-P-Mini	6	10/ 20 EXT (adjustable)	3±1	Conduction cooled
DPS-1064-A	1-10	1-10	~10	Air cooled
DPS-1064-B	10-30	1-10	<10	Air cooled
DPS-1064-BS-D	30-100	1-20	<10	Air cooled
DPS-1064-Q High rep.rate	5-40	1000	~12	Water cooled
DPS-1064-J  Harsh condition	1-40	1-20	~10	Air cooled
LPS-1064-A	50-200	1-10	~10	Water to air cooled
LPS-1064-S	50-300	1-10 (<20Hz optional)	~10	Water cooled
LPS-1064-L	350-1000	1-10 (<20Hz optional)	~10	Water cooled
LPS-1064-M Long pulse	1 J-10 J	1-20	0.1-20 ms	Water cooled

Measurement Data

Energy 10.5 J	Pulse duration 10.5 ns
