Single Mode Fiber Coupled Led
5 year ago
375nm to 940nm Multimode wavelength LED are designed for microscopy and other applications that require multiple color channels.The LED current of each channel can be adjusted independently or modulated via an external voltage.The multi-wavelength LED system offer a compact housing with a backlit, easy-to-read LCD display. They are operated via the buttons on the front panel.
CNI also provide the fiber couled laser module, fiber coupled laser system and Multi-wavelength fiber coupled Laser.
Features:
- UV, Visible, and NIR Versions (from 375nm to 1550nm)
- The SMA connector is ideal for multimode fiber.
- Multi-wavelength fiber coupled LED available.
Spectifications
| Model | Color |
Nominal Wavelength (nm) |
Bandwidth FWHM (nm) | Typical Φ600um Core Fiber Output Power SMA (mW) | Maximum Current CW (mA) | Forward Voltage (V) | Typical Lifetime (h) |
| LFM375 |
UV |
375 | 9 | 3.0 | 1400 | 3.6 | ~10000 |
| LFM395 | UV | 395 | 16 | 1.0 | 500 | 4.5 | ~10000 |
| LFM405 | UV | 405 | 12 | 4.2 | 1400 | 3.45 | ~10000 |
| LFM430 | Violet | 430 | 15 | 1.0 | 500 | 3.8 | ~10000 |
| LFM460 | Royal Blue | 460 | 25 | 6.0 | 1000 | 3.6 | ~10000 |
| LFM470 | Blue | 470 | 25 | 3.2 | 1000 | 3.2 | ~10000 |
| LFM500 | Cyan | 500 | 30 | 2.2 | 1000 | 3.3 | ~10000 |
| LFM530 | Green | 530 | 33 | 3.0 | 1000 | 3.2 | ~10000 |
| LFM565 | Lime | 565 | 104 | 3.0 | 1000 | 3.1 | ~10000 |
| LFM600 | Amber | 600 | 15 | 1.2 | 1000 | 2.6 | ~10000 |
| LFM620 | Red | 620 | 18 | 5.5 | 1000 | 2.2 | ~10000 |
| LFM625 | Red | 625 | 17 | 3.0 | 1000 | 2.2 | ~10000 |
| LFM660 | Deep Red | 660 | 20 | 4.0 | 1200 | 2.6 | ~10000 |
| LFM730 | Far Red | 730 | 37 | 1.5 | 1000 | 2.3 | ~10000 |
| LFM808 | IR | 808 | 25 | 2.5 | 500 | 3.6 | ~10000 |
| LFM850 | IR | 850 | 30 | 3.0 | 1500 | 3.85 | ~10000 |
| LFM880 | IR | 880 | 50 | 1.0 | 1000 | 1.7 | ~10000 |
| LFM940 | IR | 940 | 37 | 3.0 | 1000 | 2.75 | ~10000 |
| LFM1050 | IR | 1050 | 37 | 2.0 | 600 | 1.4 | ~10000 |
| LFM1550 | IR | 1550 | 102 | 1.0 | 700 | 1.1 | ~10000 |
1. The above testing data are only for reference, the actual spectrum of LED may change since the temperature or other parameters are
different when operating the current.
2.The above data was tested by 600μm core diameter, 0.22 NA multimode fibers. Other core diameter fibers are available on request.

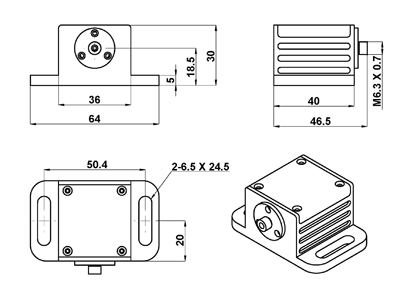

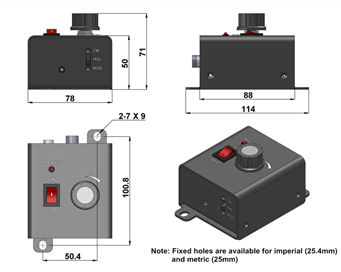

Dimension
