line laser source

• Line Lasers for Roads, Railways, Tunnels and High-speed Rail Detection

  For road detection and railway detection, tunnel detection and high-speed rail detection and other engineering detection, CNI can provide 808nm, 915nm (available for other wavelength) line laser, the line width can be provided for 1mm, 2mm and special custom requirements.

 Features: High stability to adapt to various environments, compact and easy to integrate into a variety of equipments.

• Line Laser Module for Machine Vision

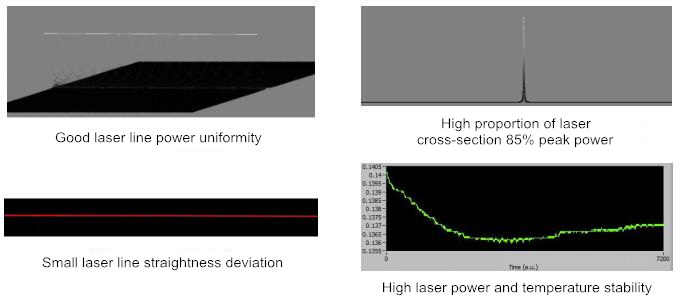

  CNI provide line laser solution for machine vision, with precision fringes, uniform power distribution, clear edges. The luminance uniformity can be up to 85%, power stability less than 0.5% and straightness error less than 0.1%. The fan angle is available for 7°, 10°, 15°, 30°, 45°, 60°, 75°, 90°.

  Features: Good line uniformity, focus adjustable function available, lens with continuously adjustable line width can be customized on request.

• Fiber Coupled Line Lasers for Long Distance Transmission

  For long distance transmission fiber laser, CNI can also provide line lasers, which can realize the green, blue, red and near infrared laser line generation, with generating line angle of 30°, 60 °, 75°, 90°. Moreover, it can also be customized according to customer's special requirements.

  Features: Good line uniformity, lens with continuously adjustable line width can be customized according to customer needs.
