Product details

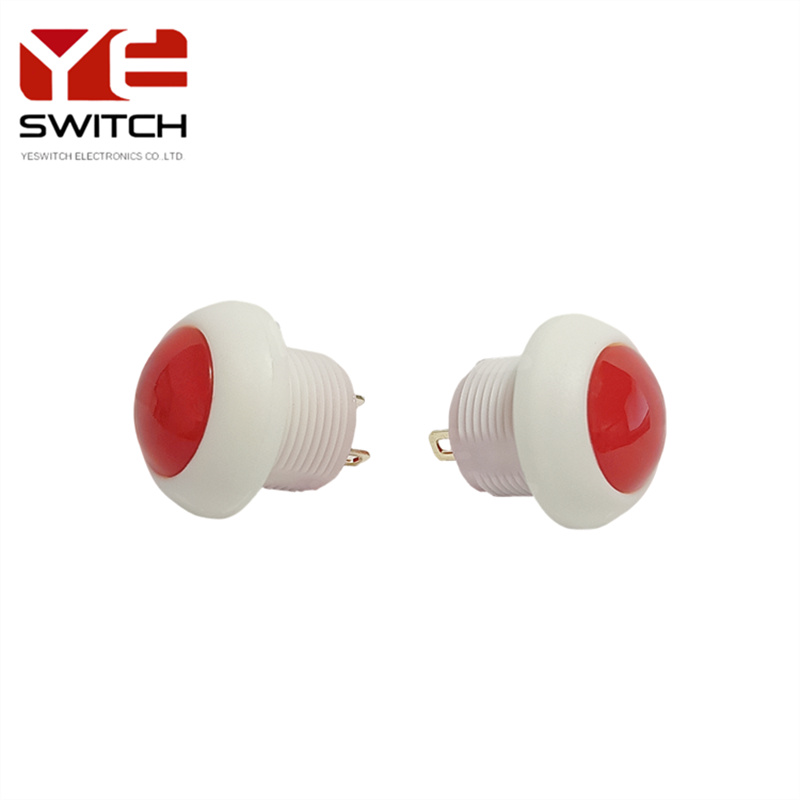

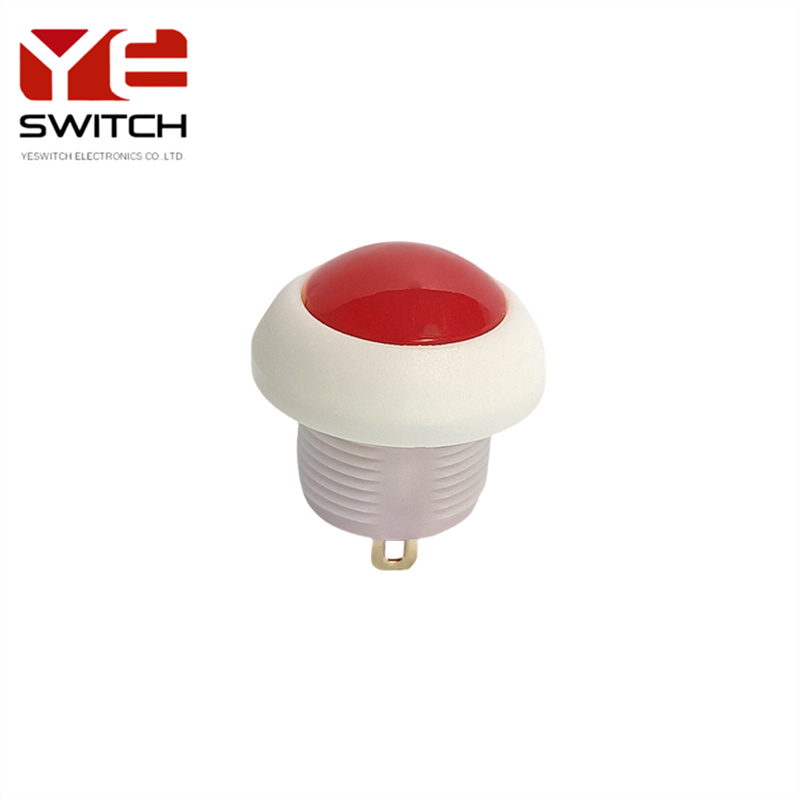

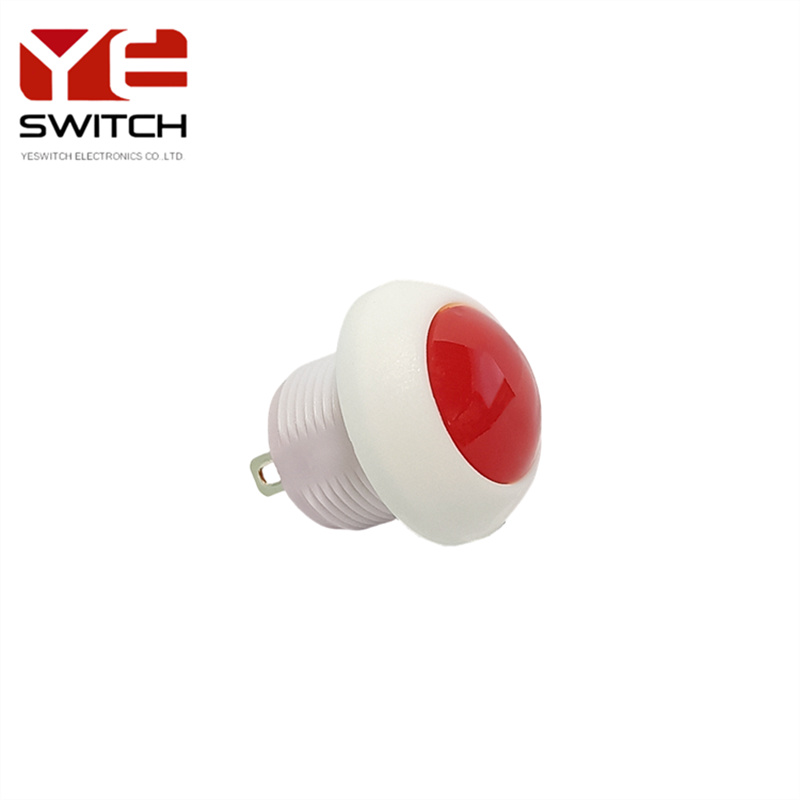

YESWITCH 12mm Momentary White Waterproof Push Button Switch

The YESWITCH 12mm PF series push button switch has two colors to choose from.One is white and the other is black.Whether it is in terms of appearance or texture, the push button switches are very durable.The pushbutton switches waterproof level reaches IP68,which means that it can be used even underwater.

Moreover, the electrical life of the push button switch reaches 500,000 cycles and the mechanical life reaches 1 million cycles.The push button switch can work normally in an environment of -30 to 80 degrees.

The push button switch also has a very practical function of momentary ON-(OFF),which can be restored to its original state with just a light press.

The momentary push button switch also has many optional shapes of buttons,such as the round shape,high head and flat head,which can be selected according to your needs.

There are also many colors of buttons to choose from,such as red,blue,green,yellow,black,white, etc.,everything is available.

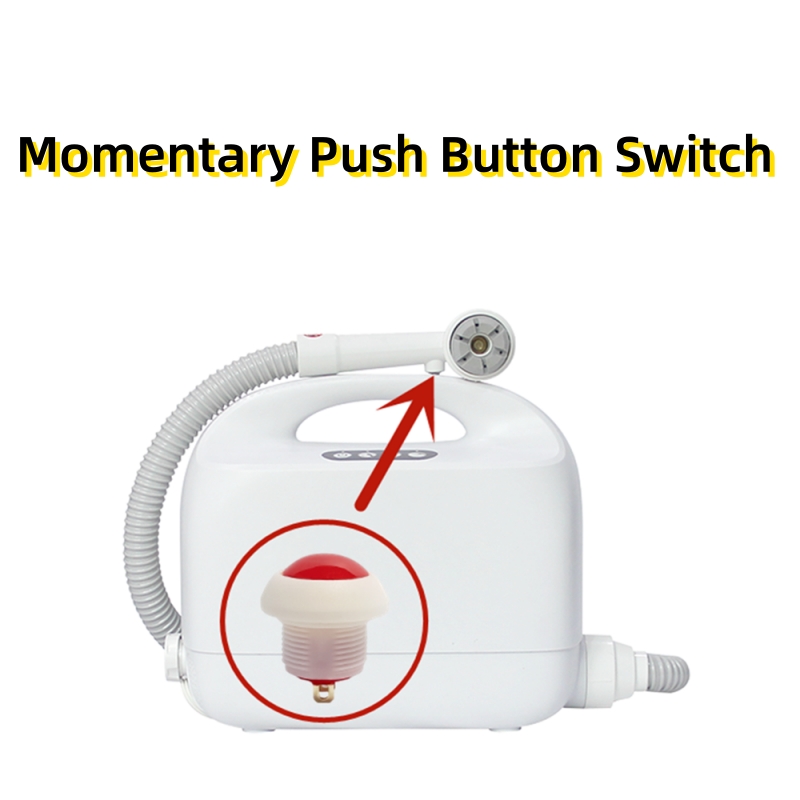

The push button switch is widely used in medical equipment,mobility scooters,smart bathroom machines and other fields. Interested friends must not miss it!

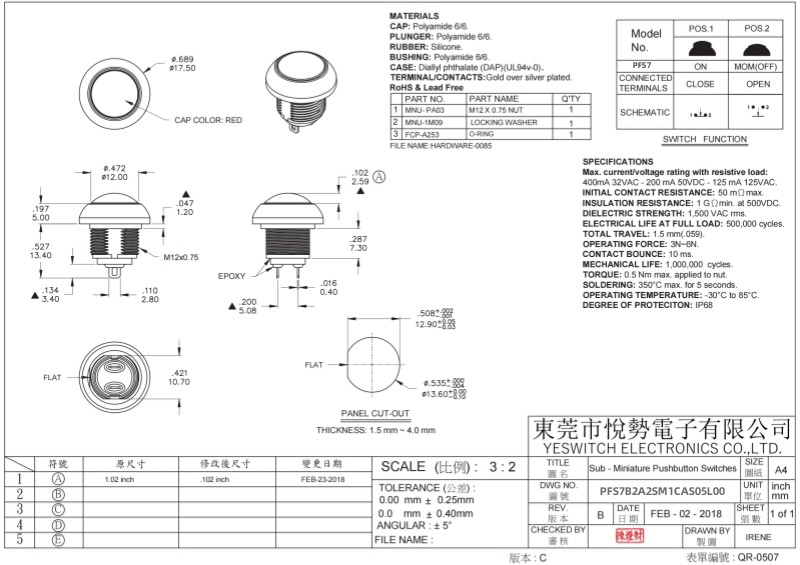

SPECIFICATIONS

Max.current/voltage rating with resistive load:400mA 32VAC;200 mA 50VDC;125 mA 125VAC
INITIAL CONTACT RESISTANCE: 50 m ohm max.
INSULATION RESISTANCE: 1 G ohm min. at 500VDC.
DIELECTRIC STRENGTH: 1,500 VAC rms.
ELECTRICAL LIFE AT FULL LOAD: 500,000 cycles
TOTAL TRAVEL: 1.5 mm(.059)
OPERATING FORCE: 3N~6N.
CONTACT BOUNCE: 10 ms
MECHANICAL LIFE: 1,000,000 cycles.

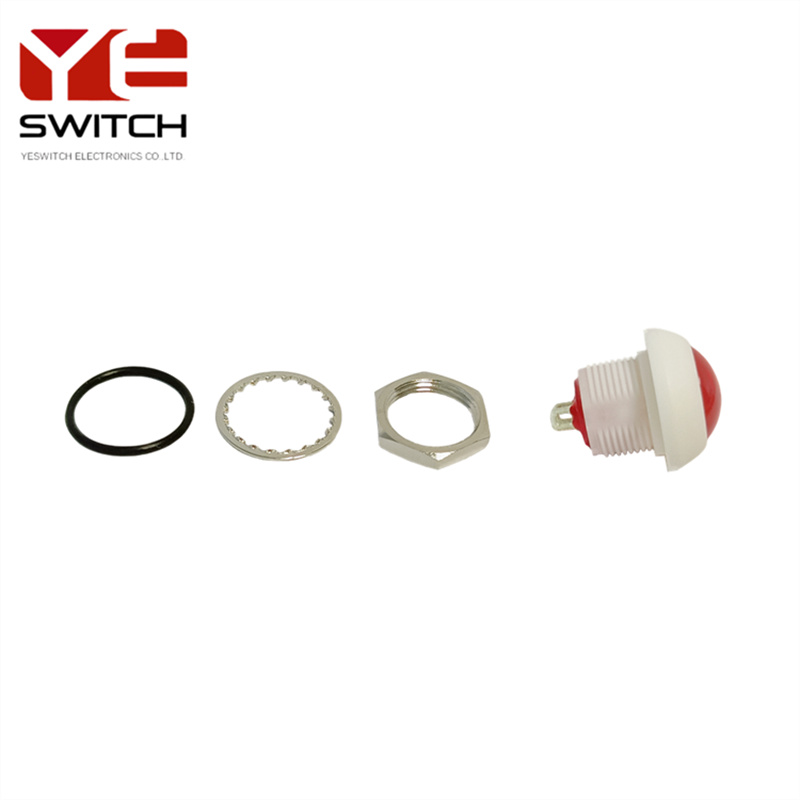

TORQUE: 0.5 Nm max. applied to nut.
SOLDERING: 350 Degrees max. for 5 seconds
OPERATING TEMPERATURE: -30 to 85 Degree
CDEGREE OF PROTECITON:IP68

MATERIALS

CAP: Polyamide 6/6.
PLUNGER: Polyamide 6/6.
RUBBER: Silicone.
BUSHING: Polyamide 6/6.
CASE: Diallyl phthalate(DAP)(UL94v-0).
TERMINAL/CONTACTS:Gold over silver plated.
