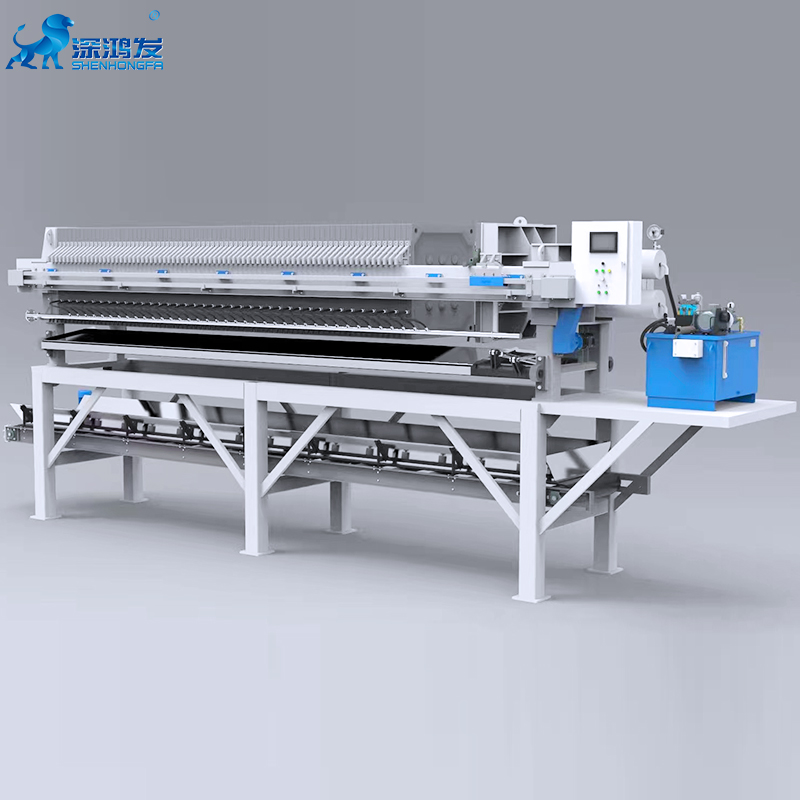

The Chamber Filter Press Filtering for Clay

    The chamber filter press and the plate and frame filter press have some similarities,but the difference is that filter plate of the chamber filter press  is an independent filter plate, unlike the plate frame with a frame and a plate. The process of the chamber filter press is to press the gap between the two plates after the formation of the filter chamber, which is filtered through the filter cloth by the high pressure sewage pump.The chamber filter press is usually widely used for mining wastewater treatment, food wastewater treatment, industrial wastewater treatment, but also often used for material water filtration treatment. The main structure of the chamber filter press is relatively simple, the model durable operation is relatively simple, the filter quantity is large.

Main components of filter press:

> Frame:            The steel frame acts as a clamping device for the filter plates.

> Filter Plates:   A filter cake forms in the chambers between filter plates.

> Filter Cloth:     A cloth filter that is attached to both sides of a filter plate. Solids build up on cloth to form a filter cake, separating liquids from solids.

Types of Filter Press according to:

> Closing mode:  manual, gear drive, hydraulic;

> Filtrate flow:   open flow, close flow, cake washing, non-cake washing, center feeding, corner feeding,etc..

> Filter plate structure:  recessed plate, plate &frame, diaphragm squeeze (membrane) plate;

> Filter plate material:  PP, rubber, cast iron, stainless steel;

> Filter Plate size:  320, 450, 630, 800,1000, 1250, 1500, 2000

Working principle of Chamber Filter Press:

• 1.  Slurry is pumped into the filter press. The solids are distributed evenly on the filter cloths during the feed (fill) cycle.
• 2.  Solids begin to build on the filter cloth, trapping the ensuing particles and building a filter cake. The filter cake acts as a depth filter for solid/liquid separation. Filtrate exits the plates through the corner ports into the manifold.
• 3.  When the correct valves in the manifold are open, the filtrate exits the press through the filtrate outlet. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of filter cake.
• 4.  Once the chambers are full, the fill cycle is complete and the filter press is ready to be emptied.

Why choose Shen HongFa Filter Press

We have professional team in sludge filteration which have many research staffs who have devoted themselves to the industry for more than 20 years, and our High-Efficiency Circular Filter Press for Sludge, saled all over the world.

1),Long history : our factory established in 2014,and we are the leading enterprise in filter press industry .

2),we are one of the main constitutor of press filter regulations.

3),we are a professional team which have many research staffs who have devoted themselves to the industry for more than 20 years.

4),We offer different material's filter plate according to different industry , while other providers couldn't make it .

5), Our products are sold to many companies which most of them are top500 .

6),We manufacture the filter plate ourselves , so we could guarantee its quality ,while other providers buy it from others

FAQ:
1. How to buy your interested products?
You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project
2. How to pay?
L/C or T/T are acceptable.Usually, 50% payment in advance, 50% payment before delivery.
3. What is the delivery time?
It depends on order quantities. Generally speaking, the delivery time will be within 1 months.
4. How to pack the products?
We use standard export package.If you have special package requirements, we will pack as you required, but the fees will be paid by customers.
5. How to install after the equipment arriving destination?
We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
6. How long is the validity?
The validity is 12 months after installation
