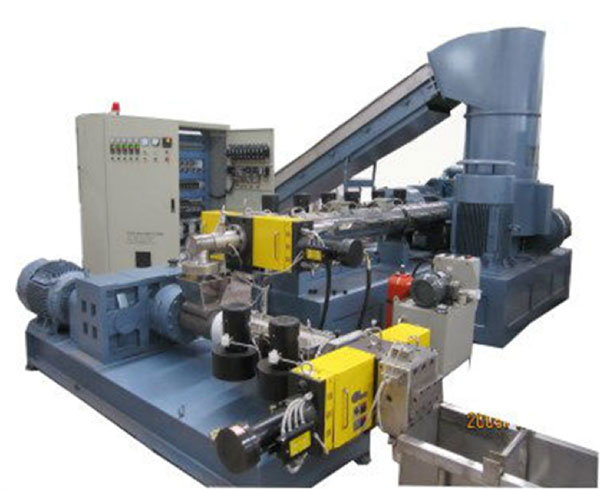

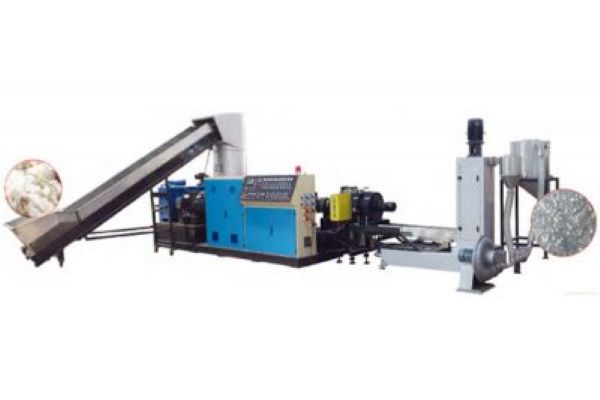

Agglomerate Type Pelletizing Line

Agglomerate type pelletizing line is mainly applied to recycle PP, PE, BOPP, BOPET, BOPA, PA66 etc. dry film.
The unit consists of loading device, agglomerator，extruder, die head, screen exchanger, vibrating sieve, dewatering machine. the machine capacity can choose is 100-1000kg per hour.

Realted Machine：

1.PP PE film/woven bag

2.PP PE film washing line

The recycling process and machine details:

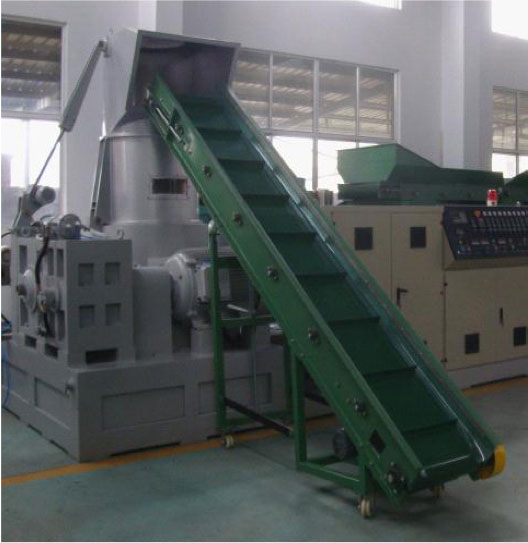

1.Belt conveyor

Function :

to load plastic film into the agglomerator

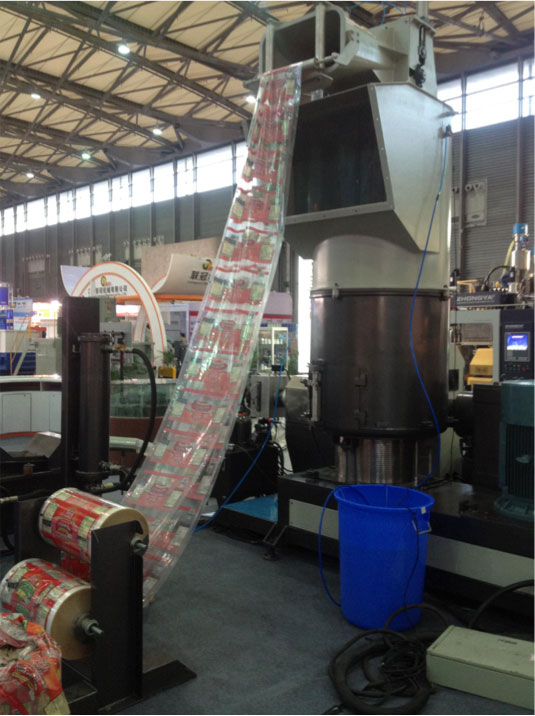

film roll feeding device
function:
to feed the plastic roll film

2.Agglomerator

Function :

this device is applied to crusher and plastize the plastic film or woven bag.

Function :

melt plastic and exhaust waste air with degassing zones.

double stage can get more good quality final granules

4.Screen Exchanger

Function :

Filter out impurities

5.Die Head

Function :

Form plasticized plastic to a particular shape for follow-up process.

6.Pellet Cutting Machine

Water-ring type Cutting Device
Function :
Cut material out from die head to regular shape. Rinse to cool and shape up.

strand type cutting Device
Function:
Cut noodles to get regular plastic pellets.

7.Dewatering Machine

Water-ring type Cutting Device
Function :

Remove water by centrifugal force

8.Vibrating Sieve Air Blower And Silo
