20-50 PVC 2 cavity lconduit pipe making machine
4 year ago
PVC 4 output pipe making machine
Pipe diameter range(mm): 16-32mm
Extruder Motor powder(kw): 37kw
Output(kg/h):150-250(kg/h)
Total length: 25m
Wall thickness: by required
PVC 4 output pipe making machine description

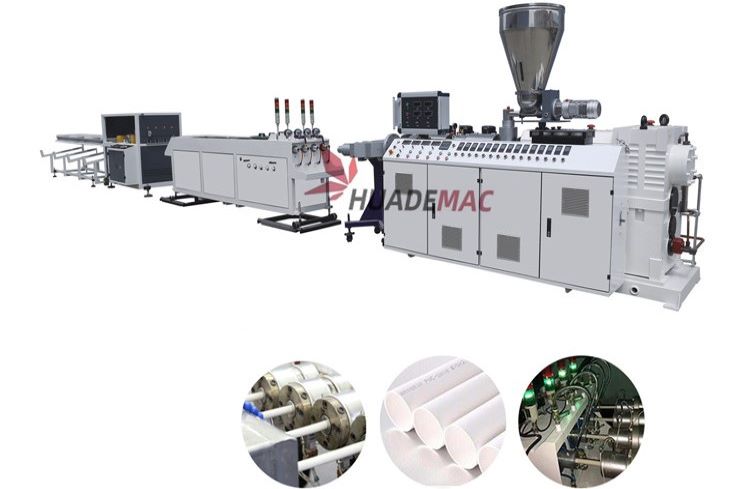

Φ16-32mm PVC pipe extrusion line
PVC pipe manufacture machine can be used in the area of cable pavement pipes production. Whole line consists of conical twin screw extruder, four cavity mould, vacuum calibration cooling tank, haul-off, cutter, tripping table /belling machine,etc. And PVC pipe manufacture machine can be equipped with PLC control, ink-jet/laser printer, crusher, shredder, Pulverizer ,water chiller, air compressor etc.
Process Flow:
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical twin screw extruder → Mould → Vacuum Calibration Cooling Tank → Haul-off and cutting unit → Belling machine/ Stacker → Final Product Inspecting & Packing
CHARACTERISTICS and APPLICATIONS
Four station haul-off：up-down two caterpillar tracking
Drawing speed：1-10m/min
Drawing forth：6000N
PVC 4 output pipe making machine photos
Extruder
Extruder is one of the types of plastic machinery, originated in the 18th century.
According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die.

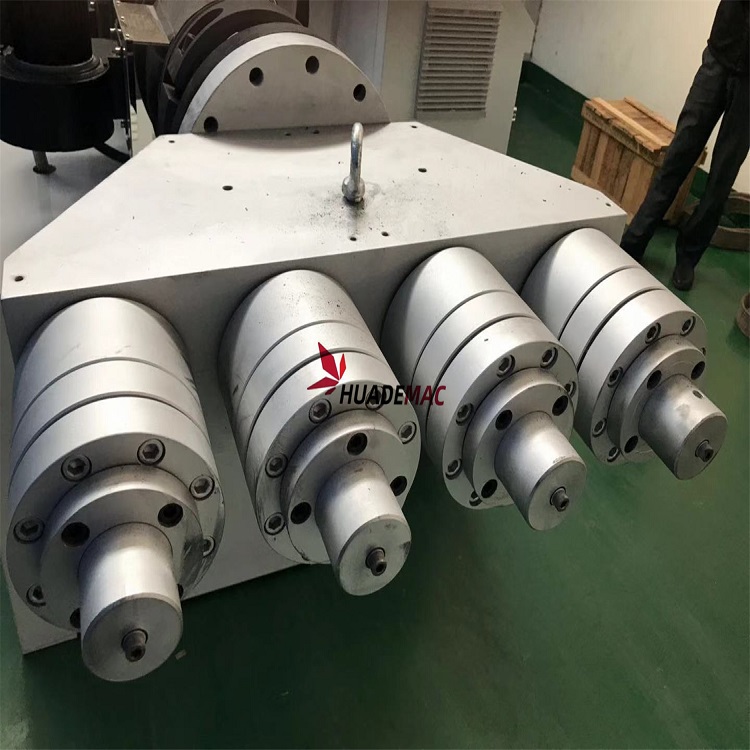

Die-head

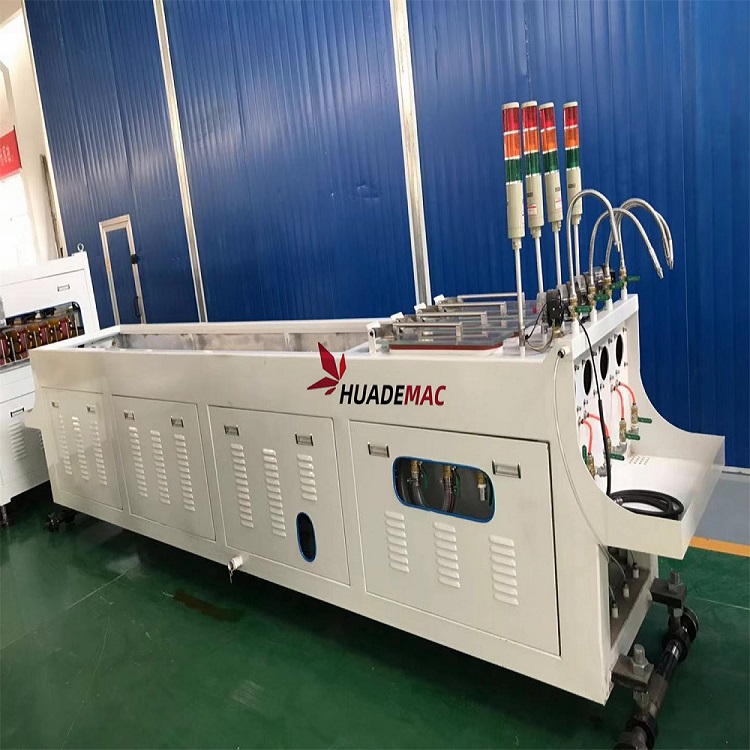

Vacuum Calibrating
Tank materials: 304 S. S.Materials
Water temperature and level controlling technology;

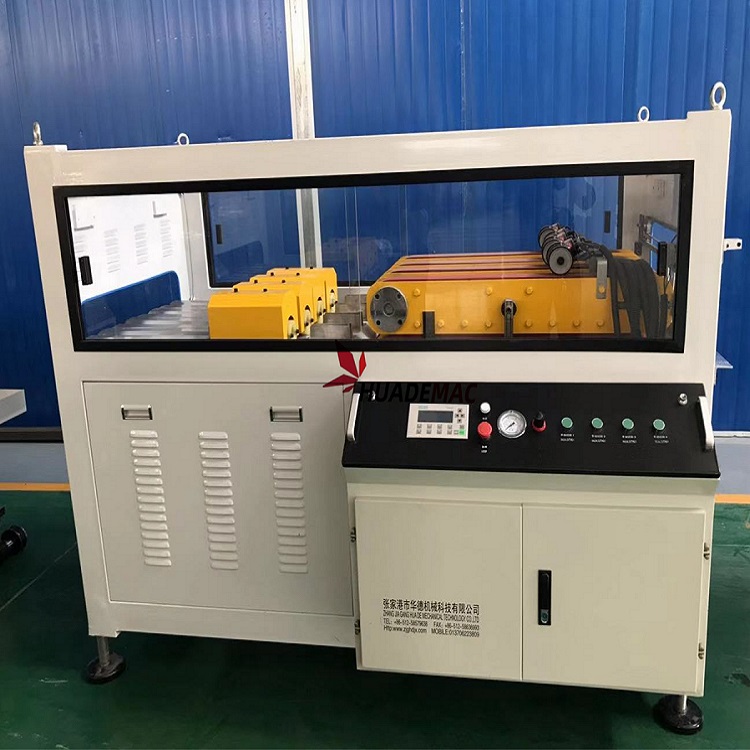

Haul-off & Cutter
Cutting method: Manual/Automatic
Cutting length: Measured by encoder or travelling switch
Up & Down Clamping: Pneumatic
Frame structure: beautiful appearance, safe operation
Stacker
The height is adjustable
Stainless steel 304 as touching material
Discharge driving by air cylinder
Packaging of PVC 4 output making machine
Exhibition of PVC 4 Output making machine
