16-63mm 2 pipe production line
4 year ago
Dual PVC electrical conduit pipe making machine
Machine features
one mould 2 cavity pvc pipe extruder line can be used to prodcuce 2 pipes at one time to improve the production efficiency. machine capacity can easily reach 3.5-4ton per day. Producing speed can reach 8-10m/min when doing pipe diameter 16mm.|
suitable pipe diameter
|
16-63mm
|
|
traction machine
|
2 drawer fluctuation traction (caterpillar)
|
|
traction speed
|
1-10m/min
|
|
traction force
|
6000
|
Process Flow:
Screw Loader for Mixer→ Mixer unit→ Screw Loader for Extruder→ Conical twin screw extruder → Mould → Vacuum Calibration Cooling Tank → Haul-off and cutting unit → Belling machine/ Stacker → Final Product Inspecting & Packing
CHARACTERISTICS and APPLICATIONS
Four station haul-off：up-down two caterpillar tracking
Drawing speed：1-10m/min
Drawing forth：6000N

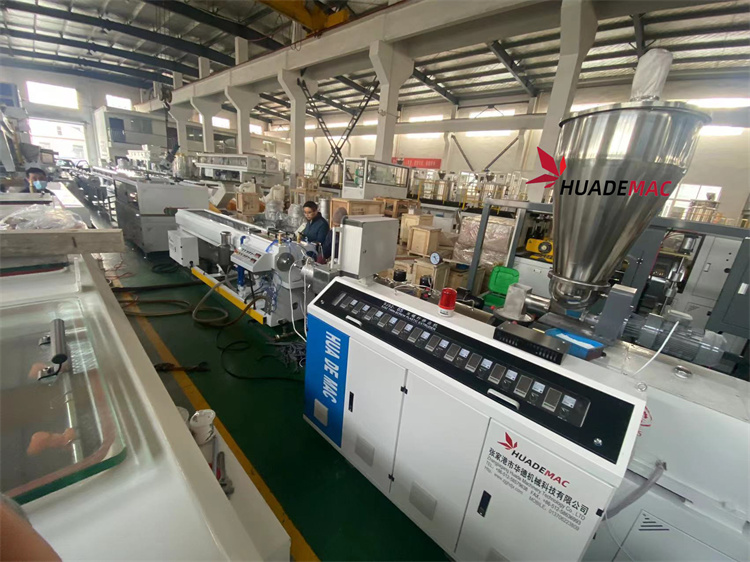

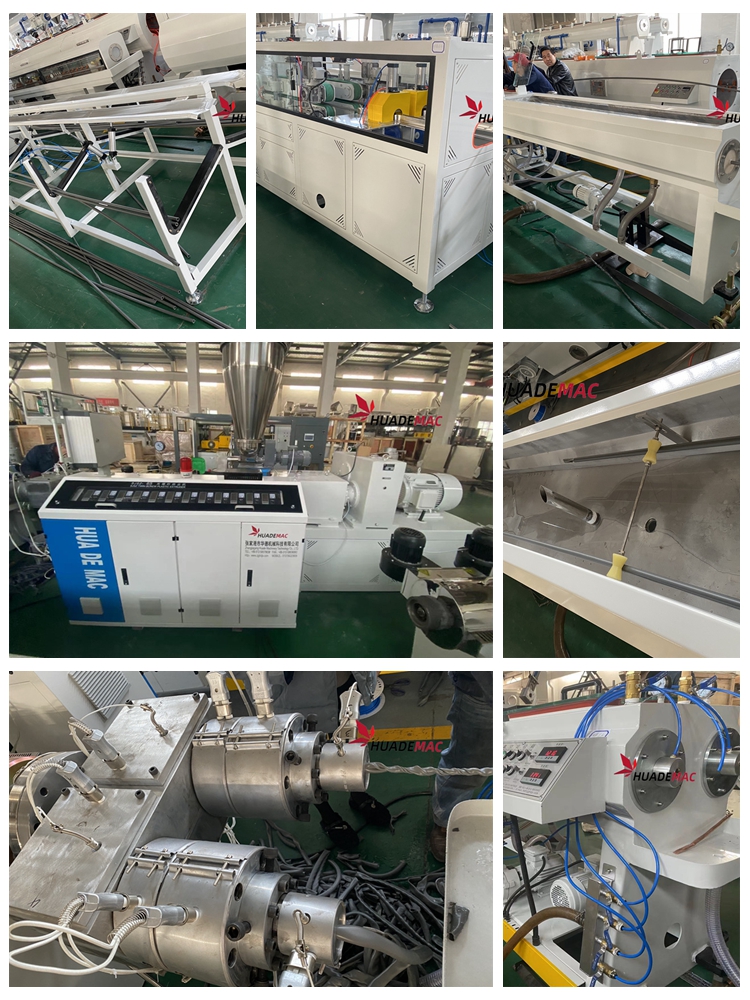

PVC four cavity pipe extruding making machine photos

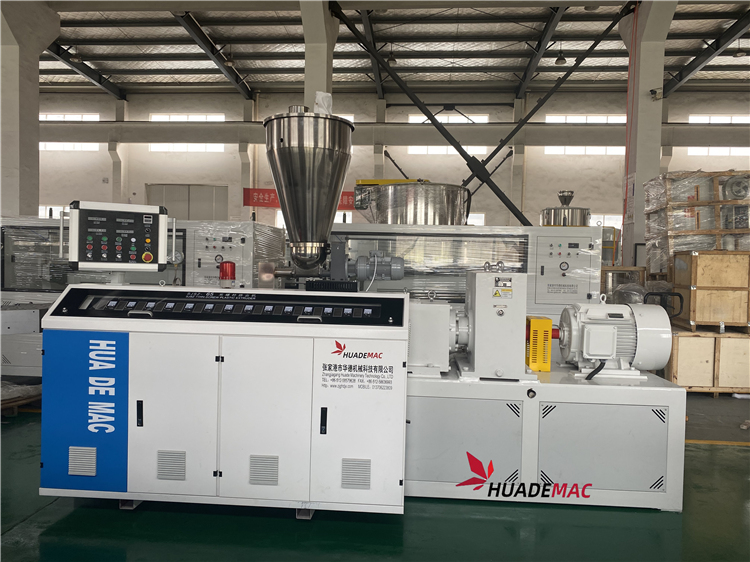

Extruder
Extruder is one of the types of plastic machinery, originated in the 18th century.
According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die.
Die-head
Vacuum Calibrating
Tank materials: 304 S. S.Materials
Water temperature and level controlling technology;
Haul-off & Cutter
Cutting method: Manual/Automatic
Cutting length: Measured by encoder or travelling switch
Up & Down Clamping: Pneumatic
Frame structure: beautiful appearance, safe operation
Stacker
The height is adjustable
Stainless steel 304 as touching material
Discharge driving by air cylinder
