1. Brand:Sunket
2. Power(Pmax): 270Wp
3. Dimension: 1640x992x40 mm
4. Working Voltage(Voc): 38.1V
5. Working Current(Imp):9.32A
6. Weight: 20 kg
SUNKET Solar System
4 year ago
Product details

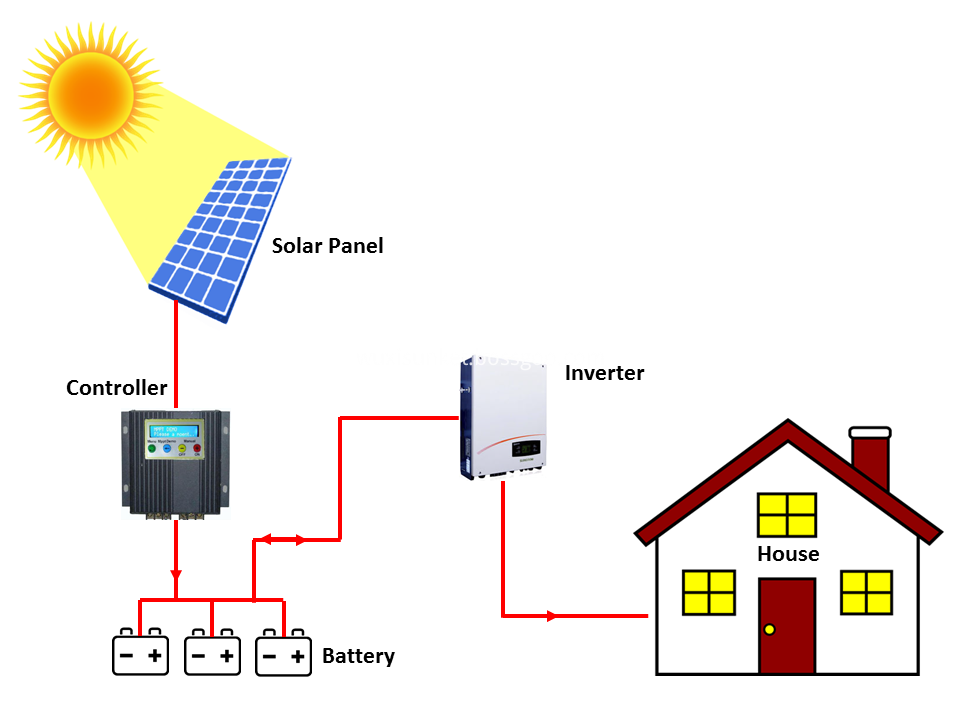

Our off grid system
1kw to10kw Complete Off Grid Home Power Solar System with solar cell Solar Panel and battery backup energy systems
Our off-grid solar packages come with everything you need to build your own personal power plant, right on your property. You're in control – no more monthly bills and no utility company to answer to. Just 100% clean, renewable energy from a system you designed yourself.
Product Introduction
Here's the list of key components:
|
Components
|
Description
|
Quantity
|
Unit
|
|
Solar panel
|
270w
|
4
|
pcs
|
|
MC4 Y Branch
|
MC4 2-1
|
2
|
SETS
|
|
Bracket
|
1kw
|
1
|
SET
|
|
Inverter with controller built-in
|
1kw
|
1
|
SET
|
|
GEL Battery
|
120AH
|
4
|
pcs
|
|
DC Cable
|
|
100
|
Meters
|
|
PV Connector
|
f&m
|
10
|
Pair
|
Poly Solar Panels ( Mono Optional)
Inverter with controller built-in
1. Built-in 50A MPPT controller.
2. Support grid/Diesel Input
3. Pure sine wave, power frequency output.
4. AC output:100/110/220/230VAC
5. 50/60HZ(optional)
Lead Acid GEL Battery
Capacity(kWh): 2.4
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 120
Depth of Discharge: 70%
Bracket
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Product Packing
About Us
Contact Us
Welcome to contact with us at any time
Contact: Jay
Email: jane(at)sunket.cn
Tel: +86-510-68005868 Fax: +86-510-68005787
Mob /WhatsApp/WeChat: +86 13861725318
Web: www.sunket.cn
