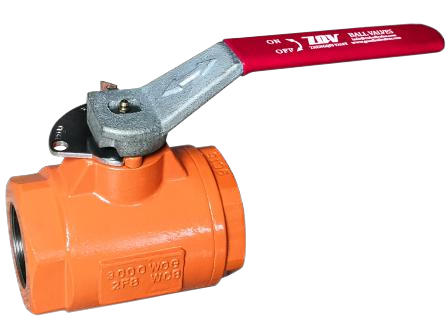

Carbon Steel Oilfield Floating Ball Vaves are Quality Economical Valves which built for Extreme Oilfield Service. ZQV Oilfiled ball valves size range from 1''2''3''4'', both full port and reduce port

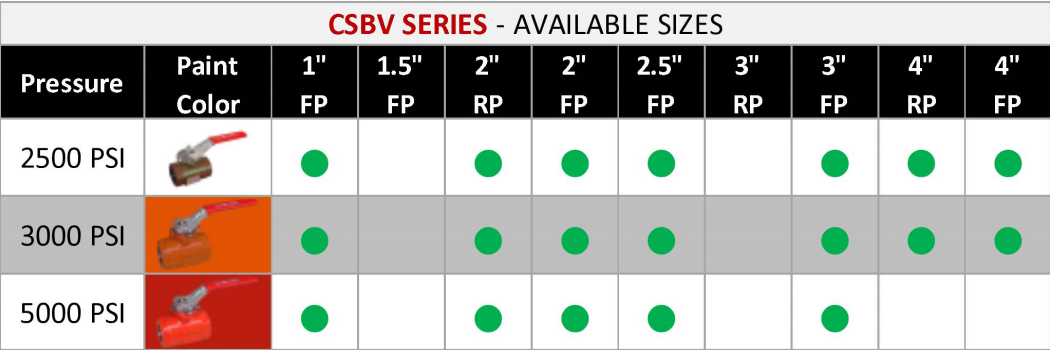

Fig. CSBV 3000PSI 5000PSI
Specification:
1" 2"3"4''- Design: 2 Piece WCB body
- Inspection and test standards: API 598
- Pressure: 1000PSI1500PSI2000PSI3000PSI 5000PSI
- Working temperature: -28 ℃-120℃
- Seat Ring: Delrin(3000PSI)/PEEK(5000PSI)
- Body / Bonnet: WCB
- Ball: Stainless Steel 316 / 304/SS420
- Stem: Steel 316 / 304/ SS410/SS420
- Blow-out-proof stem
- Operation: Manual
- Suitable Medium: Water, Gas, Oil, et
- Nace MR-01-75-2009 Compliant
-
Heavy Duty Locking Device
- Blow-out Proof Stem
- Double O-Ring Stem Seal
- Grease Fitting for Constant Lubrication and Protection Against Corrosion and Moisture
|

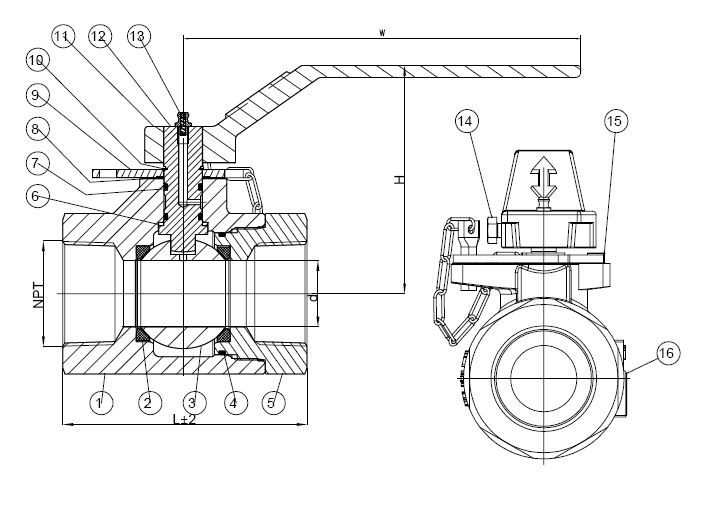

No |
Part # | Material |
| 1 | Body | A216 WCB |
| 2 | Seat | Delrin |
| 3 | Ball | SS304 |
| 4 | Seal O-ring | HNBR |
| 5 | Cap | A216 WCB |
| 6 | Thrust Bearing | PTFE |
| 7 | Stem O-ring | HNBR |
| 8 | Thrust Bearing | PTFE |
| 9 | Stop Plate | Steel |
| 10 | Retainer Ring | Steel |
| 11 | Handle | Ductile Iron |
| 12 | Stem | A276 420 |
| 13 | Grease Zerw | Copper |
| 14 | Bolt | Carbon Steel |
| 15 | Stop Pin | Steel |
| 16 | Nameplates | Aluminum |
NOTE: We reserve the right to change materials and specifications.
Unit：mm(inch)
| Part# | Size | Pressure | Weight(LBS) | L | H | d | D |
| CSBV1FP-3000 | 1''x1'' | 3000PSI |
2.15(4.67) |
102(4.02) | 93(3.66) | 25(1.00) | 11.5NPT |
| CSBV15FP-3000 | 1-1/2''x1-1/2'' | 3000PSI | 6.05(13.15) | 140(5.51) | 134(5.28) | 38(1.5) | 11.5NPT |
| CSBV2FP-3000 | 2''x2'' | 3000PSI | 8.46(18.39) | 152(5.98) | 150(5.91) | 50(2.00) | 11.5NPT |
| CSBV3FP-3000 | 3''x3'' | 3000PSI | 24(52.17) | 222(8.74) | 172(6.77) | 76(3.00) | 8NPT |
| CSBV2RP-3000 | 2''x1-1/2'' | 3000PSI | 6.05(13.15) | 140(5.51) | 134(5.28) | 38(1.5) | 11.5NPT |
| CSBV4RP-1500 | 4''x3'' | 1500PSI | 24(52.17) | 222(8.74) | 172(6.77) | 76(3.00) | 8NPT |
NOTE: We reserve the right to change materials and specifications.
