2-PC Seal welded ball valve 2000 PSI

4 year ago

23 0 

1 min

Product details

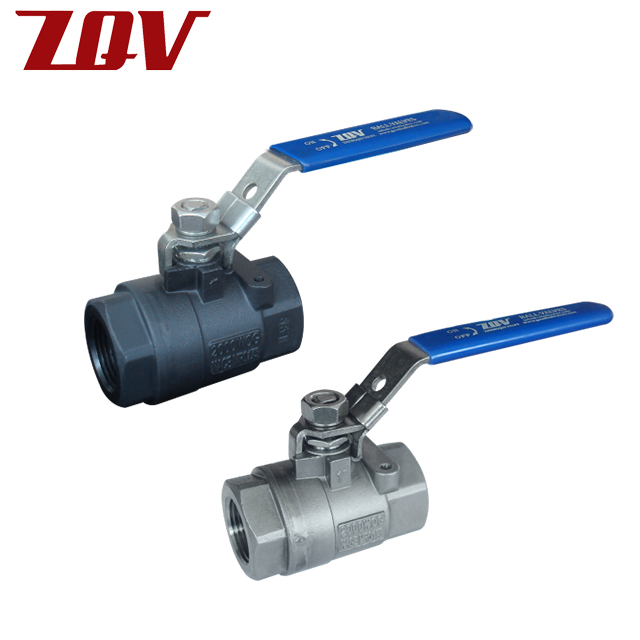

Series 2006WSW/2006WC are our Seal welded Stainless Steel and Carbon Steel Full Port Ball valve, rated 2000PSI, Full port, designed with your safety in mind.

Valves are Manufactured to meet the requirments of ANSI B1.10.1, NACE MR 0175 and Fire safe.

Features:

Full port

Size 1/4'' to 2''

Investiment casting

Seal-Welded body

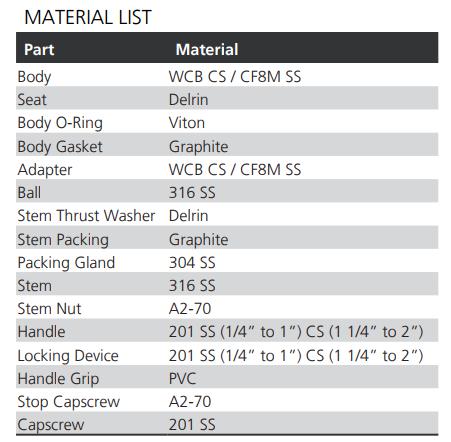

Body: ASTM A216 WCB, A351 CF8M Stainless steel SS316

Seat: RPTFE/MPTFE
End: ASME B1.20.1(NPT), DIN 259/BSP/ISO228
Pressure:2000PSI/PN135
316SS ball and stem
Blow out proof stem
Adjustable Packing Gland
Locking lever handle
Meet Nace Mr0175
Test Standard: API598/ASME B16.34
