Carbon Steel Threaded Swing Check Valves

4 year ago

24 0 

1 min

Product details

Carbon Steel threaded Check Valve 3000 PSI 5000 PSI which could meet your varies application fro the oil and gas pipline.

Design:

• Size: 1''-4''

• Pressure: 200 PSI, 3000 PSI, 5000 PSI NSCWP

• Carbon Steel Body :A216 WCB-Carbon steel

,A351 CF8M-Stainless Steel

• SEAT: Soft seat(viton/NBR)

• Nace MR-01-75-2009 Compliant

• 316 Stainless Steel, One-Piece Hanger and Disc

• Full Flow

• Top Entry Swing Check check valve

Technical Requirements

Design Features: API 6D
Pressure and Temperature Rank: ASME B16.34
Fave to Face: manufature
Threaded end: NPT(ASME B1.20.1)
Test and Check: API 598

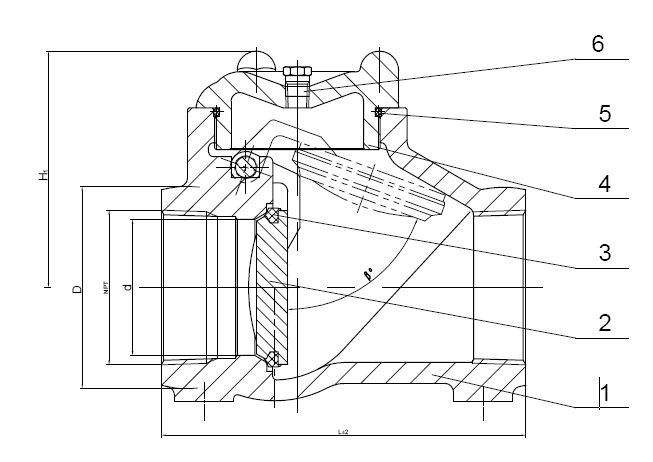

Part No.	Name	Material
1	Body	A216 WCB
2	Disc	ASTM A351 CF8/CF8M
3	Seat Ring	Viton
4	Bonnet	A216 WCB
5	O-ring	Viton
6	Plug	ASTM A105

Unite:mm

Part#	Size	Pressure	Weight(KG)	L	H	d	D
CSCV-1CS-3000	1''	3000PSI	2.50	120	80	25.40	11.5NPT
CSCV-2CSL-3000	2''	3000PSI	7.30	184	108	50.4	11.5NPT
CSCV-3CS-3000	3''	3000PSI	11.00	210	136	78	8NPT
CSCV-1CS-5000	1''	5000PSI	2.50	120	80	25.40	11.5NPT
CSCV-2CSL-5000	2''	5000PSI	7.30	184	108	50.4	11.5NPT

Unite:inch

Part#	Size	Pressure	Weight(LB)	L	H	d	D
CSCV-1CS-3000	1''	3000PSI	5.43	4.72	3.15	1	11.5NPT
CSCV-2CSL-3000	2''	3000PSI	15.87	7.24	4.25	2	11.5NPT
CSCV-3CS-3000	3''	3000PSI	23.91	8.27	5.35	3	8NPT
CSCV-1CS-5000	1''	5000PSI	5.43	4.72	3.15	1	11.5NPT
CSCV-2CSL-5000	2''	5000PSI	15.87	7.24	4.25	2	11.5NPT

Due to continuous development of our products, we reserve the right to modify our products design or construction without notice
