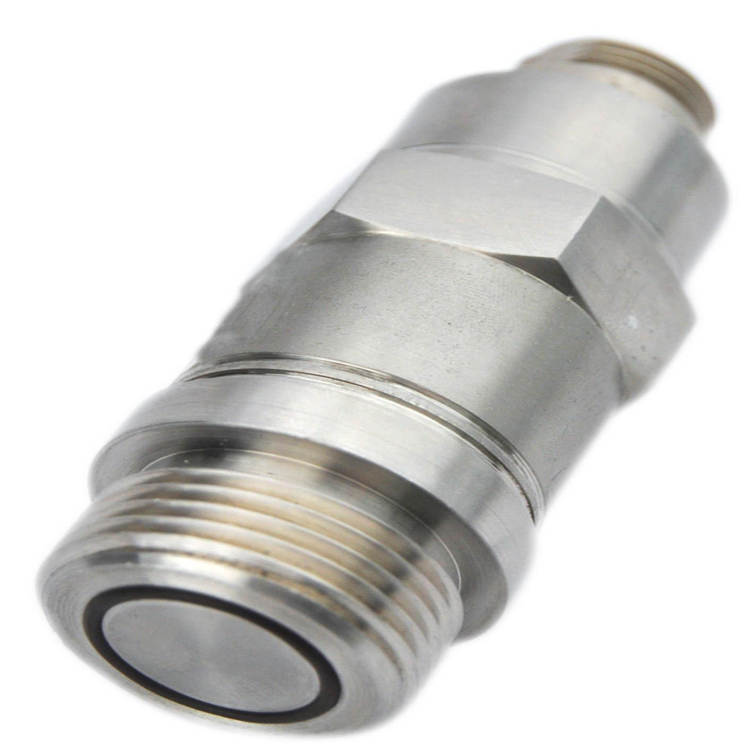

Liquid 2 bar pressure sensor i2c hydrostatic1

Pressure range

Pressure range

1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa(bar and psi unit

available)

Pressure reference

Absolute pressure | Sealed gauge pressure

Overpressure

200%F.S.(<25Mpa) | 150%F.S(≥25Mpa)

Output signal

Zero output

±2mV

Span output

100mV(Typical)

Specification

Accuracy (linearity, repeatability

and hysteresis)

±0.25%F.S. (Typical)

Excitation

1.5mA (Typical)

Compensated temp.

-10-70℃(Typical)

Operating temp.

-40-125℃

Storage temp.

-40-125℃

Zero temp. coefficient

0.02%F.S./ ℃ (≥4MPa) | 0.03%F.S. / ℃(<4MPa)

Span temp. coefficient

0.02%F.S. / ℃(≥4MPa) | 0.03%F.S. / ℃(<4MPa)

Insulation resistance

>200Mohm/250VDC

Bridge resistance

Min.

Max.

Unit

2600

5500

ohm

Long term stability

≤0.2%F.S.S/year

Vibration

20g (20-5000HZ)

Oil filling

Silicon oil (Typical) | Olive oil available for sanitary application

O-ring

NBR, Viton

Housing and diaphragm

Stainless steel 316L

Wire connection

4 wire (typical) | 5 wire (available) 39×φ0.015, Silicon shielded, 200℃ bearing

Pin connection

Kovar pin (0.6um Gold platted)

Weight

17g(approx)
