Precision peek valve

3 year ago

38 0 

Guangzhou One-Stop Engineering Plastics Industries (group) Co., Ltd

4 year

Product details

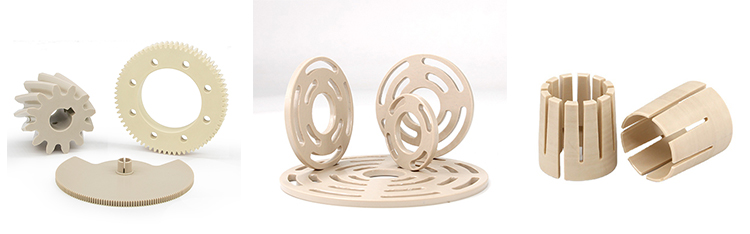

ODM OEM factory wholesale PEEK parts PEEK gear PEEK sleeve bushing PEEK valve plate

PEEK Product

PEEK（Polyetheretherketone）is a kind of heat-resistant, high performance thermoplastic special engineering

plastics. It has good mechanical properties and chemical resistance, abrasion resistance, and hydrolysis

resistance properties etc.; it has a light proportion and self-lubricating properties. Guangzhou Engineering

Plastics Industries (Group) Company, has studied and applied this material in many industries for many years.

Due to very good processing properties, it can be filled with carbon fiber, Fiberglass and MoS2 etc. In order to

improve lubrication performance and mechanical strength further.

1. Excellent dimensional stability

2. Low coefficient of linear thermal expansion

3. Good mechanical properties at elevated temperatures

4. Good resistant to hot water and steam

Many years of industry experience

we are trustworthy

PEEK Material-Model No.:

PEEK-1000 (Natural) This general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades. The newly available black PEEK 1000 is ideal for instrument components where aesthetics are important, as well as for seal components where ductility and inertness are important.

PEEK GF30 (30% Glass-Reinforced) The addition of glass fibers significantly reduces the expansion rate and increases the flexural modulus of PEEK. This grade is ideal for structural applications that require improved strength, stiffness or stability, especially at temperatures above 300°F (150°C).

Property		Item No.	Unit	PEEK-1000	PEEK-CA30	PEEK-GF30
Mechanical Properties	1	Density	g/cm3	1.31	1.41	1.51
	2	Water absorption(23℃ in air)	％	0.20	0.14	0.14
	3	Tensile strength	MPa	110	130	90
	4	Tensile strain at break	％	20	5	5
	5	Compressive stress(at 2%nominal strain)	MPa	57	97	81
	6	Charpy impact strength (unnotched)	KJ/m2	No break	35	35
	7	Charpy impact strength (notched)	KJ/m2	3.5	4	4
	8	Tensile modulus of elasticity	MPa	4400	7700	6300
	9	Ball indentation hardness	N/mm2	230	325	270
	10	Rockwell hardness	--	M105	M102	M99

We have a wide range of customization：

Gear Products，Gear Rack Products

Guide Rail Products，Roller Products，Pulley Products
Bushing Products，Chain Conveyor Products
Screw Conveyor Products，Wheel Products
Block Products，0 Ring Products

Screws Products，Sushi Chain Parts，CNC Machining Parts

Our Factory

(Our factory has 100 sets of precision processing equipment, welcome to visit our factory!)

1 (8)

The factory covers an area of 10,000 square meters Production equipment has the original American imported Haas CNC machining center, wire-electrode cutting, electrical discharge machine,Perforating machine, injection molding machine, CNC milling machine CNC hobbing machine, CNC lathe, CNC milling machine CNC lathe, CNC milling machine, grinding machine and other machinery and equipment.

Certificate

Companies strictly enforce the ISO9001(2008)international quality certification system, the product quality conforms to the eu RoHS standard.
