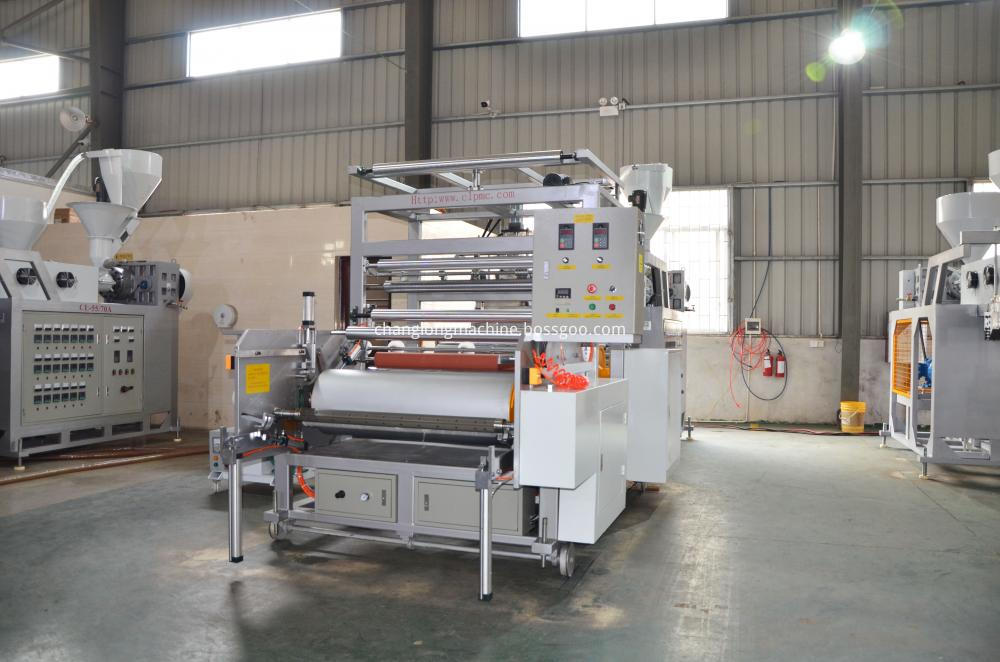

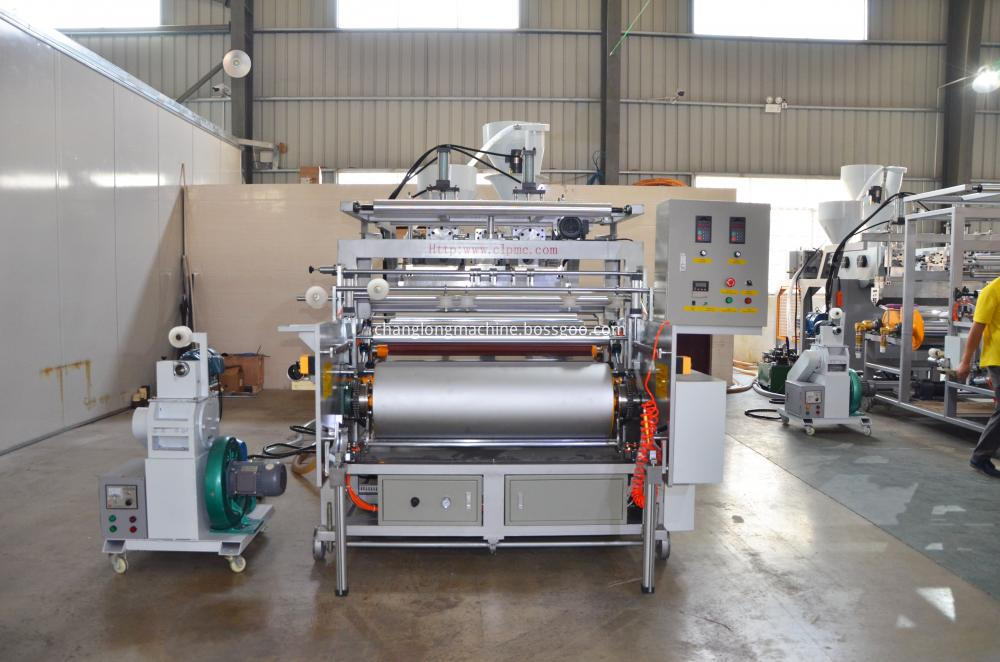

1000MM Two/Three Layers 2 Screw Stretch Film Unit
I.BASIC INFO:
| Model: | CL-55/70A |
| Screw Diameter: | 55/70mm |
| L/D Ratio of screw: | 30:1 |
| Width of die head: | 1250mm |
| Thickness of film: | 0.01-0.05mm |
| Width of film: | 1000mm |
| Max rewind diameter: | 400mm |
| Membrane structure: | A/B 或A/B/A |
| Line speed of machinery: | 120m/min |
| Max extrusion capacity: | 135kg/h |
| Motor power of main machine: | 15/22kw |
| Overall dimensions(L*W*H): | 7*3*3.6m |
| Total weight: | 8T |
II.CHARACTERISTICS:
This unit is the first auto cast film that gained the antional patent by our company research and development.
It using advanced intelligent industial contol systems,with hidden automatic cutter,automatic cutting,automatic roll changing ,automatic loading the pneumatic core sharfts.
Be sure the operation is safe and simple,the whole unit operate stable ,the winding film is smooth and uniform with good apperance.
Application
The Product LLDPE stretch film produced by model CL-55/70A could be widely used in machinery packaging andmanual packaging.
And the model CL-55/70A LLDPE Stretch film machine could also be used to produce agricultural film as well as precervative film.

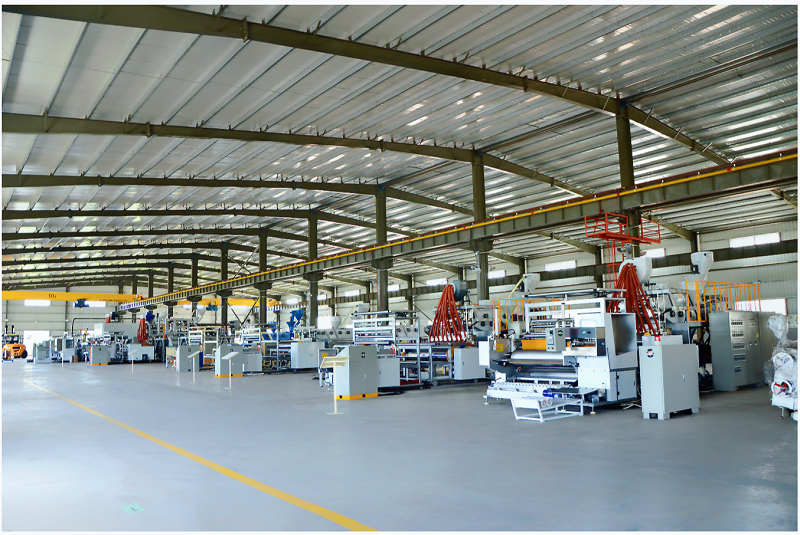

Our Workshops

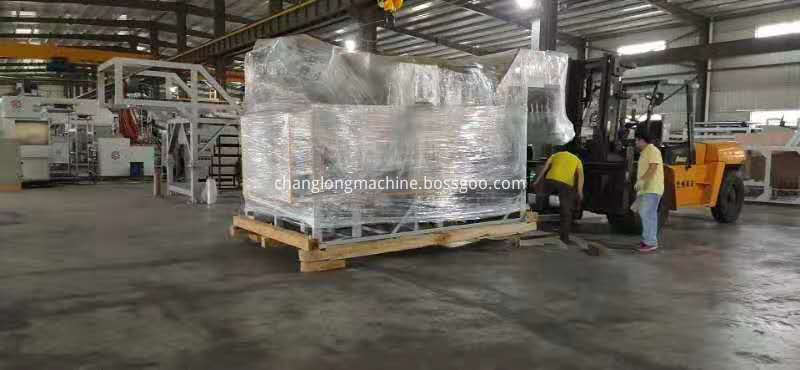

Packaging&Delivery
III.AFTER SALES SERVICE:
The seller freely provides the fittings during the warranty for 12 months with maintenance
forever when the equipment is tested OK. (human factor and force irresistant factor exception )
