KBS+S12-2.1-6.8L Power Unit

5 month ago

1 0 

2 year

Product details

6.8L Square Plastic Tank 12VDC Electric Hydraulic Power Unit

* DC Motor: 12V 1.6KW/S3, engineered for short-time duty cycles to deliver powerful bursts of energy when you need it most.

* Fuel Tank: A horizontal plastic fuel tank with dimensions 230*170*170mm, providing an effective volume of 6.8L for efficient fluid management.

* Relay: A high-capacity 300A relay ensures reliable control of high current loads.

* Solenoid Valves: Two 12V solenoid valves for precise control—circular coil port A for rising and square coil port B for descending operations.

* Safety Valve: A 22Mpa safety valve guarantees the protection of your system against overpressure.

* Valve Block: A compact 130*130 valve block crafted from aviation aluminum profiles for durability and lightweight design.

* Refueling and Breathing Ports: Convenient for maintenance and ensuring proper venting of the hydraulic system.

* Cable: Included 0.75*4m cable for easy installation.

* Level Switch: 12V switch for up or down control, adding to the unit's versatility.

* Terminals: M8 negative terminal and a 16 square meters-M8 pure copper positive electrode cable for secure and efficient battery connections.

* Oil Outlets: UNF 9/16 -18 threads for oil outlets A and B, ensuring seamless connection to your cylinder's rodless chamber inlet and rod chamber outlet.

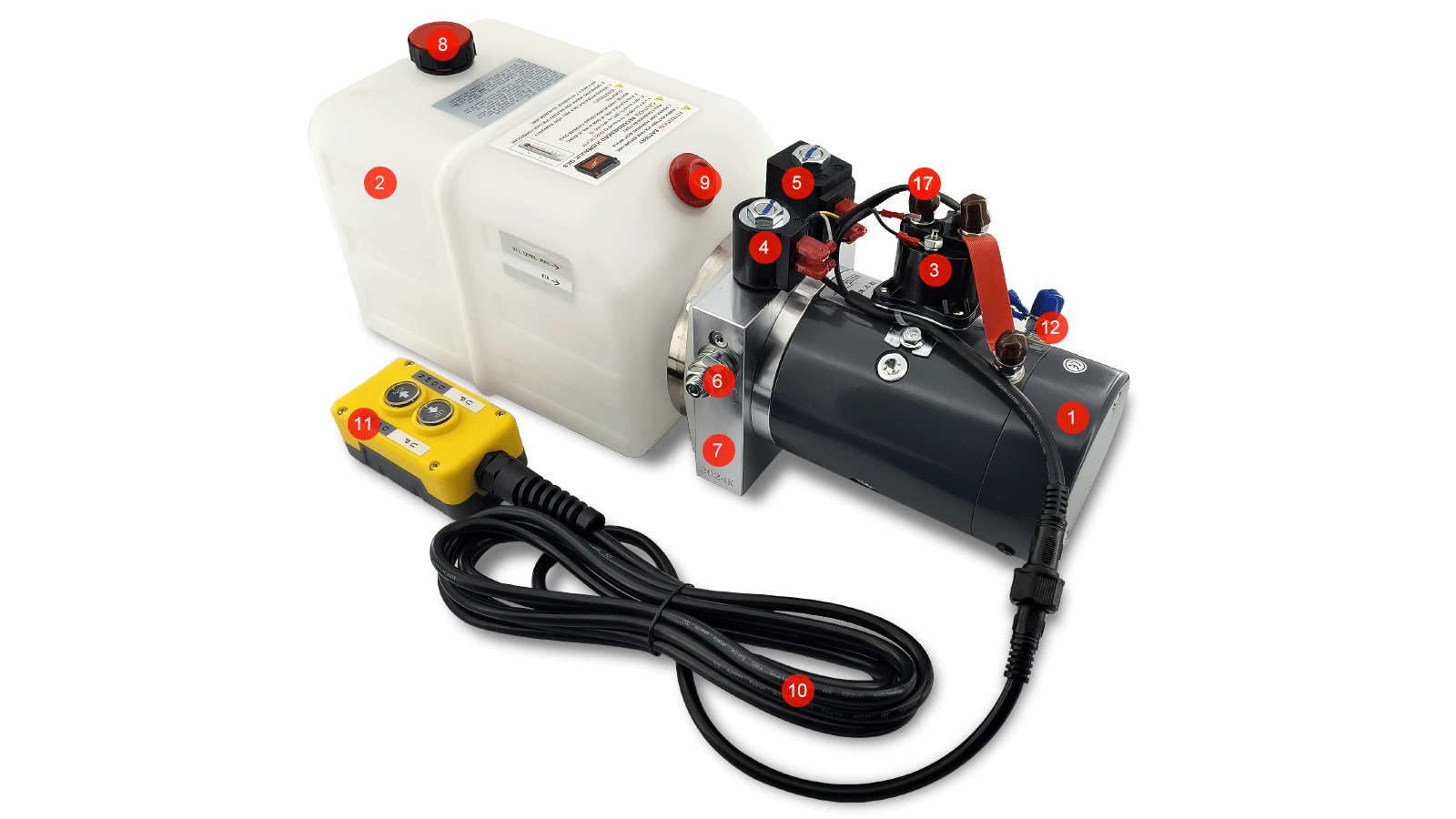

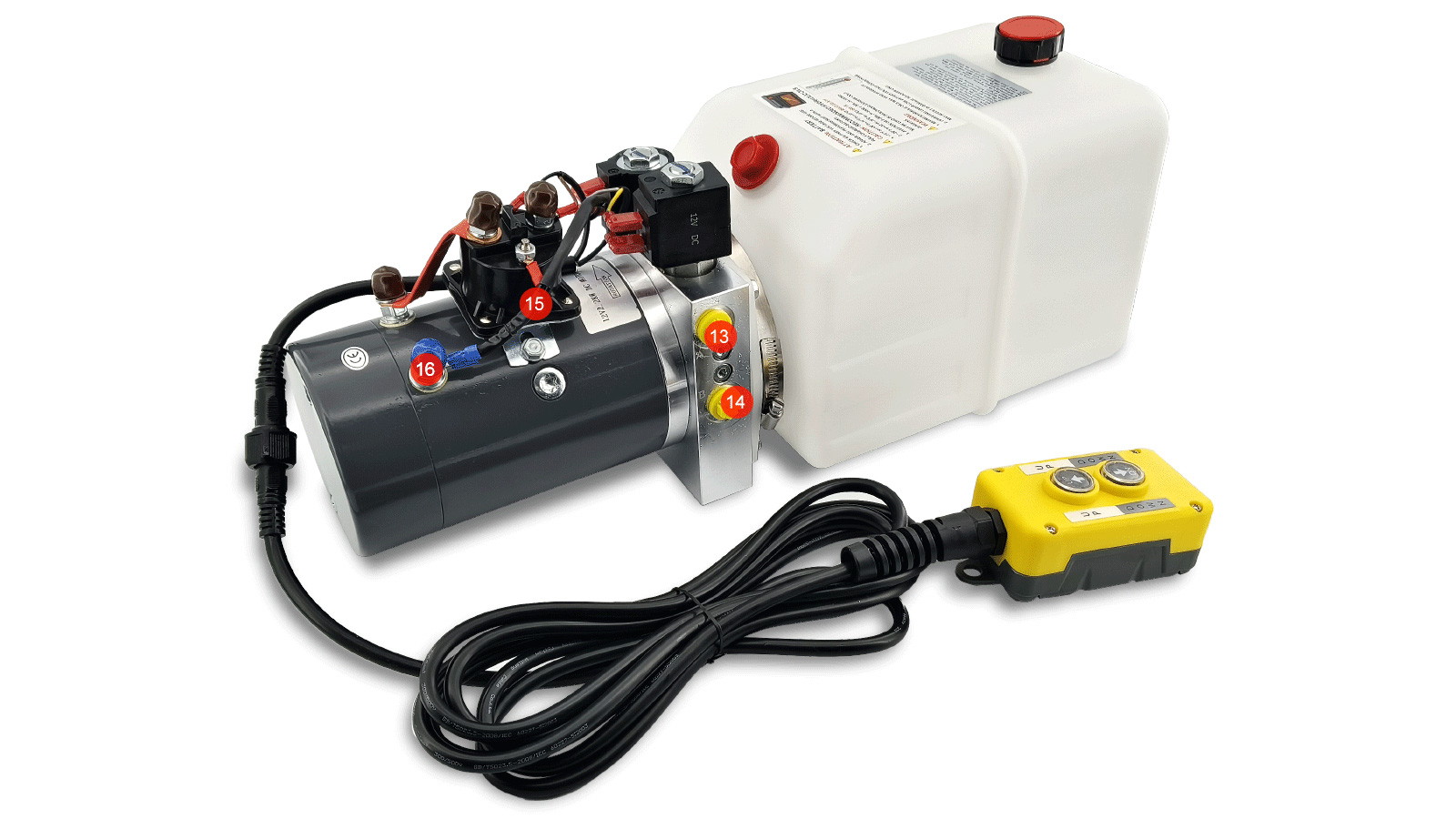

Label	Name	Paremeter	Notes
①	DC motor	12V1.6KW/S3	Short-time duty
②	Horizontal plastic fuel tank	230170170mm	Effective volume 6L
③	Relay	300A
④	Solenoid valve (1)	12V Circular coil port A rises
⑤	Solenoid valve (2)	12V Square coil port B descending
⑥	Safety Valve	22Mpa
⑦	Valve block	130*130	Aviation aluminum profiles
⑧	Refueling port
⑨	Breathing port
⑩	Cable	0.75*4m
⑪	Level switch	Up or down	12V
⑫	Negative terminal	M8	Connect to the negative terminal of the battery (16 square copper wire)
⑬	Oil outlet A	UNF 9/16 -18 Connect the rodless chamber inlet of the cylinder
⑭	Oil outlet B	UNF 9/16 -18 Connect the rod chamber outlet of the cylinder
⑮	Positive electrode cable	16 square meters-M8	Pure copper
⑯	Motor positive pole	M8	Connect to positive battery terminal (16 square copper wire)
⑰	Positive terminal	Connect to the positive terminal of the battery
