ISO/SGS Certified Double Layer Roll Forming Making Machine

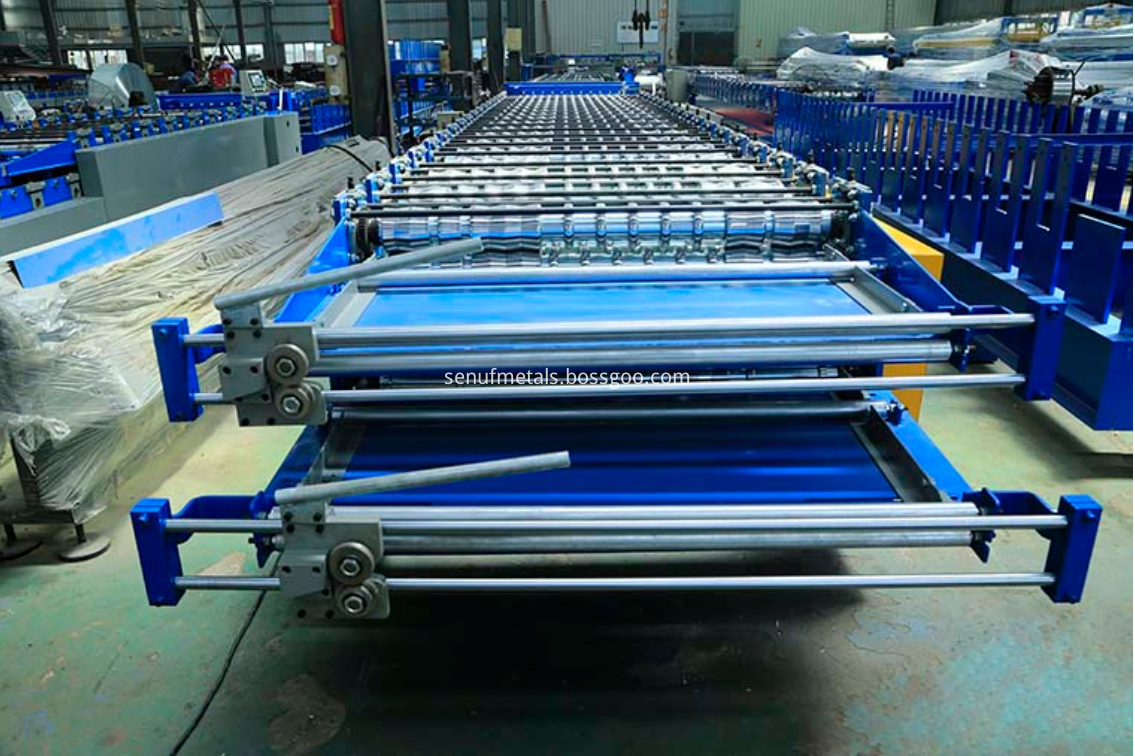

A Double Layer Roll Forming Making Machine is composed by a decoiler, two entry feeding guides with entry shearing optional (either motor shearing or hydraulic decoiler), two roll forming systems, one Cutting frame with two cutting dies (a hydraulic pressing will be equiped as long as this dual level roll forming machine is designed to produce metal glazed roof tiles), one transmission system, one control system and runout tables.

Hydraulic decoiler with loading car and auto stacker machine are optional to this either as per requirments. And also the protection covers. If you need the fully automatic production line, those options are necessary. Two layers could be any metal roofing sheet drawings, expect two galzed tiles as the stepping system can not work for them both.

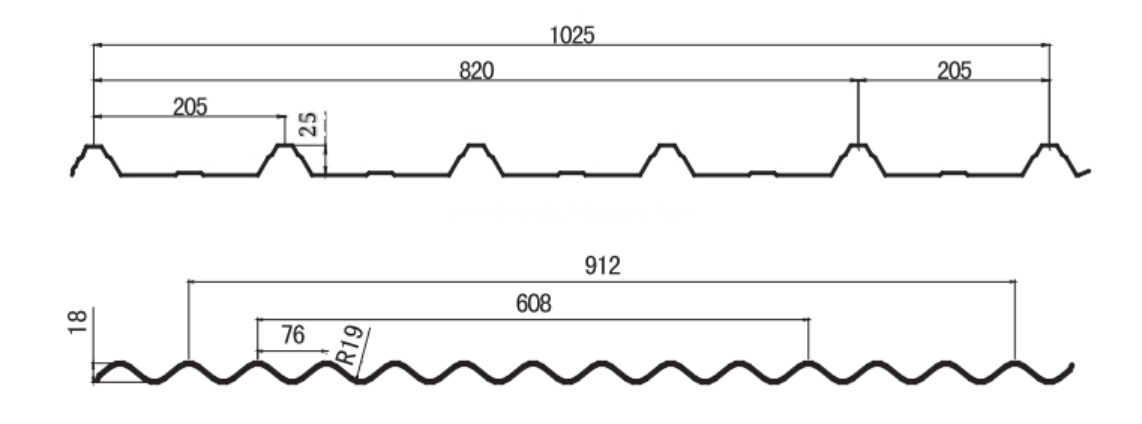

Take the following drawing for example to show how Double layer rolling forming machine designed.

Detailed images of Double Layer Roll Forming Machine

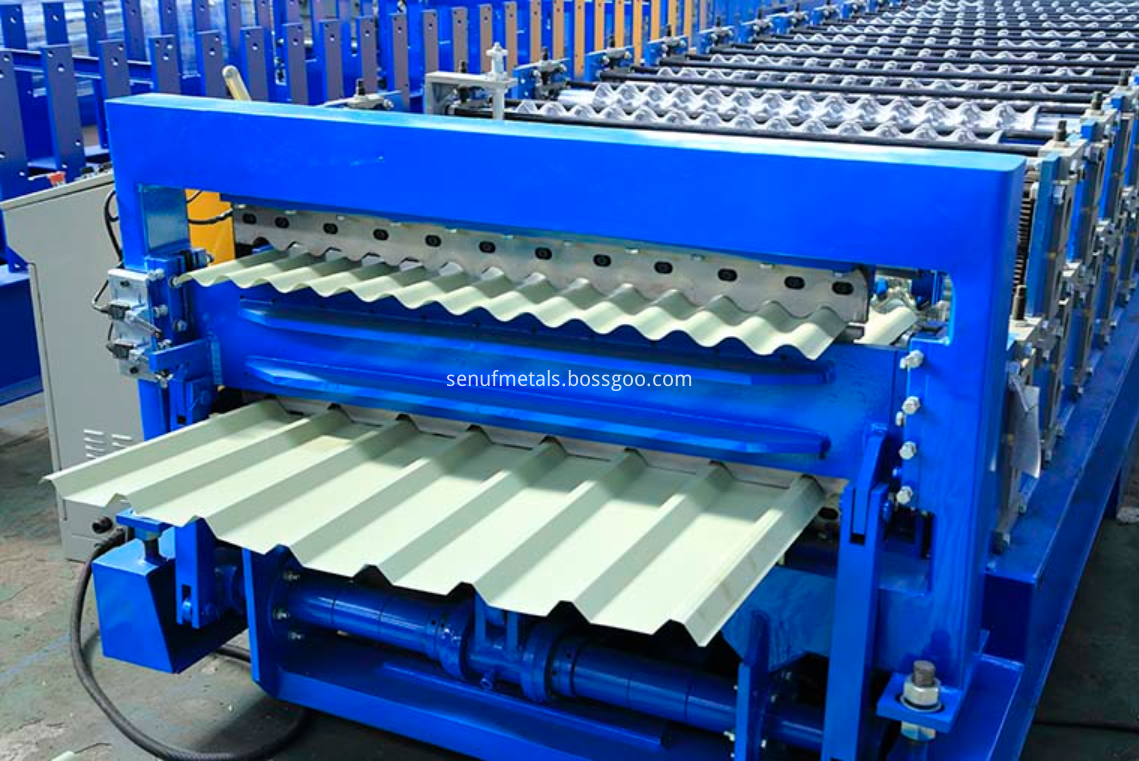

Machine parts

1. Double Layer Roll Making Forming Machine pre cutter

Avoid wasting material

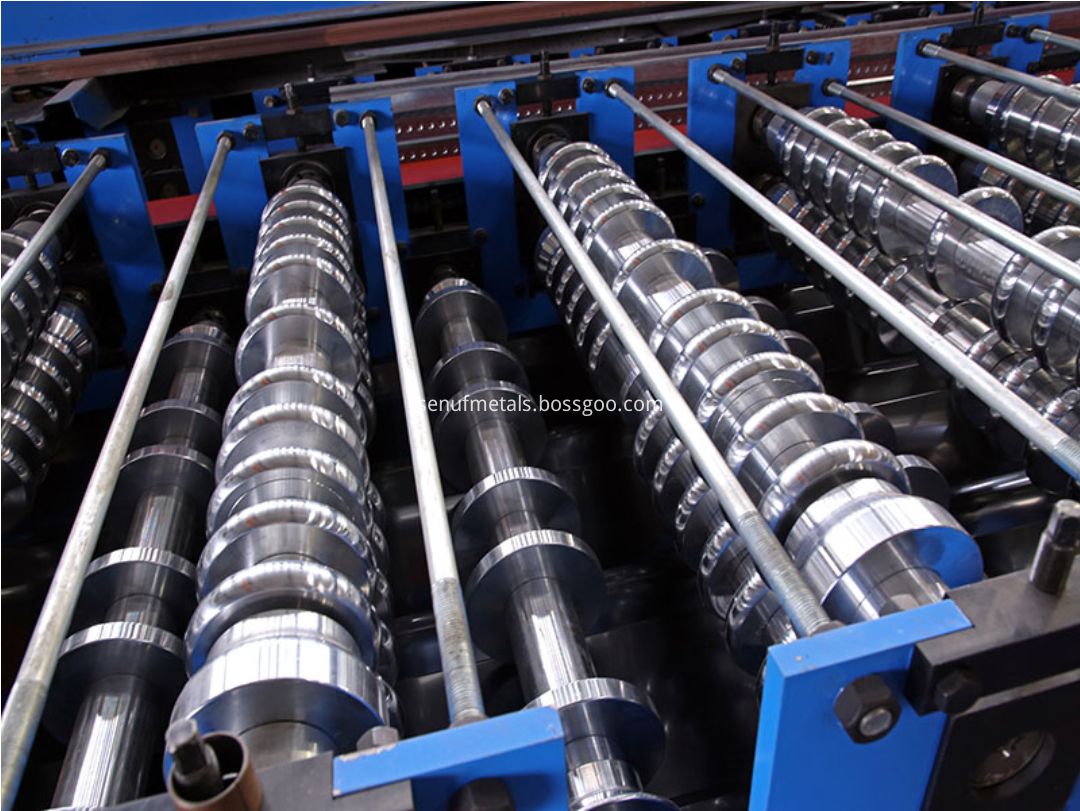

2. Metal Roofing Machine rollers

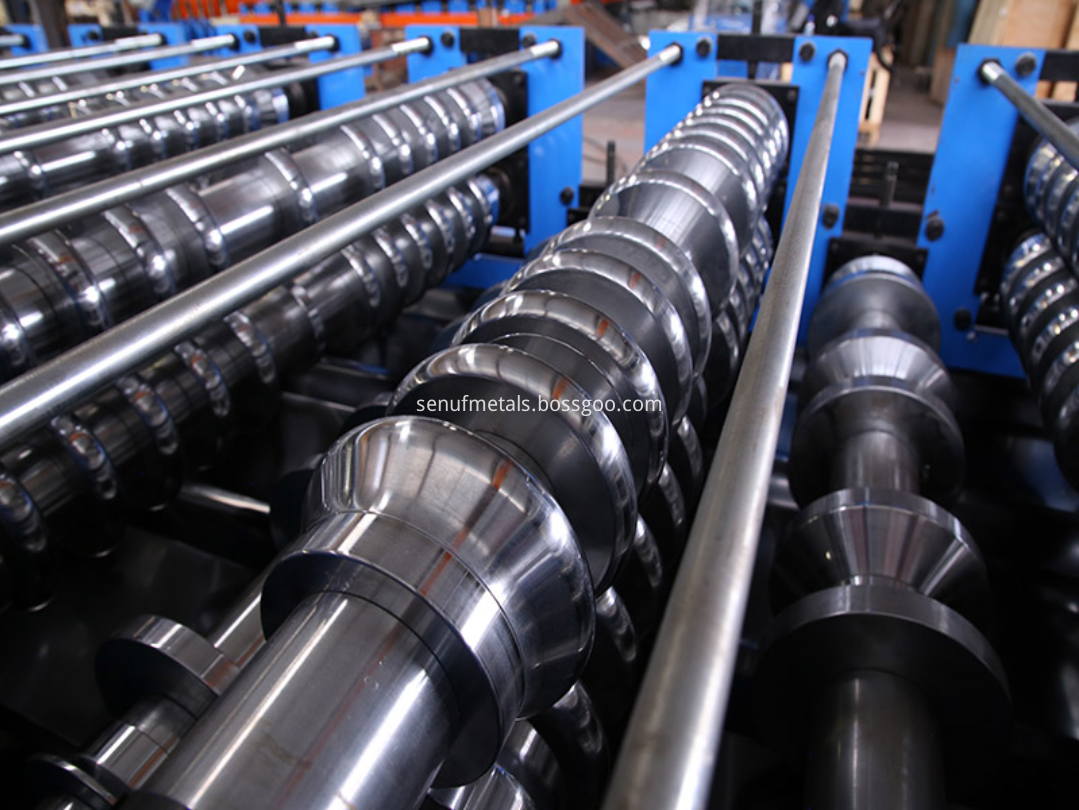

Rollers manufactured by high quality bearing steel GCR15, CNC lathes, Heat Treatment, with black treatment or Hard-Chrome coating for options,

With feeding material guide, body frame made by 300H type steel by welding

3. Sheet Metal Roll Forming Machine post cutter

Made by high quality mold steel Cr12 with heat treatment, Cutter frame made by high quality 25mm steel plate by welding,

Hydraulic motor: 3.7kw, hydraulic pressure range: 0-16Mpa

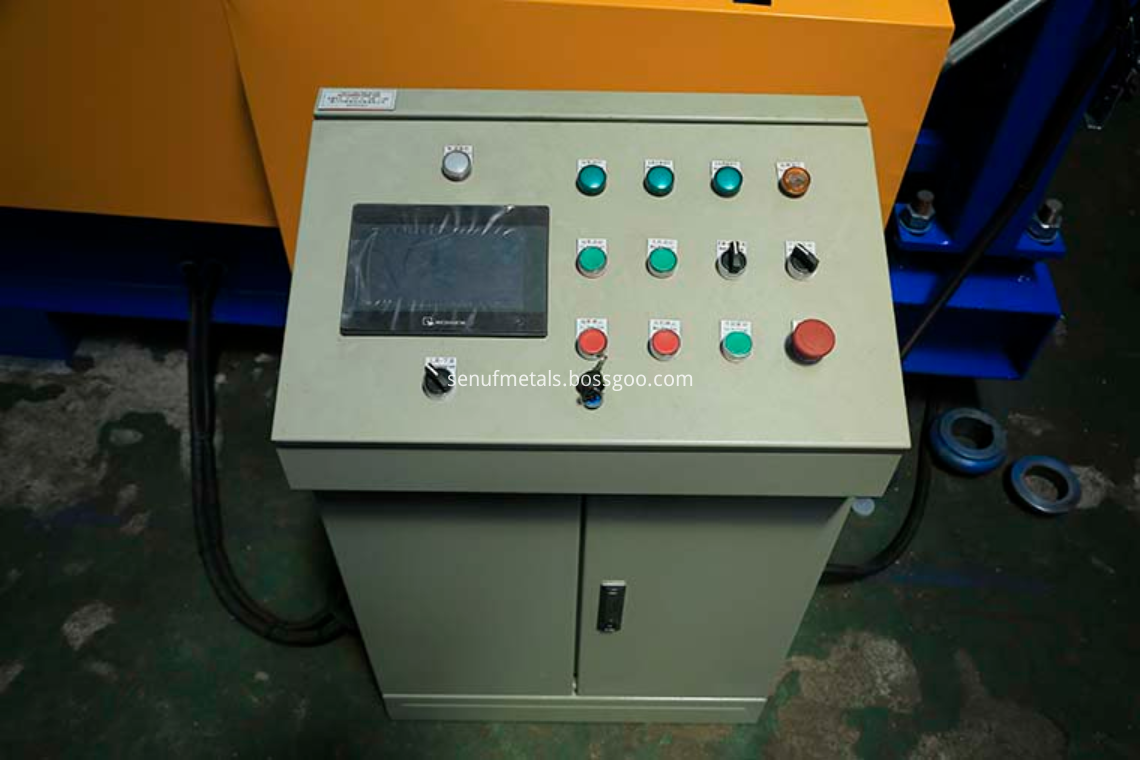

4. Double Layer Roof Automatic Tile Roll Machine PLC control cabinet

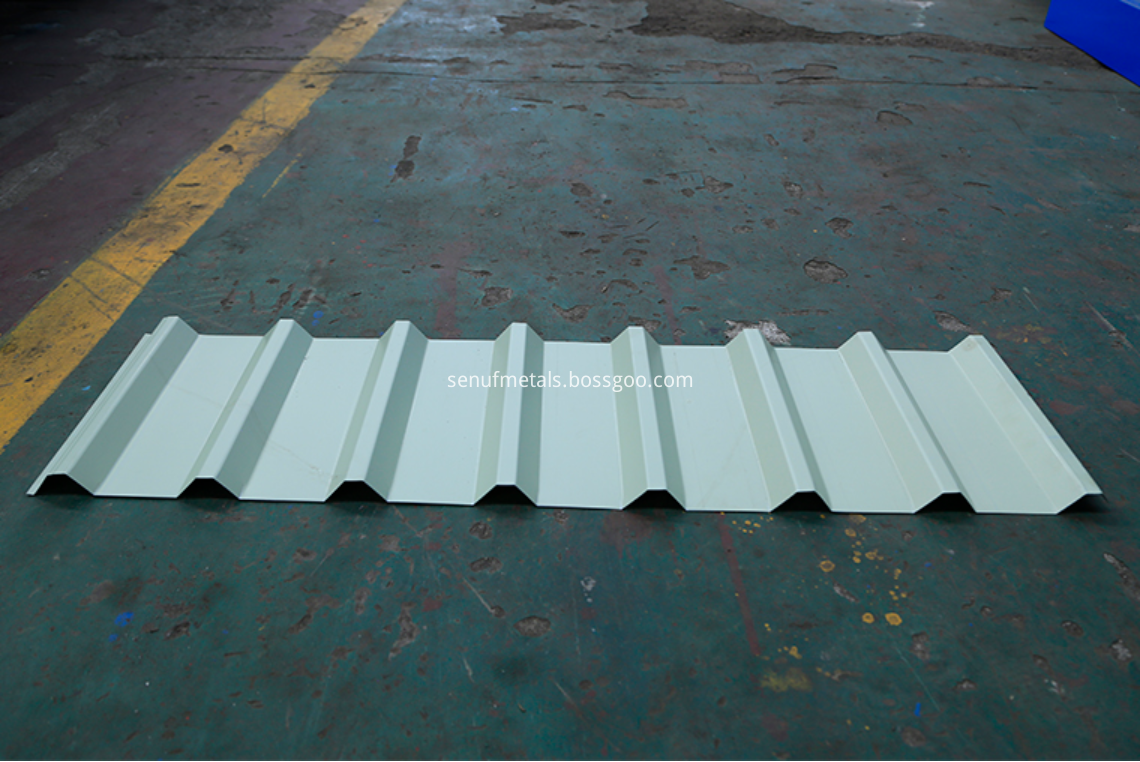

5. Double Layer Roof Automatic Tile Roll Machine product samples
