18-728 Iron color corrugated roof panel forming machine

As the society development in modern times, the metal steel building materials are in a big quantity requested.
The steel sheets are used for roof sheet and wall panel. Iron Corrugated Roof Panel Forming Machine is to make the flat coil sheet into requested shapes.

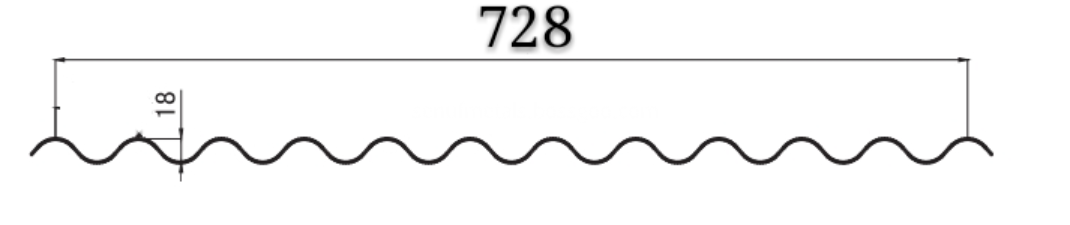

The profile shapes are in various models according to the architectural features in local, so most of the machines are customized.

Main features of 18-728 Corrugated Roof Panel Forming Machine

The advantages of Color Corrugated Roof Panel Forming Machine

1. Products widely used in modern factory, such as workshop, 4S auto shop, is a new popular roof panel,

2. Easy operation, low maintenance cost

Detailed Images of 18-728 Iron color corrugated roof panel forming machine

Machine parts

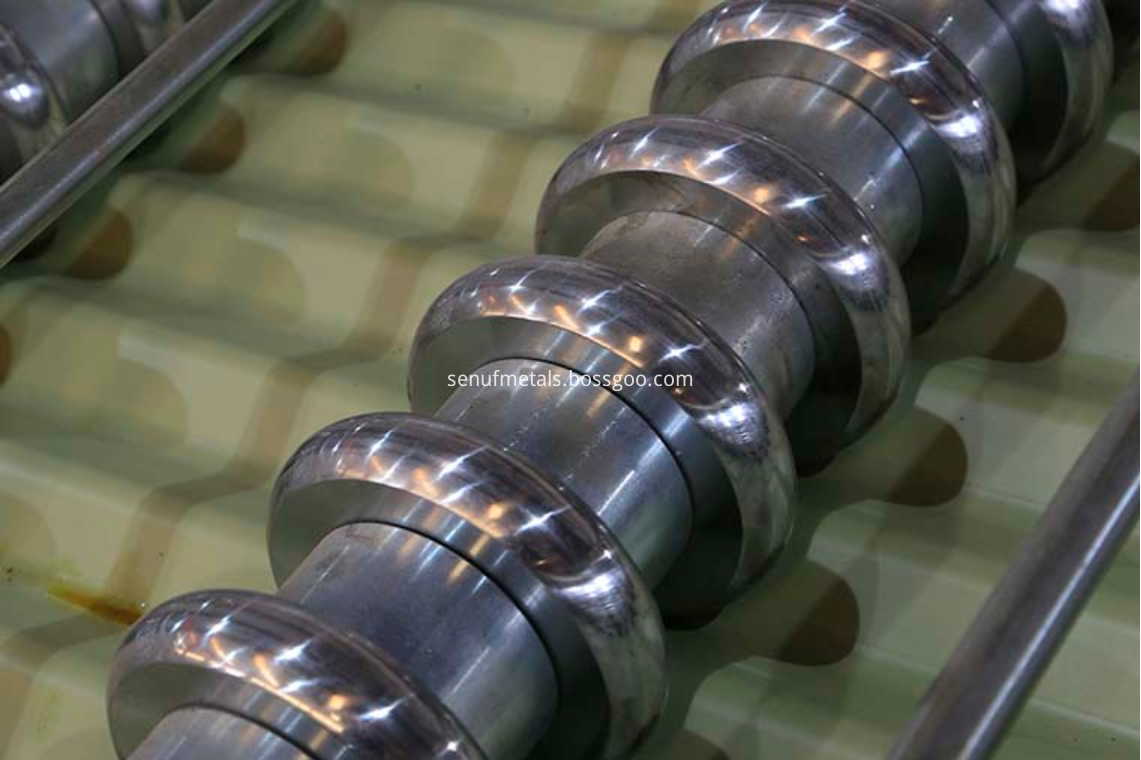

1. Iron Corrugated Roof Panel Forming Machine Rollers

Rollers manufactured by high quality 45# steel, CNC lathes, Heat Treatment, with Hard-Chrome Coating for long life,

With feeding material guide, Body frame made by 300#H steel by welding

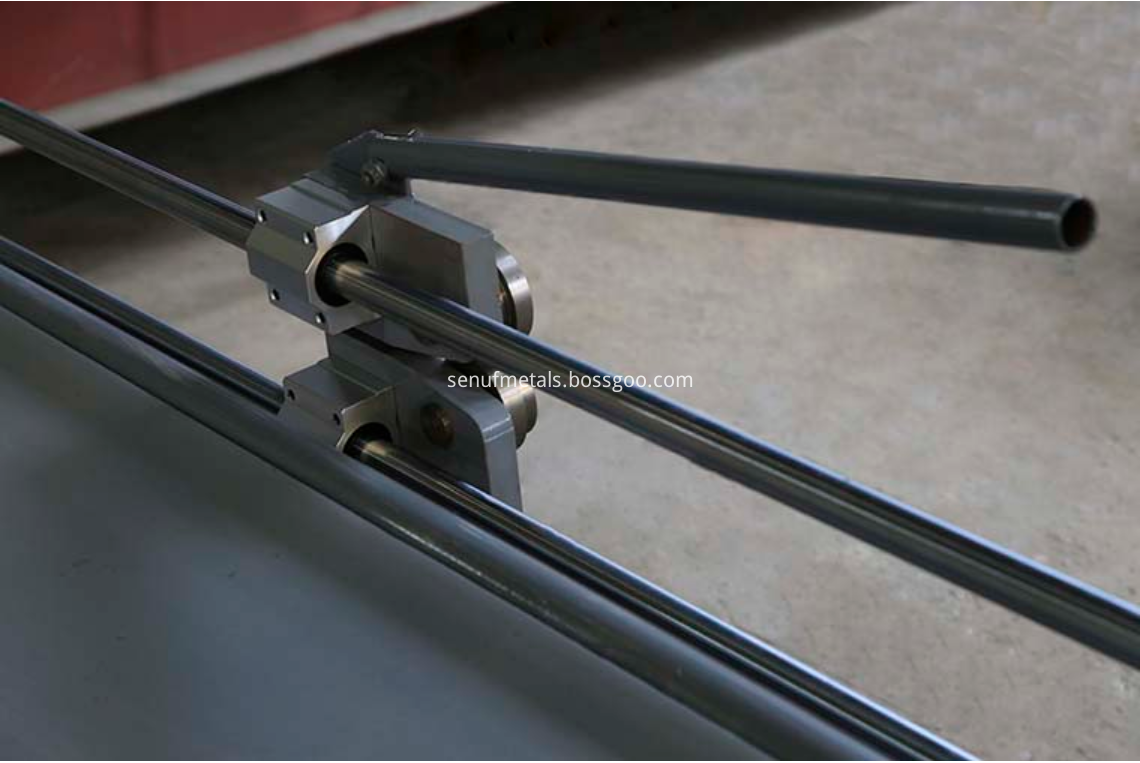

2. 18-728 Corrugated Roof Panel Forming Machine Pre Cutter

Avoid wasting material, easy to operate

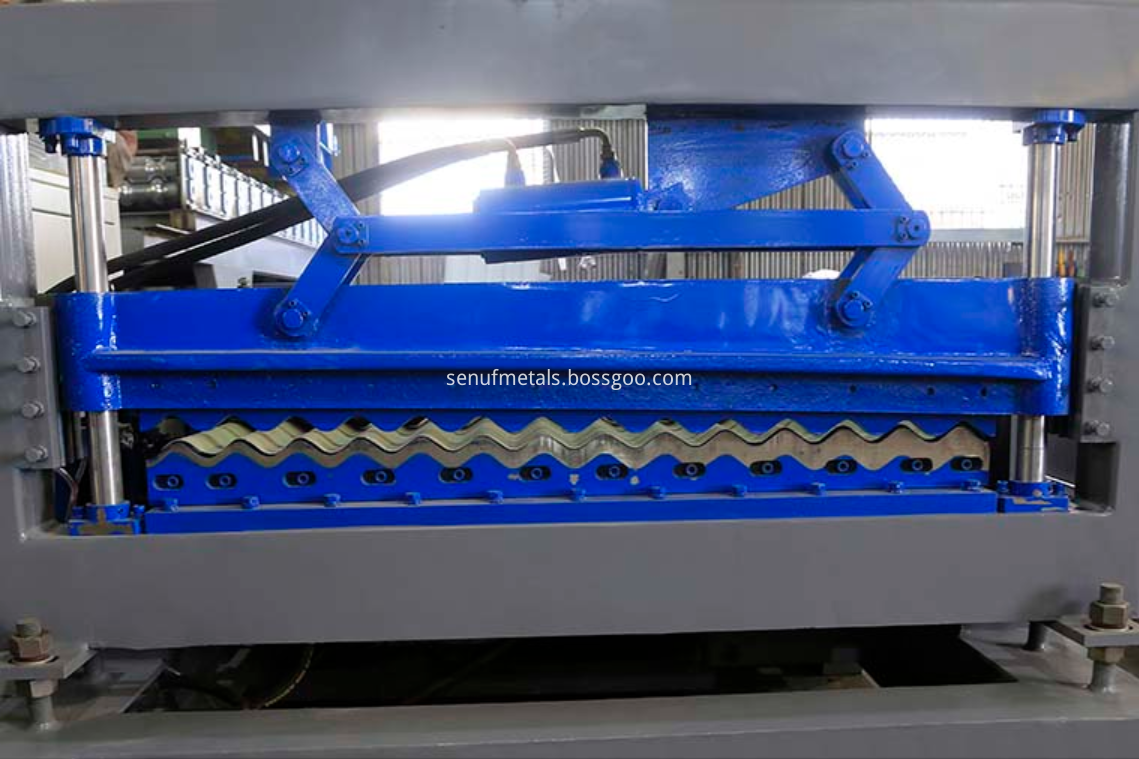

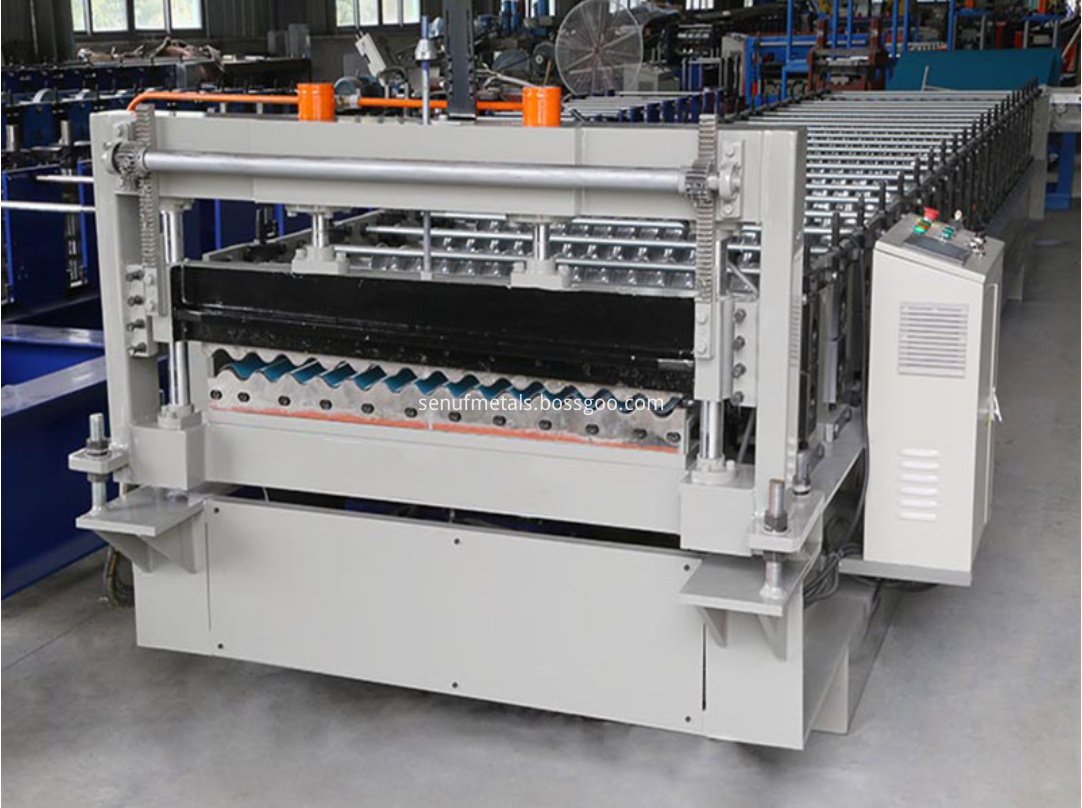

3. 18-728 Iron color corrugated roof panel forming machine post cutter

Cutter frame made by high quality 20mm steel plate by welding,

Post cut, stop to cut, use the same hydraulic motor drive,

Hydraulic motor: 2.2kw, Hydraulic pressure range: 0-12Mpa,

Cutting tool material: Cr12, Het treatment.

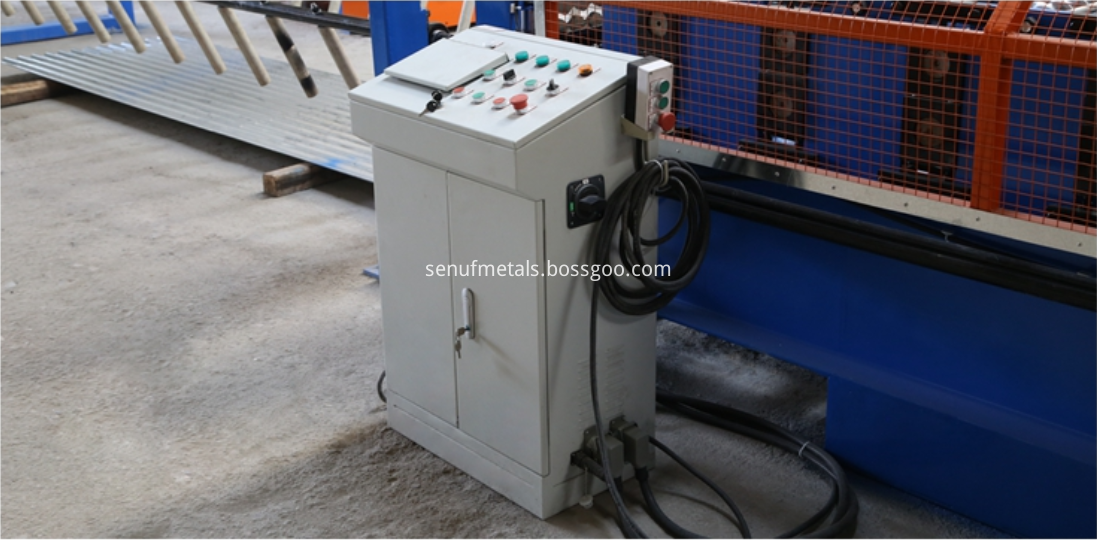

4. Color Corrugated Roof Panel Forming Machine PLC control system

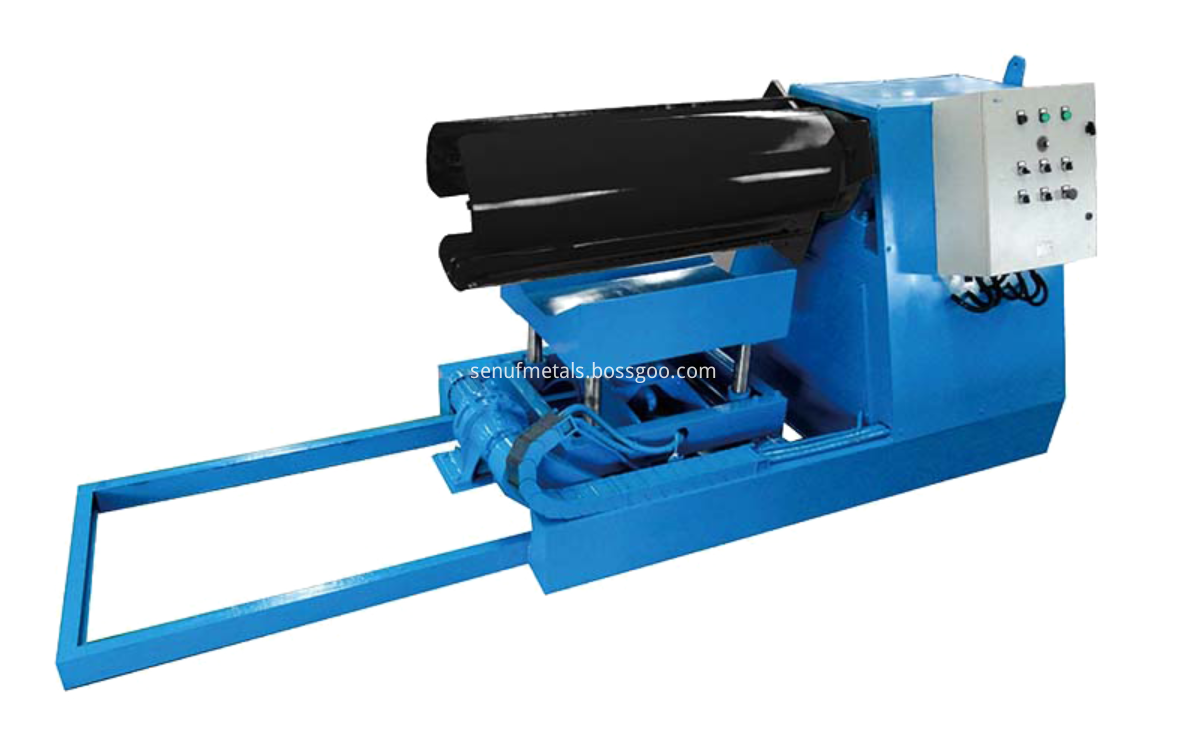

5. Iron Corrugated Roof Panel Forming Machine Decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop

Max feeding width: 1000mm, coil ID range 470±30mm

Capacity: Max 5 tons

With 6 tons hydraulic decoier as optional

Other dertails of Corrugated Roof Sheet Roll Forming Machine

Suitable for material with thickness 0.3-0.8mm,

Shafts manufactured by 45#, main shaft diameter 75mm, precision machine,

Motor driving 7.5kw, chain as the transmission way, 19 rollers to form,

Main motor: 5.5kw, frequency speed control, forming speed pprox 15-20m/min.
