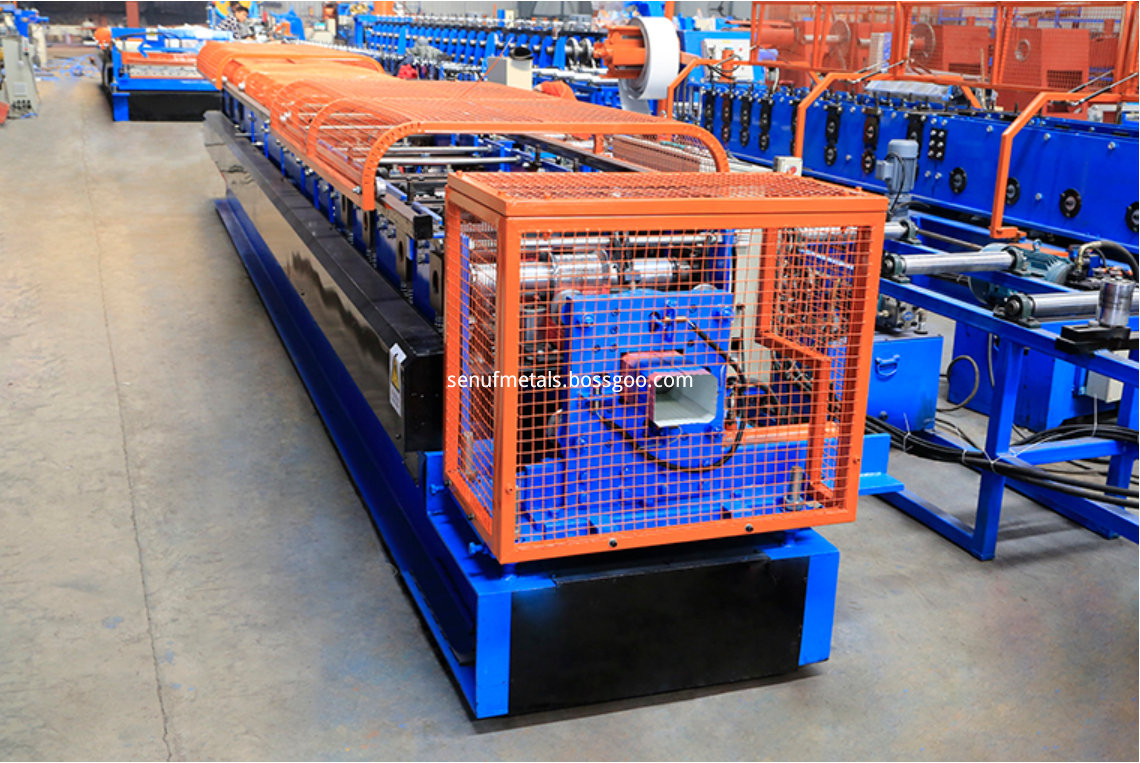

Downspout roll forming machine with elbow

Water downspout roll forming machine

water downspout roll forming machine is for making rain gutter, water falling tube, down spout and downpipe.
To meet installation connecting requirements, there's assistant matched downspout curving / bending device.
It adopts PLC control, AC frequency and speed adjusting technology,
and it realizes the continuous automatically production.
Therefore, it is a welcomed new type of energy - saving and high-effective producing equipment for steel structure.

Main features of water downspout roll forming machine

In order to offer a complete gutter system --- and do it all "in-house" --- you need Downspout Pipe Roll Forming Machine has following advantages:

1. Make both downspout pipe and elbows(with bending device for engineering convenience)

2. With square type downspout pipe nd round type downspout pipe for optional

3. Easy operation, low maintenance cost

4. Stable and efficient

Detailed Images of water downspout roll forming machine

Machine Parts

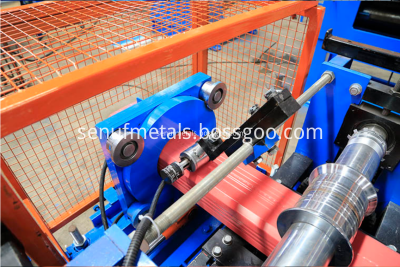

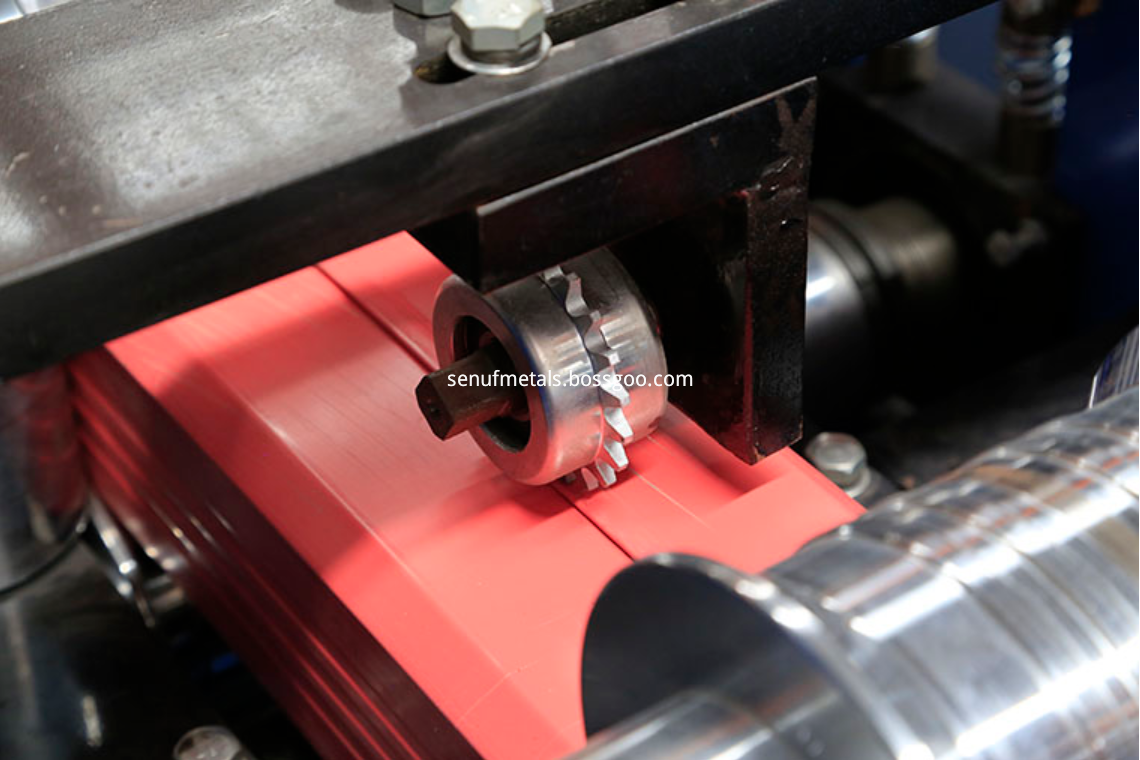

1. Water downspout roll forming machine tooth shape making device

Brand: SUF, Original: China

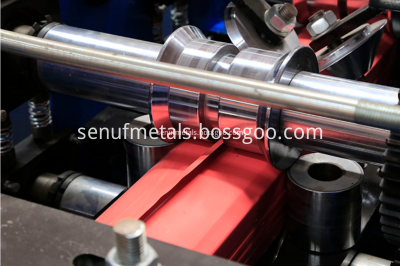

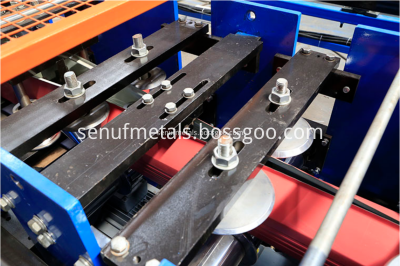

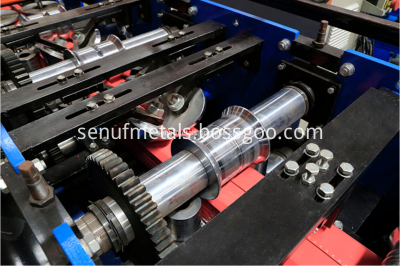

2. Water downspout roll forming machine rollers

Rollers manufactured from high quality steel 45#, CNC lathes, Hard-Chrome Coating for options.

With feeding material guide, body frame ade by 450H type steel by welding

3. Water downspout roll forming machine cutter

Made by high quality mold steel Cr12 with eat treatment,

Cutter frame made by high quality 20mm steel plate by welding

Hydraulic motor: 4kw, hydraulic pressure range: 0-16Mpa

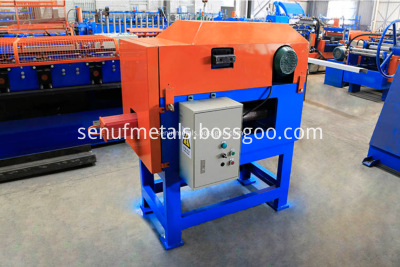

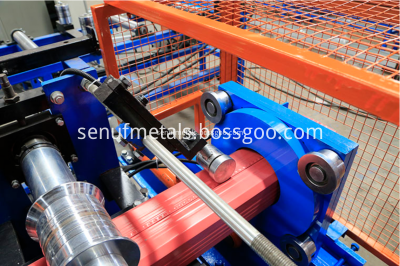

4.Water downspout roll forming machine bender

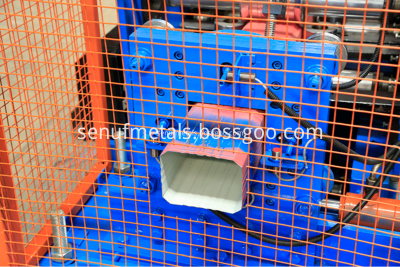

5. Water downspout roll forming machine samples

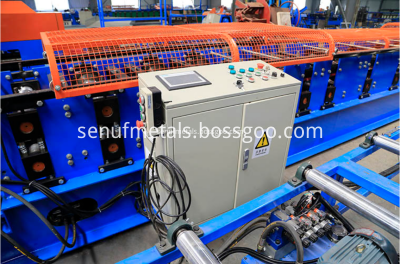

6. Water downspout roll forming machine PLC control system

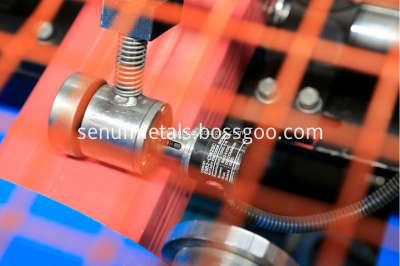

PLC control system (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW, Inverter brand: Finlan VOCAN/Taiwan Delta/Alpha, Encoder brand: Omron)

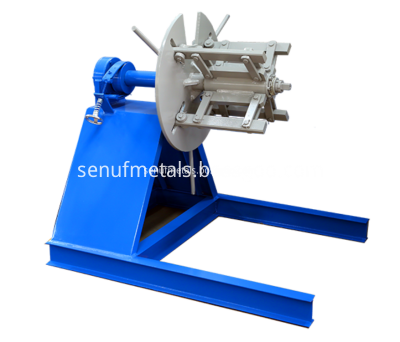

7. Water downspout roll forming machine decoiler

Manual decoiler: one set

Un-powered, manually control steel coil inner bore Shrinkage nd stop

Max. feeding width: 500mm, coil ID range 508±30mm

Capacity: Max 3 ton

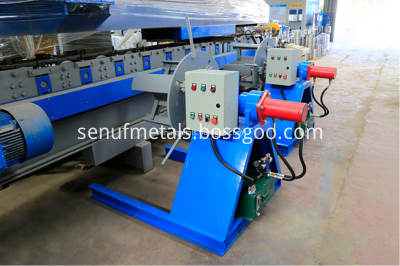

With 3 tons hydraulic decoiler for option

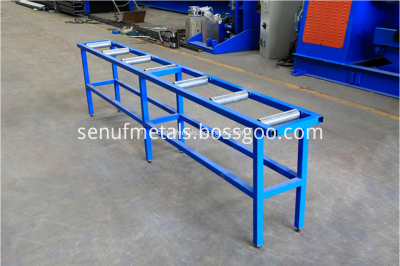

6. Water downspout roll forming machine exit rack

Un-powered, one unit
