Product details

ANGLE HAT CU CZ drywall forming machine

   Metal Frame CU Light Keel Roll Forming Machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material. Used in hotels, terminals, bus terminal, railway stations, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

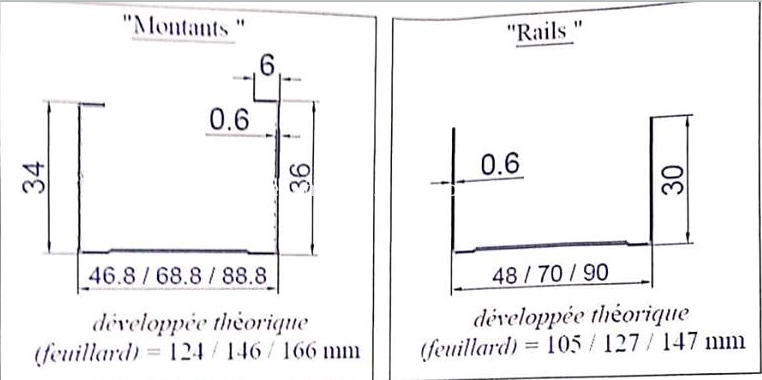

1604217147(1)

(1 machine for multi-profiles, size-changing by spacers)


The advantages of Steel Light Keel Roll Forming Machine are follows:

① The speed can reach 40-80m/min,

Enlarged hydraulic station to ensure high speed working,

③ Easy operation, low maintenance cost,

④ Beautiful appearance,

⑤ One machine for multi-profiles, size-changing by spacer.


2. Detailed images of CU Light Keel Roll Forming Machine

Machine Parts:

(1) Metal Frame Light Keel Forming Machine

Brands: SUF, Original: China

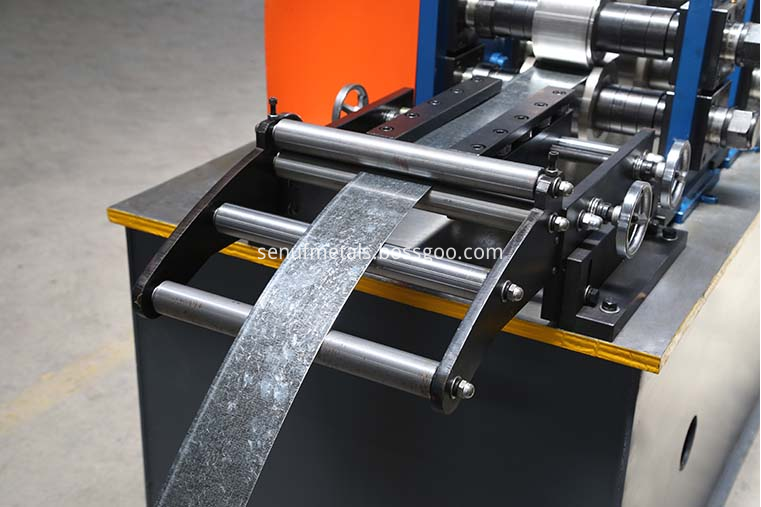

Feeding Guide (make feeding smooth and no wrinkling)

Fedding Guide

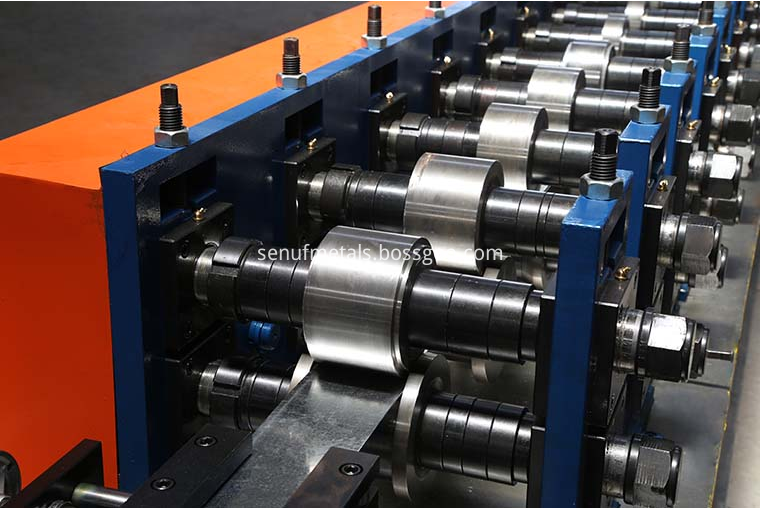

(2) Metal Frame CU Light Keel Roll Forming Machine Rollers

Rollers manufactures from hong life mold steel Cr12=D3 with heat treatment, CNC lathes,

Heat treatment (with black treatment or hard-chrome coating for options),

With feeding material guide, body frame made from 400# H type steel by welding.

Rollers

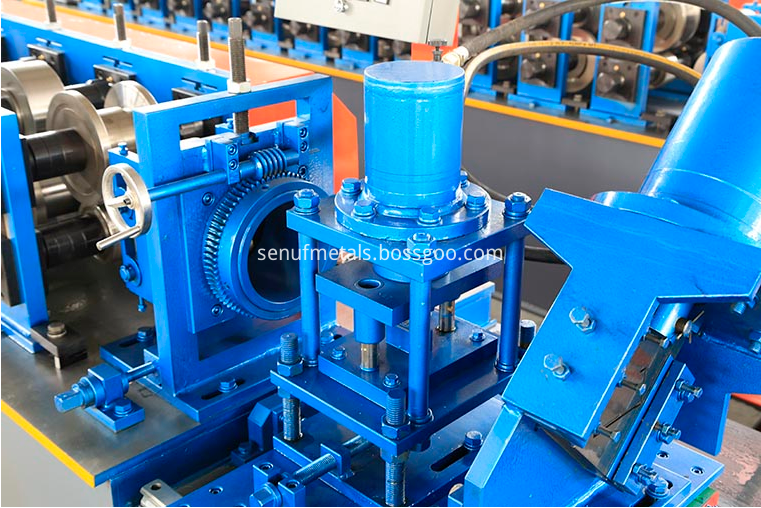

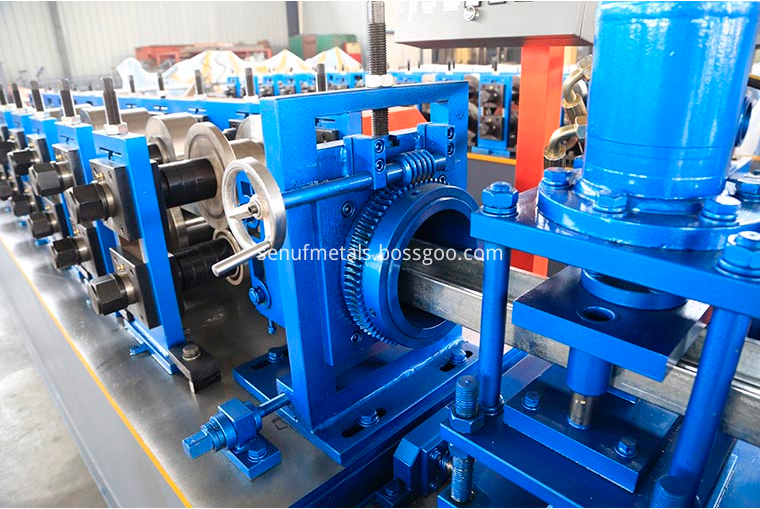

(3) Steel Light Keel Roll Forming Machine straighting and logo punching device

punching

Punching (2)

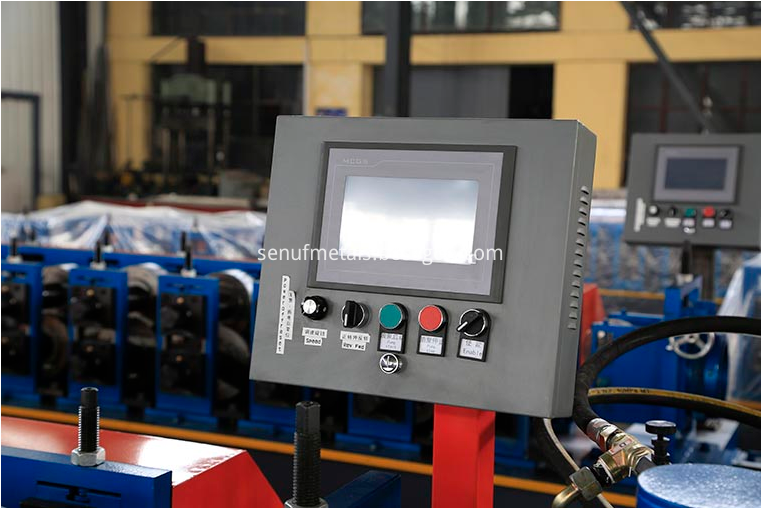

(4) Metal Frame Light Keel Forming Machine operation panel

Operation panel

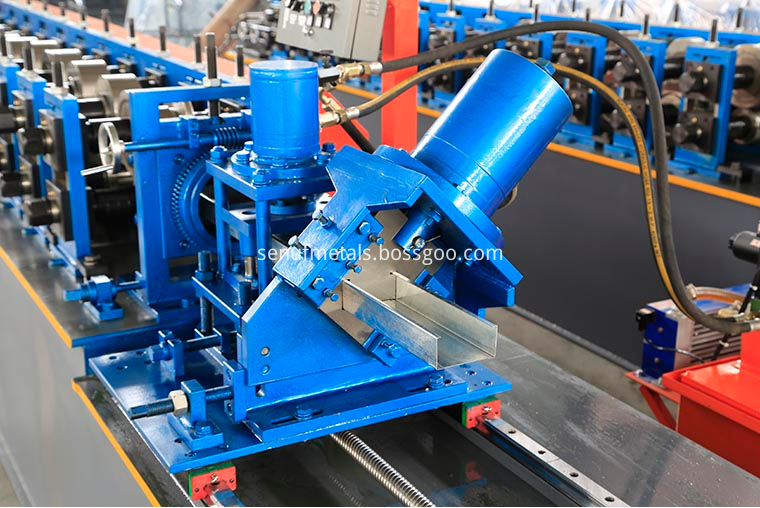

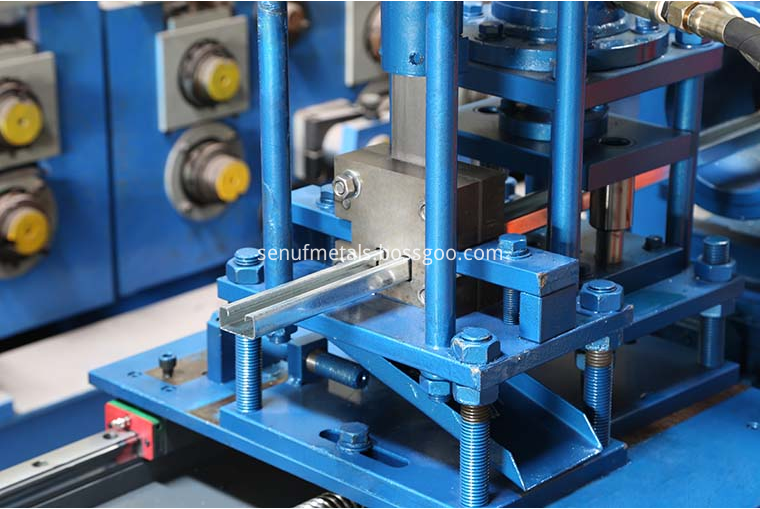

(5) Metal Frame CU Light Keel Roll Forming Machine flying cutting

Made by high quality long life mold steel Cr12Mov with heat treatment,

Cutter frame made from high quality 30mm steel plate by welding,

Hydraulic motor: 5.5kw, Hydraulic pressure range: 0-16Mpa.

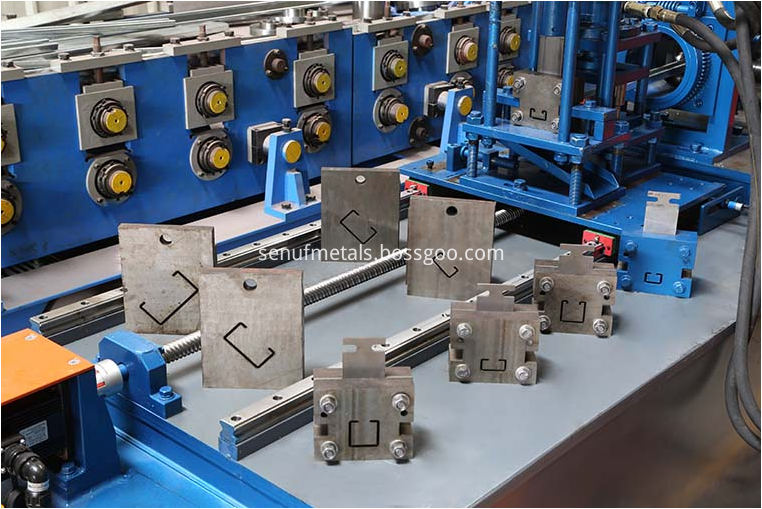

Cutting mold

Cut

cut (2)

(6) High Speed Metal Stud Track Roll Forming Machine Hydraulic System

Englarged hydraulic station to ensure high speed working

Hydraulic Station (2)

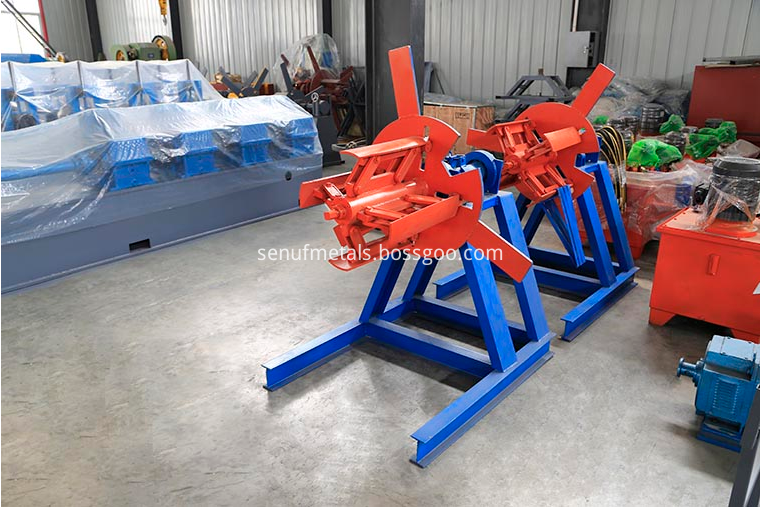

(7) Steel Light Keel Roll Forming Machine Decoiler

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop,

Max feeding width: 500mm, Coil ID range: 508±30mm,

Capacity: Max 3 tons.

3 tons manual decoiler

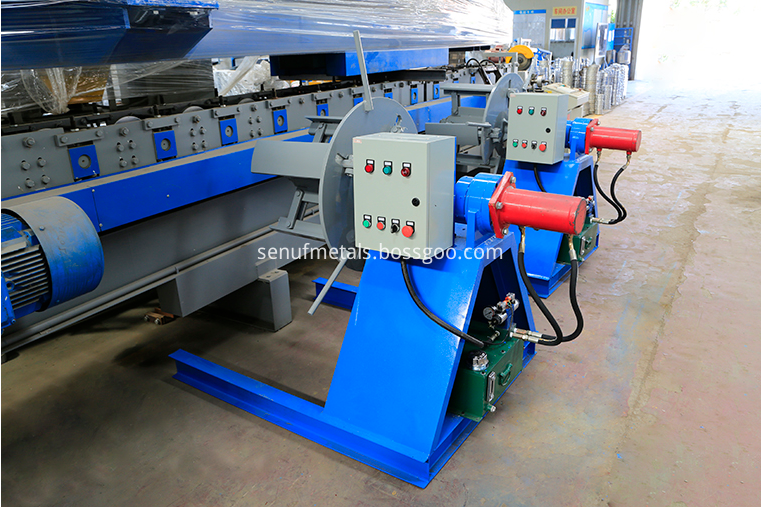

With 3 tons hydraulic decoiler for option

3 tons hydraulic decoiler

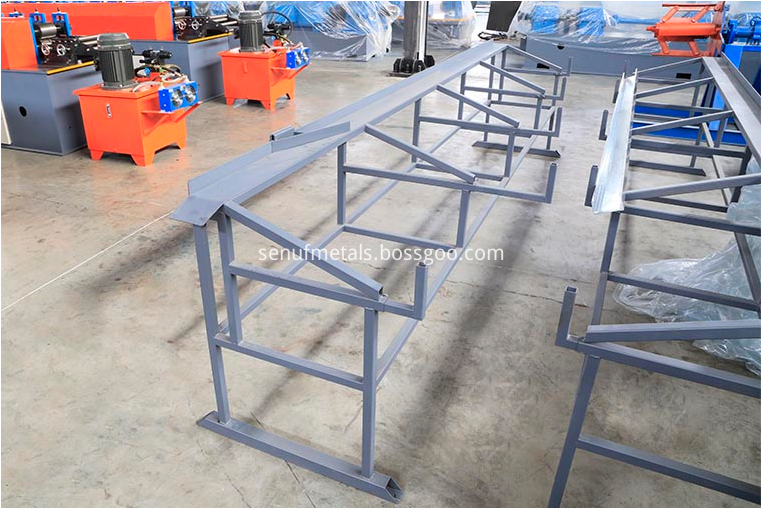

(8) CU Light Keel Roll Forming Machine Exit Rack

Un-powered, 4 meters long, one set

Collect table


Other detailes of Metal Frame Light Keel Forming Machine

Suitable for material with thickness 0.3-0.8mm,

Shafts manufactures from 45#, main shaft diameter 75mm, precision machined,

Motor driving, gear chain transmission, 12 rollers to form,

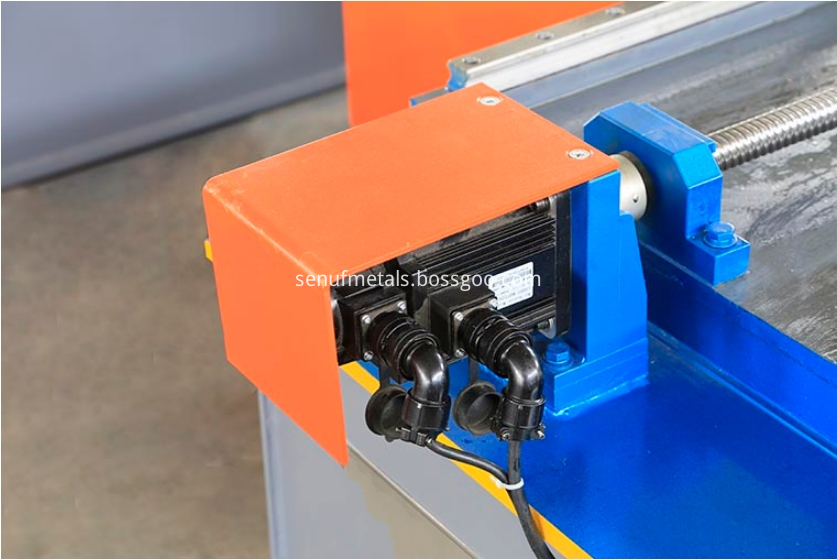

Main servo motor: 2.0kw, frequency speed control,

Forming speed: 40 / 80m/min as optional.

1566538175(1)
