Push In Brass Pneumatic Fittings
5 year ago
1/8'' 1/4'' Male Straight Brass Pneumatic Hose Fitting
BRANDO's Pneumatic Hose Fittings provide easy connection and disconnection tube without causing damage to the tube. BRANDO's Pneumatic Hose Fittings are available in a variety of types, moulds, sizes and thread types to satisfy various metric and inch tube demands. BRANDO's Pneumatic Hose Fittings could accommodate both metric size tubing and inch size tubing that are made from brass, plastic, stainless steel.
BRANDO's Pneumatic Hose Fittings Features:
1. Accommodate kinds of connection thread type: R (PT, BSPT), G (BSPP), NPT, UNF, UNC, Metric.
2. Accommodate metric size tubing OD: 3mm, 4mm, 6mm, 8mm, 10mm, 12mm, 16mm.
3. Accommodate inch size tubing OD: 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8".
Technical Data of Pneumatic Hose Fittings:

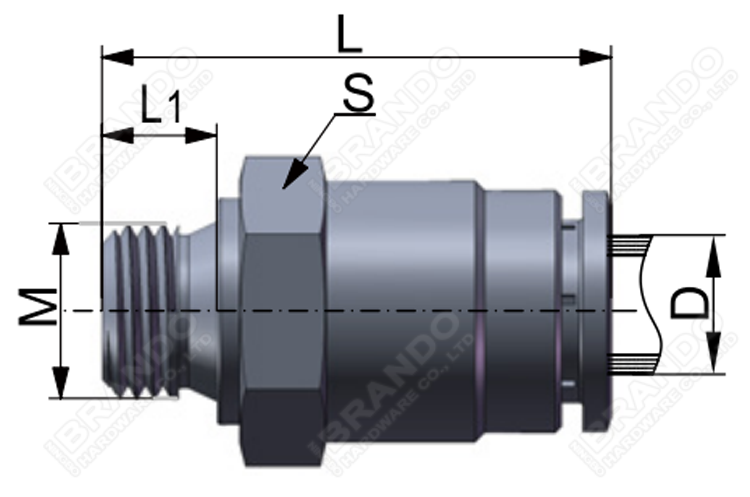

Specifications of Male Straight Pneumatic Hose Fittings:
|
Model No
|
D
|
M
|
L1
|
L
|
S
|
|
BCKH-Z2.5
|
4
|
M5X0.8
|
6
|
25
|
12
|
|
M6X1
|
6
|
25
|
12
|
||
|
M8X1
|
7
|
23
|
12
|
||
|
G1/8''
|
6
|
22
|
12
|
||
|
BCKH-Z4
|
6
|
M8X1
|
7
|
28
|
13
|
|
M10X1
|
7
|
25
|
13
|
||
|
G1/8''
|
6
|
27
|
12
|
||
|
G1/4''
|
8
|
26
|
14
|
||
|
BCKH-Z6
|
8
|
M10X1
|
7
|
28
|
14
|
|
G1/8''
|
6
|
27
|
14
|
||
|
G1/4''
|
8
|
27
|
14
|
||
|
G3/8''
|
9
|
26
|
17
|
||
|
BCKH-Z8
|
10
|
M12X1.25
|
9
|
32
|
16
|
|
G1/8''
|
6
|
29
|
16
|
||
|
G1/4''
|
8
|
31
|
16
|
||
|
G3/8''
|
9
|
29
|
17
|
||
|
G1/2''
|
10
|
26
|
22
|
||
|
BCKH-Z10
|
12
|
M16X1.5
|
10
|
31
|
19
|
|
G1/4''
|
8
|
32
|
19
|
||
|
G3/8''
|
9
|
31
|
19
|
||
|
G1/2''
|
10
|
31
|
22
|

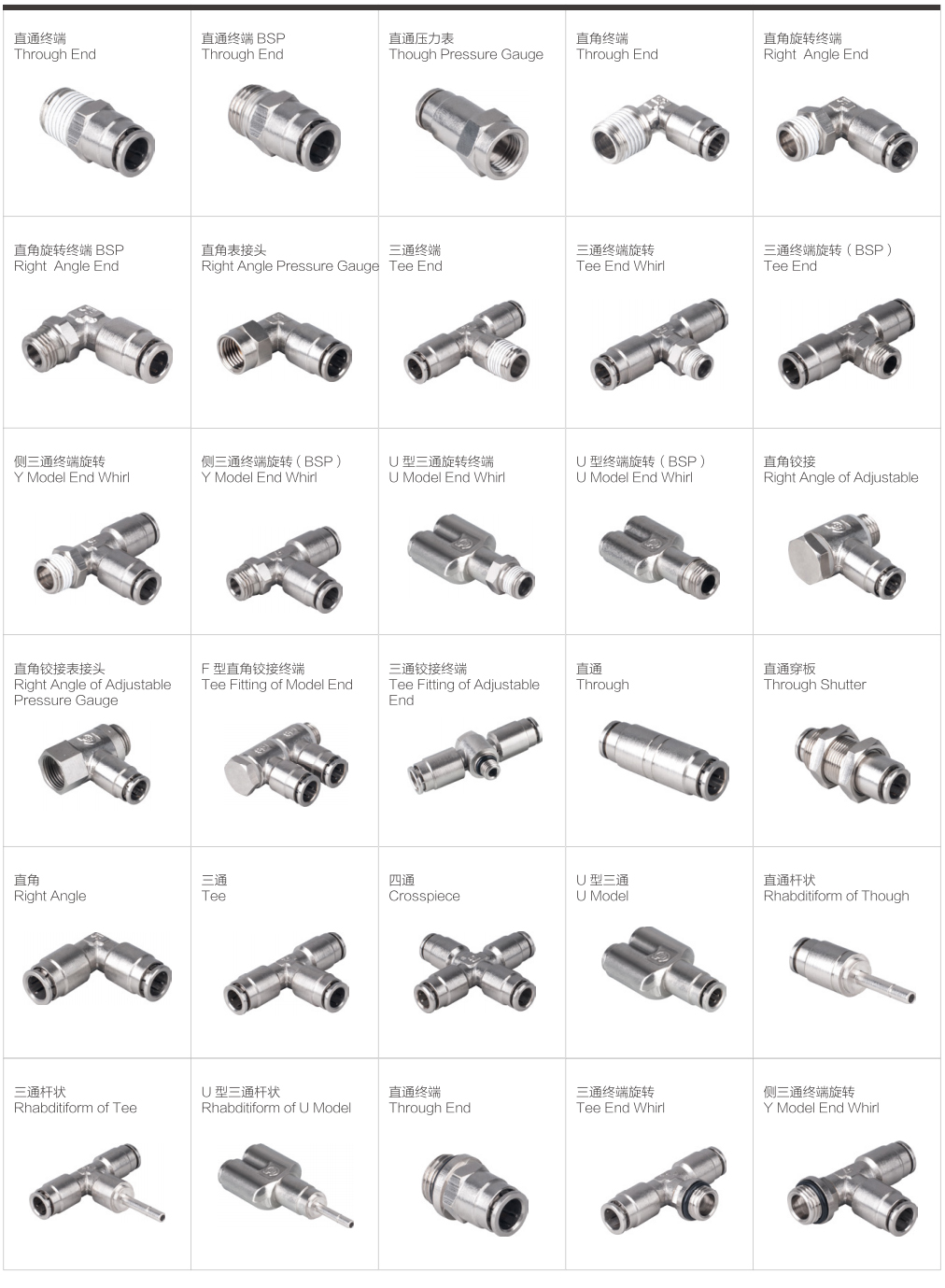

List of other Brass Pneumatic Hose Fittings:
More Pneumatic Solenoid Valves for you to choose:
*4V100 Pneumatic Valves *4V200 Pneumatic Valves *4V300 Pneumatic Valves *4V400 Pneumatic Valves
*5/2 Way Pneumatic Valves *5/3 Way Pneumatic Valves *2/2 Way Pneumatic Valves *Pneumatic Hose Fitting
Brando is a Pneumatic Solenoid Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).
Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4M220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10.
2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15.
3. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
