Product details

3/4'' BFEC Quick Mount Pulse Valve DMF-ZM-20 24V

This is DMF-ZM-20 BFEC Pulse Jet Valve; quick mount connection; NBR diaphragm; 24V DC, 110V AC, 120V AC, 220V AC, 230V AC (50/60Hz) voltages for you to choose; other voltages can be customized.

SBFEC Type Pulse Jet Valve:
1. Right Angle Pulse Jet Valve: DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S
2. Quick Mount Pulse Jet Valve: DMF-ZL-B, DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S
3. Immersion Pulse Jet Valve: DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-Y-102S
4. Straight Through Pulse Jet Valve: DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S
5. Flanged Pulse Jet Valve: DMF-ZF-25, DMF-ZF-40S

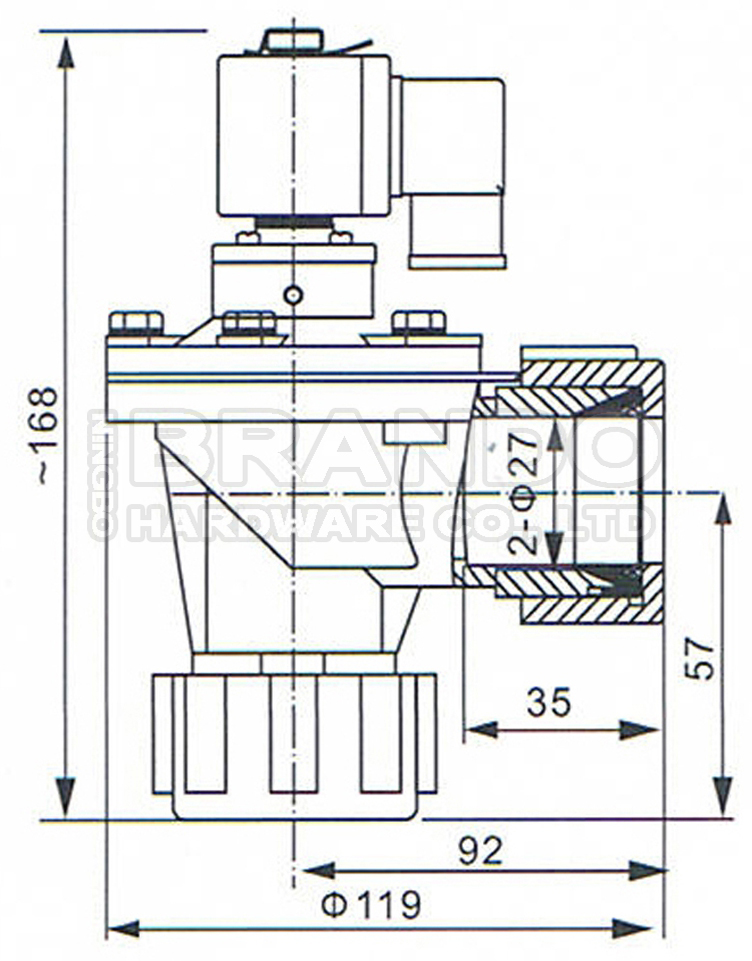

Main dimension of DMF-ZM-20 3/4'' BFEC Pulse Jet Valve:

DMF-ZM-20

Technical data of DMF Series Quick Mount Pulse Jet Valve:

Model		DMF-ZM-20	DMF-ZM-25	DMF-ZM-40S
Nominal Size		20	25	40
Port size	mm	20	25	40
	in	3/4	1	1 1/2
Blowing Area (m2)		3.5~6	8~10	12~16
Number of Diaphragms		1	1	2
Flow	Kv	17.55	26.16	45.82
	Cv	20.48	50.53	53.47
Pressure (Psi)		0.1Mpa~0.8Mpa
Temperature (℃)		-25℃ to +80℃
Voltage		AC220V, AC110V, AC24V, DC24V

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Coil and Solenoid Valve Armature Assembly.

List of All DMF Series BFEC Pulse Jet Valves:

Thread Valve	3/4''	1''	1.5''	2''	2.5''	3''	4''
Thread Valve	DMF-Z-20	DMF-Z-25	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-102S
Quick Mount Valve	3/4''	Inlet φ27	1''		1.5''
Quick Mount Valve	DMF-ZM-20	DMF-ZL-B	DMF-ZM-25		DMF-ZM-40S
Flange Valve	1''			1.5''
Flange Valve	DMF-ZF-25			DMF-ZF-40S
Embedded Valve	1''	1.5''	Outlet φ62mm	Outlet φ75	Outlet φ89	Outlet φ114	Outlet φ102
Embedded Valve	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S	DMF-Y-102SA

Brando Supply:

*SBFEC Type Pulse Jet Valve *Goyen Type Pulse Jet Valve *ASCO Type Pulse Jet Valve *Other Dust Collector Valve

*Solenoid Valve Coil *Solenoid Armature/Stem *Diaphragm Repair Kit *Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
