80m Tof Sensor TTL Laser Distance Sensor 10000Hz

80m Industrial Tof Sensor is a LiDAR technology laser distance sensor, which is great for autonomous vehicles(AVs). With phase ranging detection, LiDARs sensor can detect a 10%~90% reflectivity target at 80m (too low or too high will affect the test range).

Lidar Sensor Parameters:

Model: HSLD-80m

Measuring Accuracy: ±10cm(<50m) /±1%(>50m)
Measuring Range: 0.1 meters - 80 meters
Resolution: 1cm
Measuring frequency: Up to 10000 Hz
Invisible measuring: 905nm
Laser type: Class I

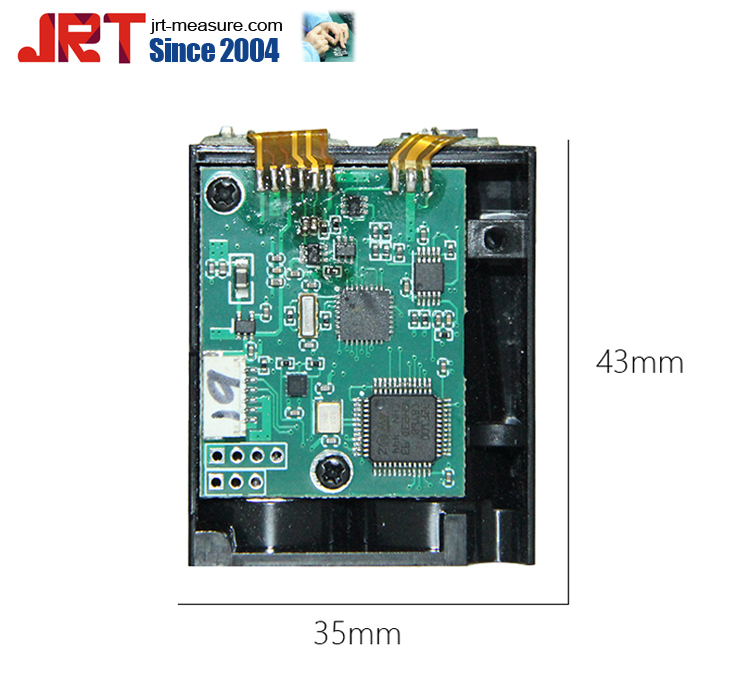

Size: 43*35*21mm
Weight: 20g
Input voltage: 8-36V
Interface options: Serial/usb/rs232/rs485/bluetooth
Working temperature: -15℃~50℃
Storage temperature: -40℃~85℃

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

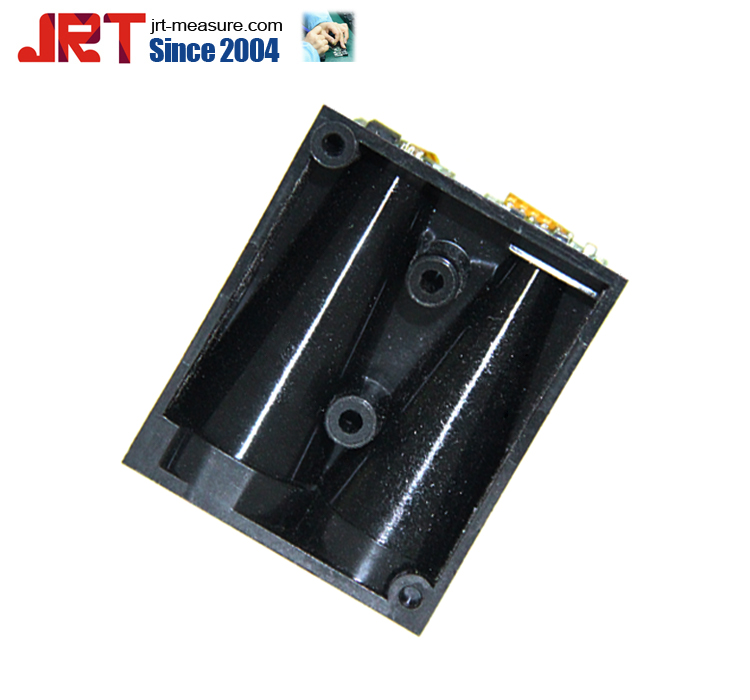

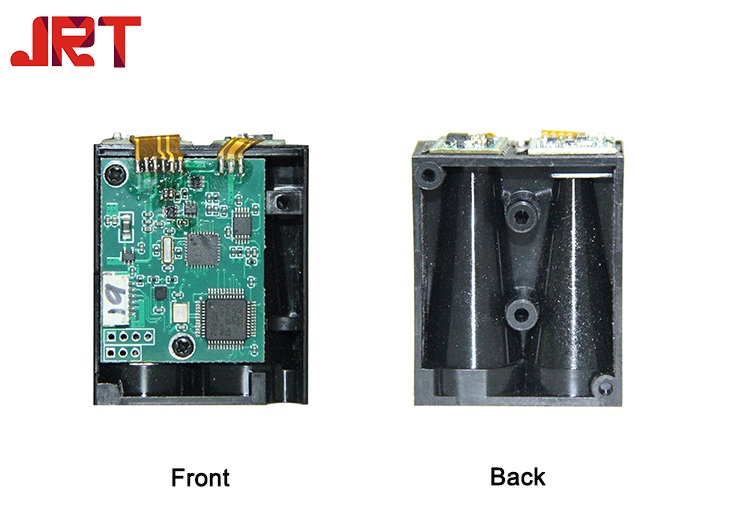

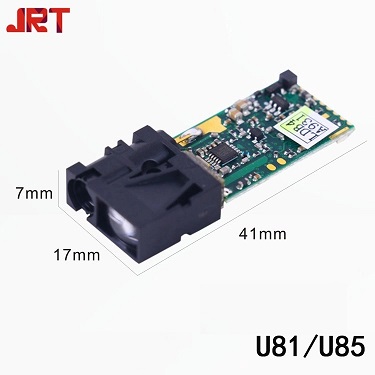

Detailed Pictures:

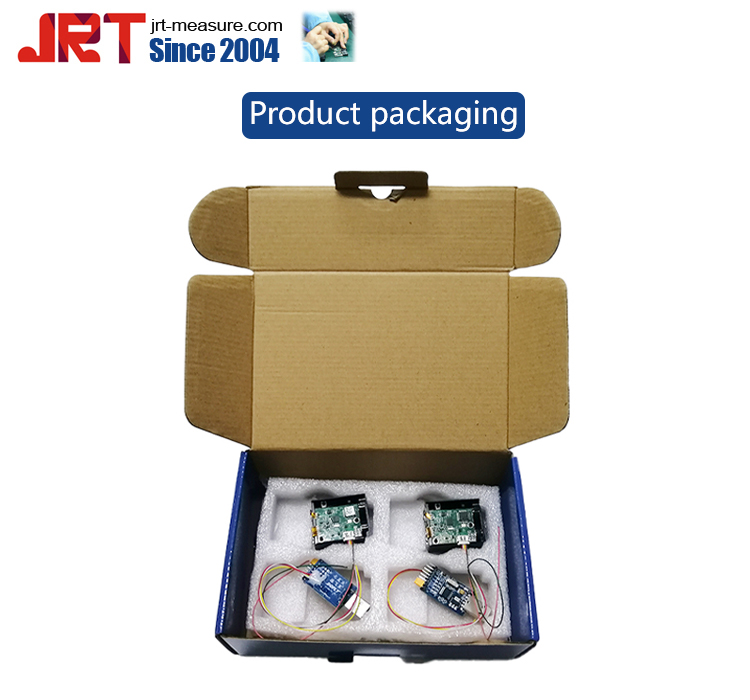

How to package 80m Tof Laser Distance Sensor

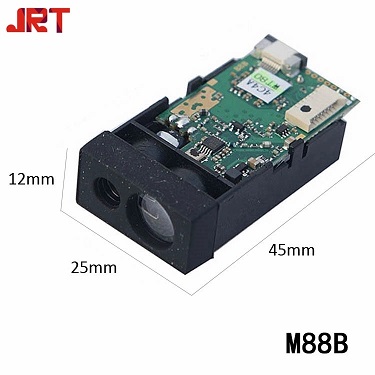

More Styles:
