200m High Frequency Laser Sensor LiDAR For Drones

Hello Dear! We, Chengdu JRT Meter Technology Co. Ltd., are expert manufacturer of various kinds of laser distance sensors and measurement solutions in China. The ttl smallest laser measuring device sensor can measure 10 m, and can be used to connect with your Arduino device with +-1mm high accuracy. According to the accurate feature, usually engineers used in their industrial fields.  If you need us send you detailed Spec. & price region & 2~3 pcs of part as sample etc, please tell us in time.
It will be useful if you reply us. Some Parts description is as follows.
Model No.: HSLD01-b2012281 for example

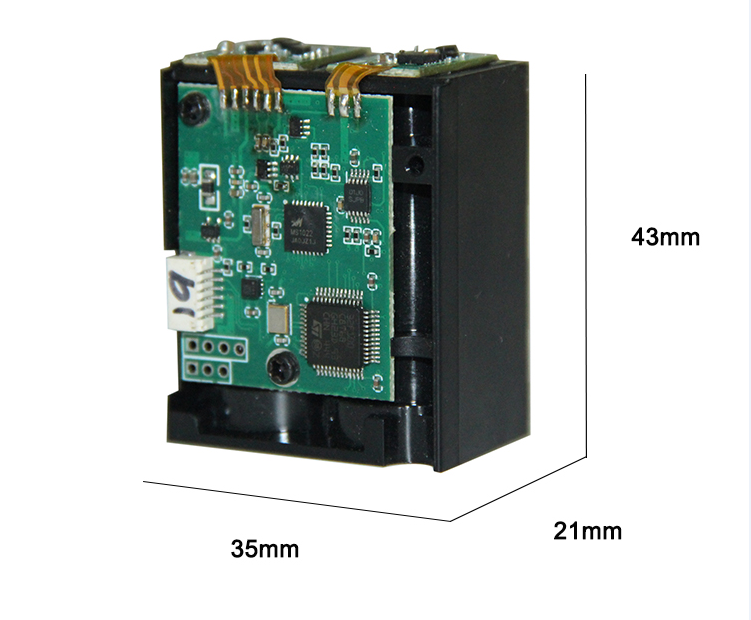

Size: 43*35*21mm
Distance: 0.1-200m
Applications: drones, robots collision avoidance etc.

Key parameters:

1. Reliable, fast, precise
Three interfaces optional: ttl, usb, rs232
Accuracy: +-±3~5cm
High frequency: 10000 Hz
2.Small, long range
Size:43*35*21mm
Measuring range, max up to 200 m

Detailed parameters

Measuring Accuracy: ±3~5cm(<50m) /±1%(>50m)*
Measuring Range: 0.1- meters - 200 meters
Resolution: 1cm
Measuring frequency: Up to 10000 Hz
Invisible measuring: 905nm
Laser type: Class I
Size: 43*35*21mm
Weight: 20g
Input voltage: 8-36V
Interface options: Serial/usb/rs232/rs485/bluetooth
Working temperature: -15℃~50℃
Storage temperature: -40℃~85℃

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Frequency would be affected by environment.

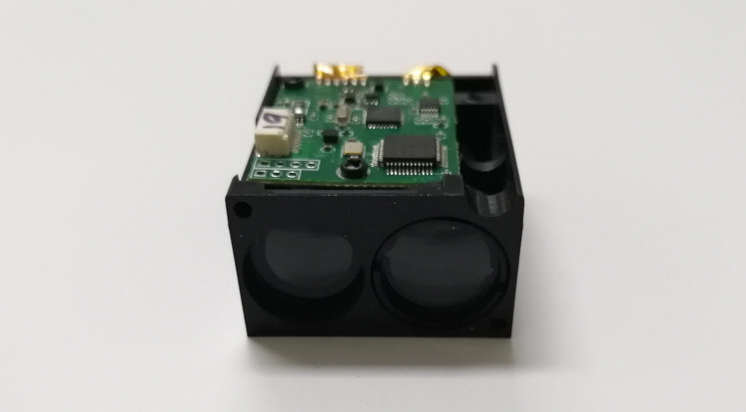

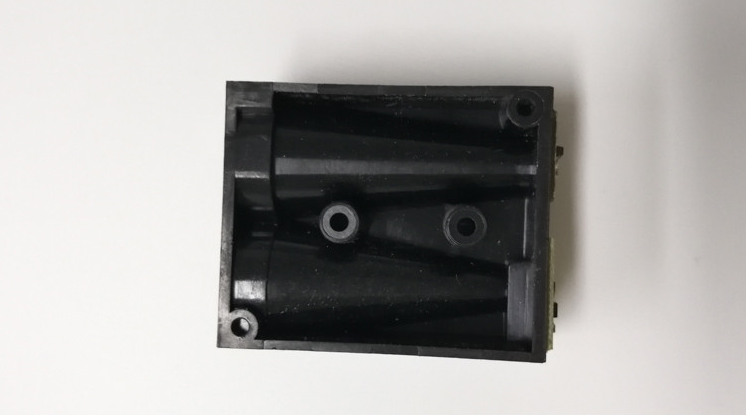

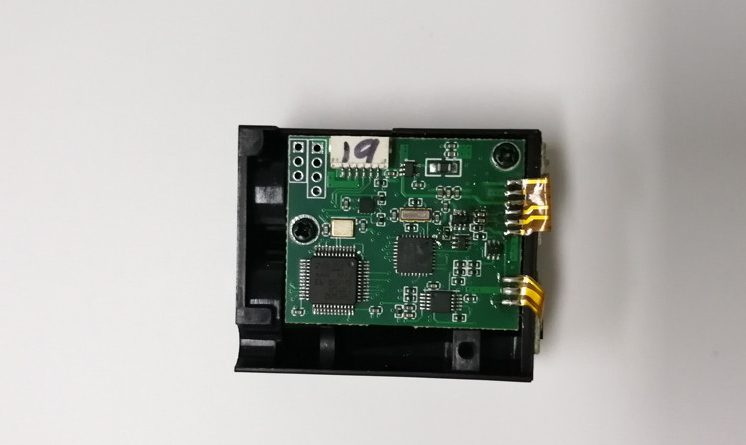

More Detailed Pictures:

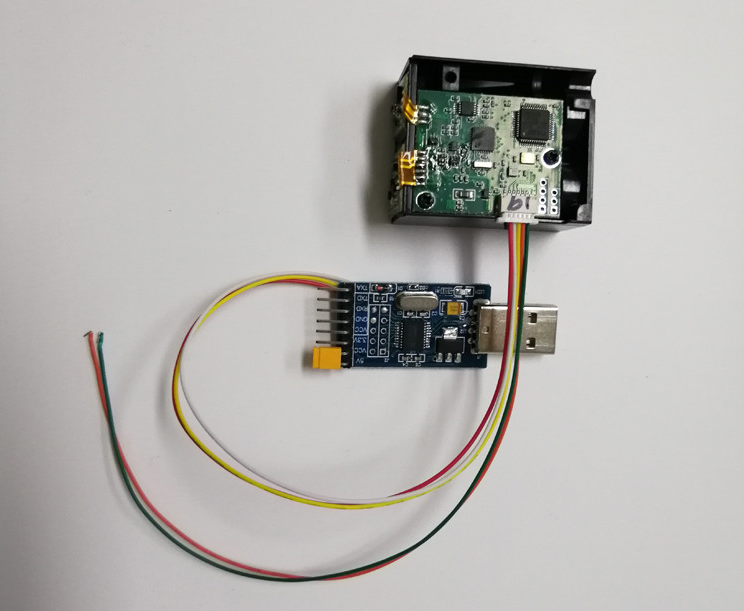

TTL & USB connector
