Hi,
Are you looking for a small range rangefinder with high accuracy? The small laser distance sensor you see can measure from 0.03m to 20m, which is also a accurate laser distance sensor up to 1mm. It already widely used in Industrial Automation Measurement, Agricultural Automation Measurement(harvesting robots),Warehousing Management,Construction Survey(crane,truck height etc.),Smart Robots Measurement(like, sweeping robot etc.),Length and Width Measurement,Intelligent Transport System(car collision avoidance),Medical Measure,Lift Measure etc. many industrial laser measurement solutions.
If you want to have the price range for: the 20m precision distance sensor 1mm. Please contact us now. Thank you in davance

Industrial Laser Distance Meter Sensor Feature:
1. Good for Industrial Application Measurement System
2. Support single measurement/continous measurement
3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional

Specifications of Industrial Laser Distance Sensor:

Range: 0.03-20 meters
Invisible measuring: 620nm-690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth

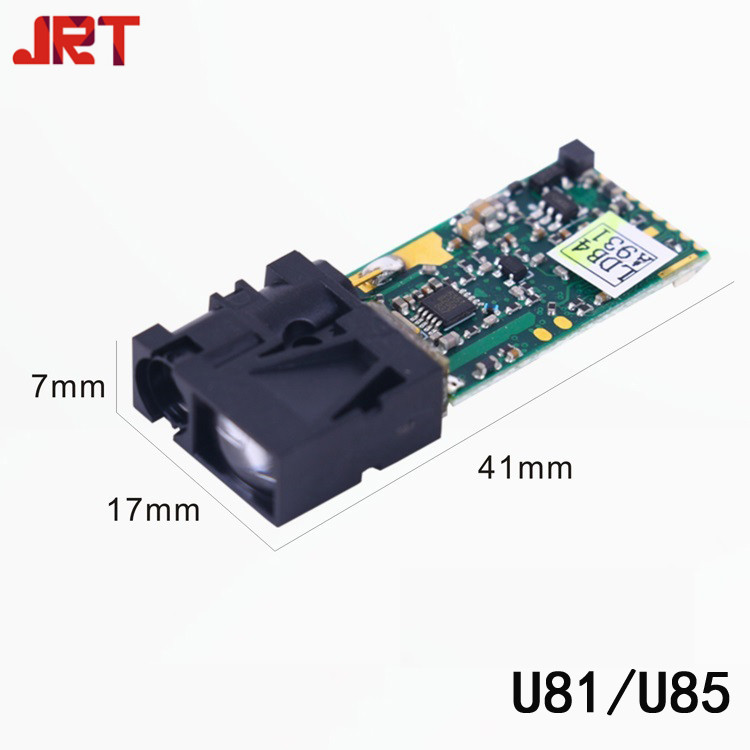

Size: 41*17*7mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Some advices:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

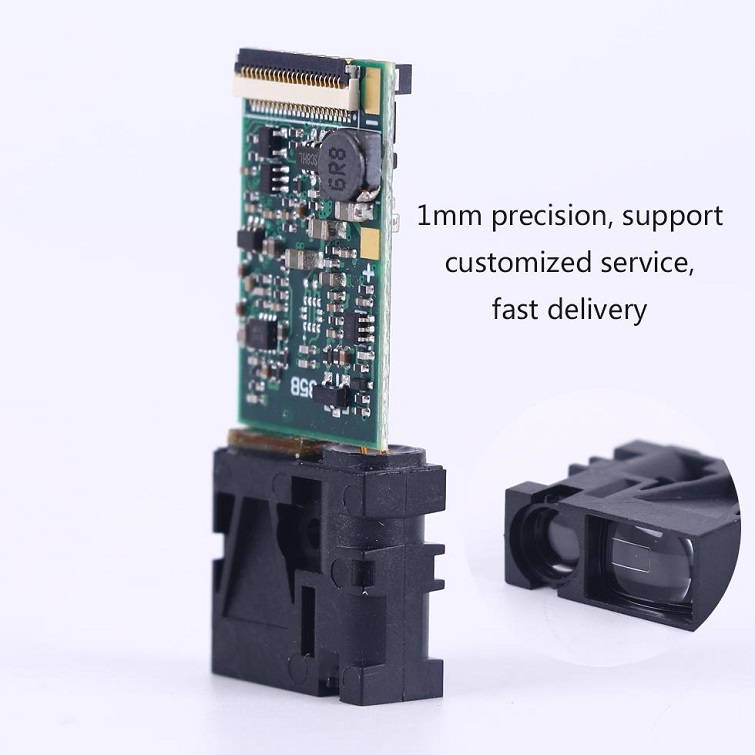

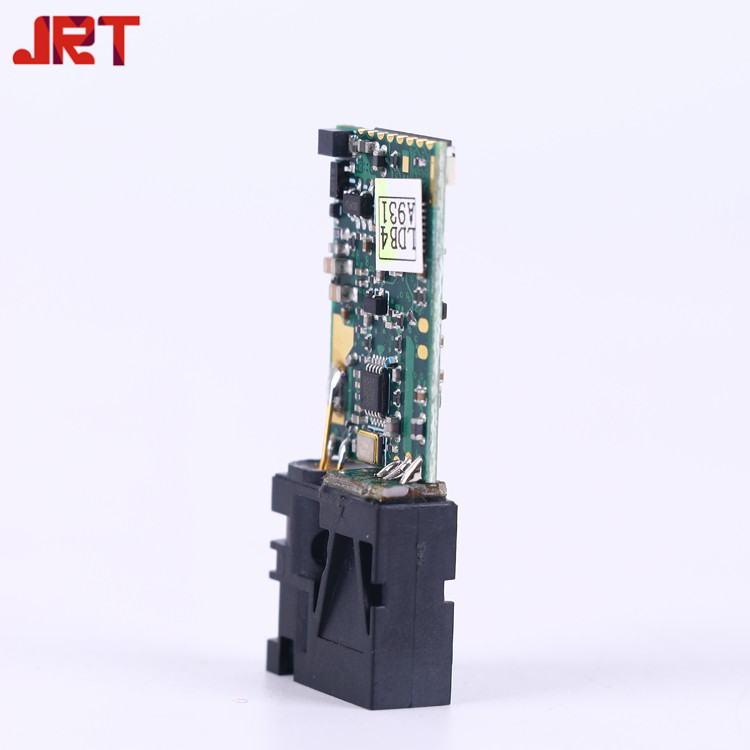

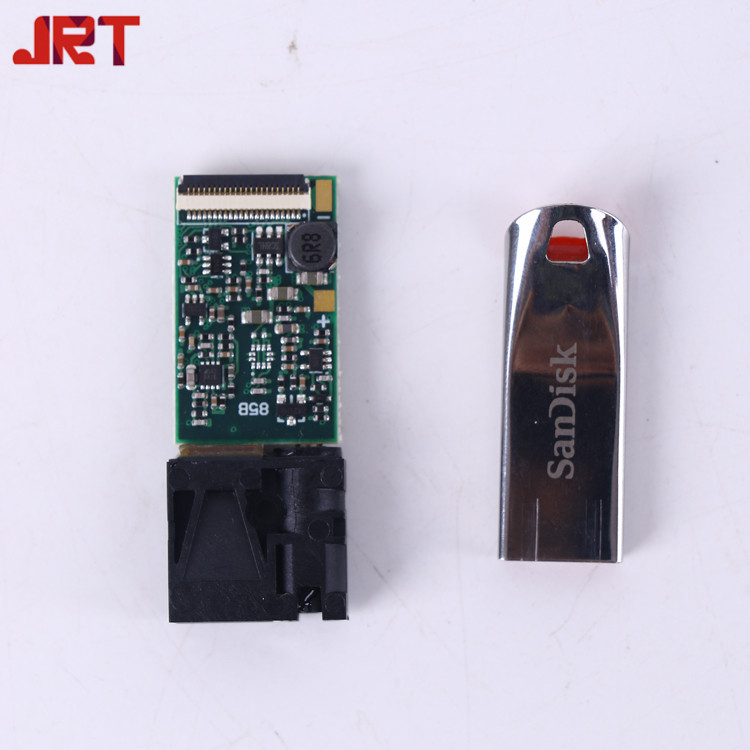

Detailed Pictures

The command to read data when the parameter is we setting:
Continuous measurement:
AA 00 00 20 00 01 00 04 25

Continuous measurement in slow mode:
AA 00 00 20 00 01 00 05 26

Continuous measurement in fast mode:
AA 00 00 20 00 01 00 06 27

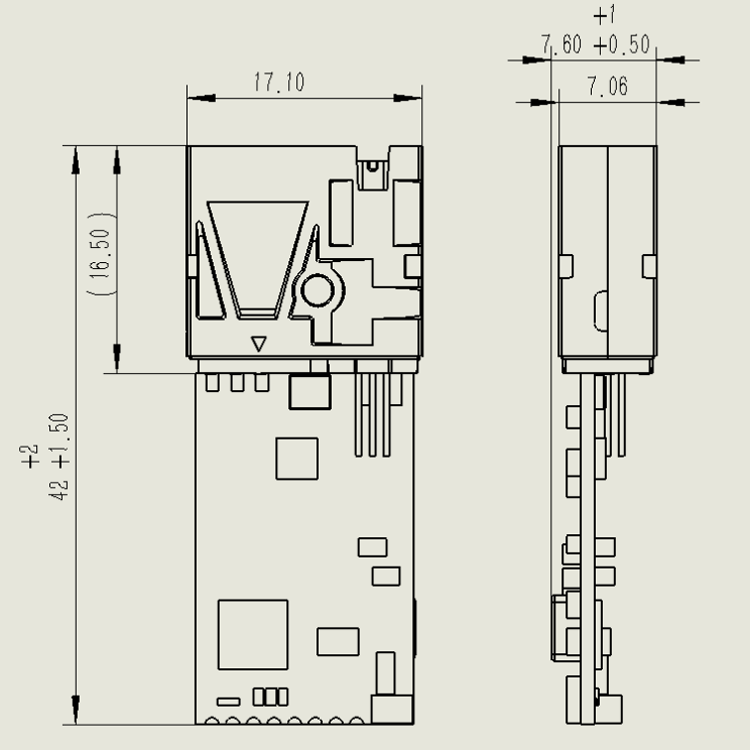

Diagram for the Length Width Height Module

How to package your laser distanc sensor?

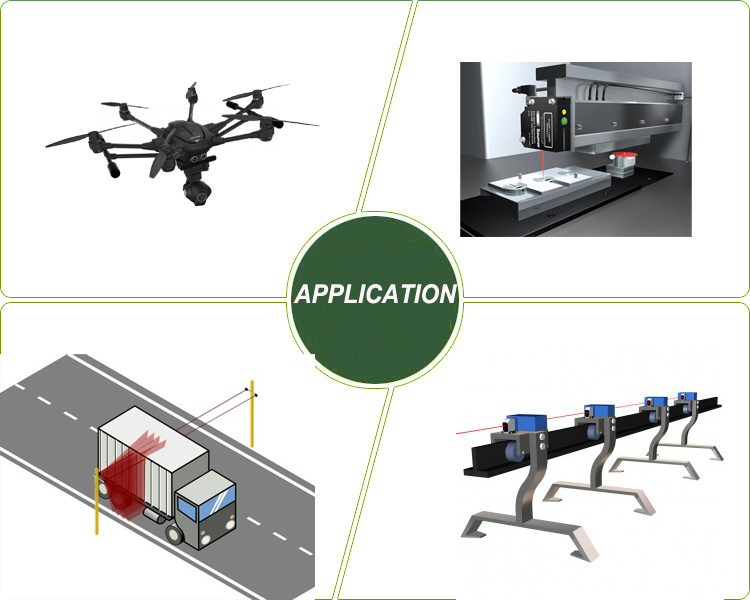

More applications:
