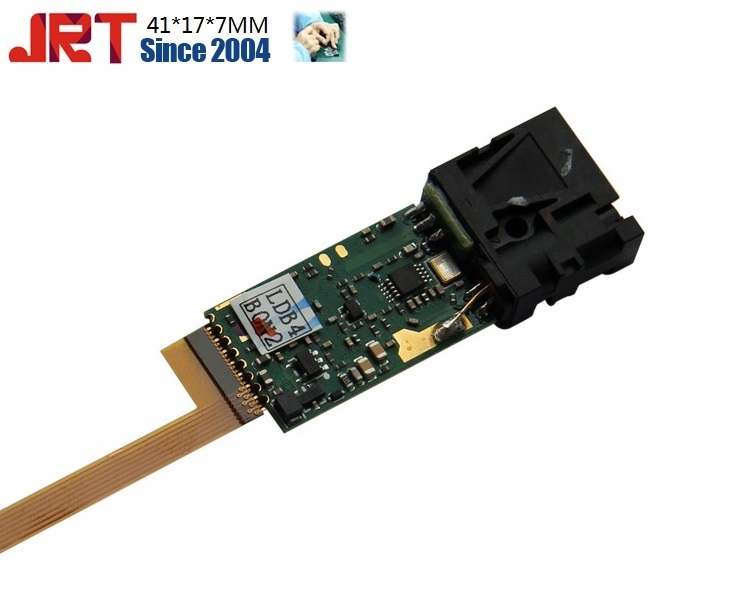

20m FPC Laser Distance Measurement Sensors.mp4

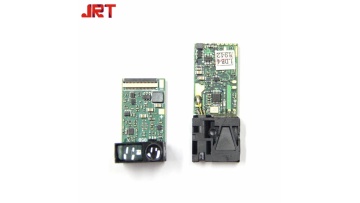

Industrial Laser Arduino Distance Sensor 10 m
Hello Dear! We, Chengdu JRT Meter Technology Co. Ltd., are expert manufacturer of various kinds of laser distance sensors and measurement solutions in China. The ttl smallest laser measuring device sensor can measure 10 m, and can be used to connect with your Arduino device with +-1mm high accuracy. According to the accurate feature, usually engineers used in their industrial fields.  If you need us send you detailed Spec. & price region & 2~3 pcs of part as sample etc, please tell us in time.
It will be useful if you reply us. Some Parts description is as follows.
Model No.: U85-1101 for example
Baud Rates: 19200bps
Size: 41*17*7mm
Distance: 0.03-10m
Applications: robots etc.
Best Regard

Key parameters:

1. Reliable, fast, precise
Three interfaces optional: ttl, usb, rs232
Accuracy: +-1mm
Measuring time: 0.4s-4s
2.Small, long range

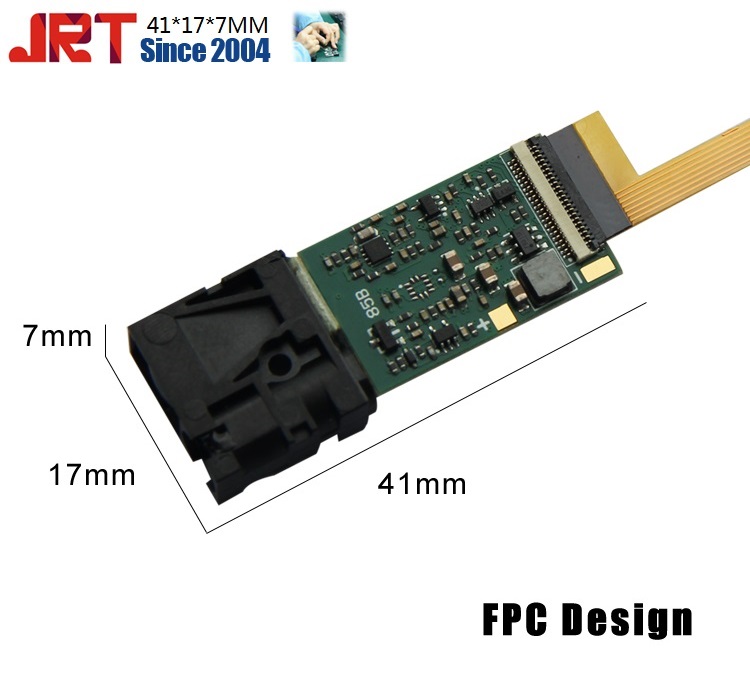

Size:41x17x7mm
Measuring range up to 10 m

U81 U85 laser working principle

The optical distance sensors achieve 10m short-range presence detection using a visible, focused laser beam spot. According to the latest version, customers can test the laser range components simply via using all available distance functions commond of the hexadecimal system. High resolution up to 1mm, the arduino distance measurement laser usually used to some samrt monitoring project.

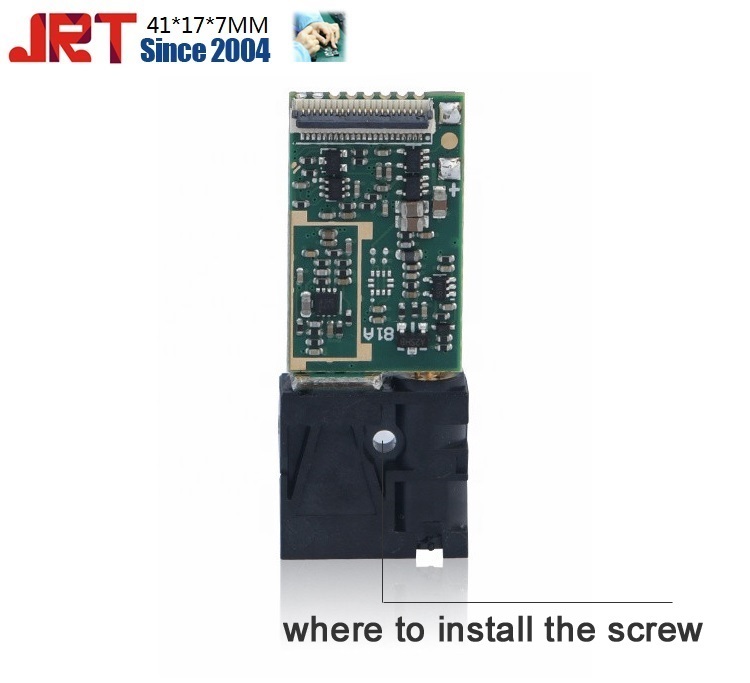

How to install the distance measurement sensor

Detailed parameters

Range: 0.03 meters - 10 meter
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth
Size: 41*17*7mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.

More Detailed Pictures:

Diagram for the Laser Distance sensor:

Testing data from our cusomers
JRT U85 Industrial Distance Sensor, we also called it Phase laser distance sensor, using single transmission single receving principle, low power consumptionan and high accuracy.

When you choose and send the continuous fast measure command, it will start to measure.This is one of data for Continuous Fast Mode:
[2019-10-09 11:02:01.732 T]AA 00 00 20 00 01 00 06 27
[2019-10-09 11:02:02.237 R]AA 00 00 22 00 03 00 00 05 F6 00 45 65
[2019-10-09 11:02:02.642 R]AA 00 00 22 00 03 00 00 05 F6 00 32 52
[2019-10-09 11:02:03.047 R]AA 00 00 22 00 03 00 00 05 F5 00 28 47

Stop the Continuous Fast Mode Measurement:

[2019-10-09 11:02:08.765 T]58

Customer Feedbacks:
Thank you,
U81 works fine!
I would appreciate if you could send me the official invoice.
