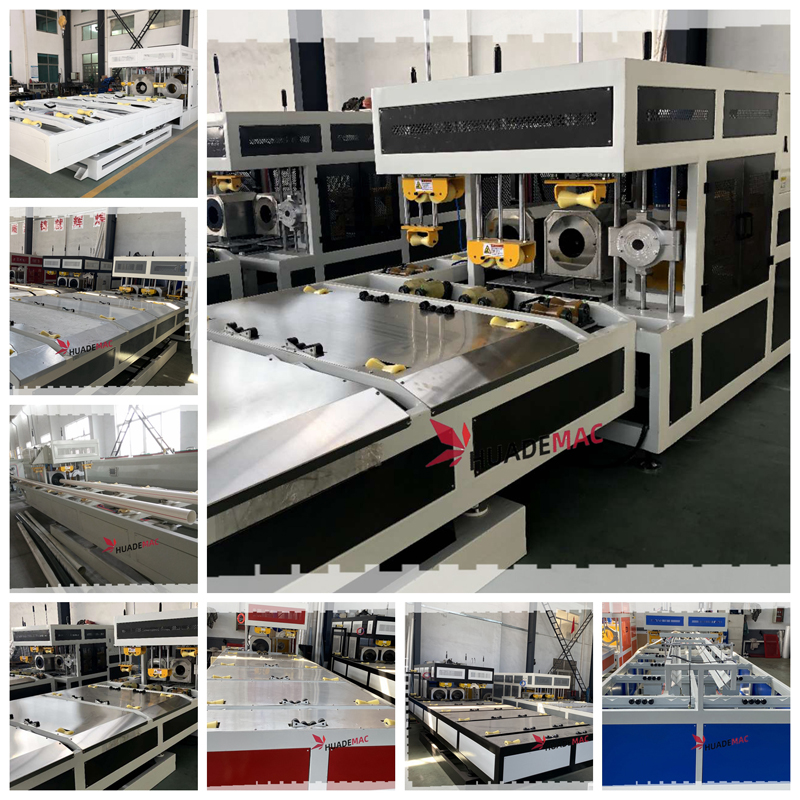

Introduction of PVC Pipe socket machine
HD Fully automatic belling machine is suitable for 'R' Type and 'U'Type & 'J' Type sockets.
The belling scope is for 20 mm to 800 mm PVC pipe diameter.
The belling machine equipped with haul-off device and the program interface, it can be used with the mainframe,also can be used alone. When expanding,pipe moves smoothly and accurately but not damnify.
This type machine adopts infrared heating methods,and accurate orifice size molding. The control panel don"t have the conversion switch to control over the type of solvent for expansion socket (vertical) and ring for flexibility expansion socket (R).Expanding way is very easy choice and technics adaptability is strong, the main electrical control components are imported, system performance is stable and reliable
Technical Data:
|
Model |
Pipe Diameter (mm) |
Heating Power(Kw) |
Total Power(Kw) |
Cool Mode |
|
SGK63 |
Φ20-Φ63 |
4 |
5.53 |
Air or water |
|
SGK250 |
Φ63-Φ250 |
4 |
10.1 |
Water |
|
SGK315 |
Φ110-Φ400 |
7.2 |
12.1 |
|
|
SGK400 |
Φ160-Φ400 |
15.6 |
22 |
|
|
SGK700 |
Φ315-Φ710 |
25.4 |
36.2 |
