Black PET telescopic woven mesh pipe
3 year ago
PET braided sleeve is a kind of network pipe with good performance, which combines flame retardancy and halogen-free. It is woven from PET according to the selection, and has good flexibility, flame retardancy, abrasion resistance and fire resistance. It can also weave network pipes of different patterns and colors according to user needs, which can meet the application regulations of various industrial production industries. In particular, the structure of PET braided sleeve can be expanded to 1.5 times the original size, It is more suitable for the encapsulation electronic harness. The mesh size of PET woven mesh pipe is determined by the wire pitch and diameter. At this moment, we need to make it clear that the wire pitch will be increased when the diameter of the braided wire will not change. In addition, we need to use high strength PET woven mesh pipe to make it difficult for the PET Self wrap braided sleeve to grind the screen in a short time.
|
Technique Data-Sheet |
|
|
Material: |
PET |
|
Working Temperature: |
-50℃---150℃ |
|
Melting Point: |
250℃ |
|
Flammability: |
UL94 V0 |
|
Certified: |
UL、RoHS、REACH、 |
|
Standard Colors: |
Black,white,grey,yellow and So on. Or customized. |
|
Cutting Tool: |
Hot knife |
|
Application: |

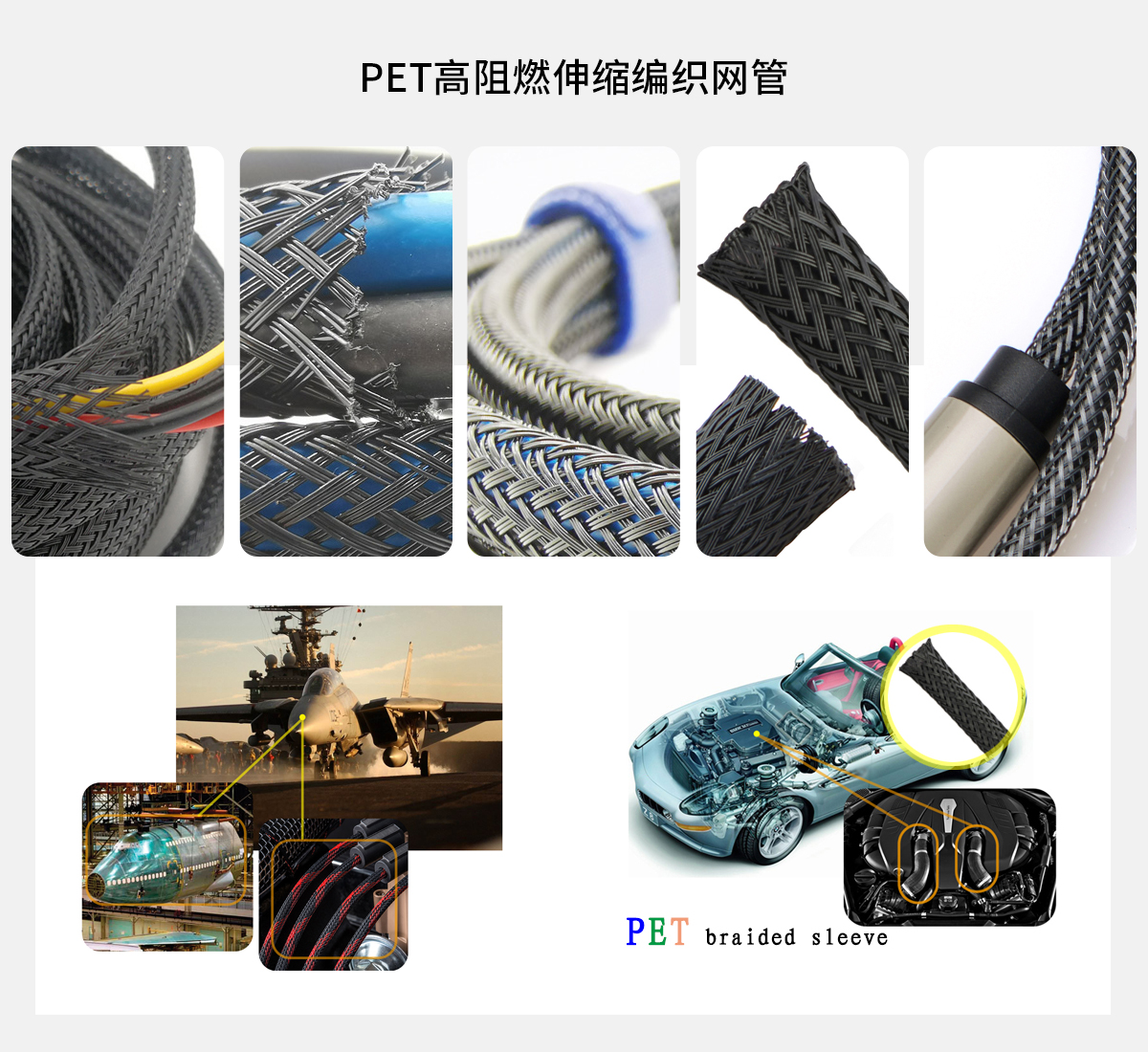

The products are widely used in automotive switchgear, railway, high-speed railway, aviation and other industries with high requirements for flame retardant level, and play the role of sorting, protecting wire harness and flame retardant. |
Product Drawing
|
Size specification |
||||||
|
Model No. |
Natural Width（W） |
Radio of expandable |
Packing(L) |
|||
|
|
Inch |
MM |
Min（I） |
Max(O) |
|
|
|
BS-002 |
1/16″ |
2 |
2 |
4 |
1000m/Roll |
|
|
BS-003 |
1/8″ |
3 |
3 |
6 |
1000m/Roll |
|
|
BS-005 |
3/16″ |
5 |
5 |
10 |
1000m/Roll |
|
|
BS-006 |
1/4″ |
6 |
6 |
12 |
500m/Roll |
|
|
BS-008 |
5/16″ |
8 |
8 |
16 |
500m/Roll |
|
|
BS-010 |
3/8″ |
10 |
10 |
20 |
500m/Roll |
|
|
BS-012 |
1/2″ |
12 |
12 |
24 |
350m/Roll |
|
|
BS-014 |
9/16″ |
14 |
14 |
28 |
350m/Roll |
|
|
BS-016 |
5/8″ |
16 |
16 |
32 |
350m/Roll |
|
|
BS-019 |
3/4″ |
19 |
19 |
38 |
250m/Roll |
|
|
BS-022 |
7/8″ |
22 |
22 |
44 |
250m/Roll |
|
|
BS-025 |
1″ |
25 |
25 |
50 |
100m/Roll |
|
|
BS-030 |
19/16″ |
30 |
30 |
60 |
100m/Roll |
|
|
BS-035 |
11/8″ |
35 |
35 |
70 |
100m/Roll |
|
|
BS-040 |
25/16″ |
40 |
40 |
80 |
100m/Roll |
|
|
BS-050 |
2″ |
50 |
50 |
100 |
100m/Roll |
|
|
BS-060 |
19/8″ |
60 |
60 |
120 |
50m/Roll |
|
|
BS-070 |
11/4″ |
70 |
70 |
140 |
50m/Roll |
|
|
BS-080 |
25/8″ |
80 |
80 |
160 |
50m/Roll |
|
|
BS-090 |
7/2″ |
90 |
90 |
180 |
50m/Roll |
|
|
BS-100 |
31/8″ |
100 |
100 |
200 |
50m/Roll |
|
Unit：mm
Remark:
1.W means natural and flat width
2.Because of the expandability on the sleeve,the following sizes are considered to be the same：16mm=15mm，19mm=20mm，32mm=30mm，38mm=40mm，51mm=50mm，60mm=65mm,90mm=95mm,100mm=110mm。
And so on, the greater the width. The larger the tolerance allowable.
3.Special packaging, special colors and product width parameters not listed in the table can be customized according to customer requirements.
4.Please refer to the sample acknowledgement for detailed product parameters.
