Product details
Product Overview
RS8I-M(535-560)
RS8I-M(535-560)

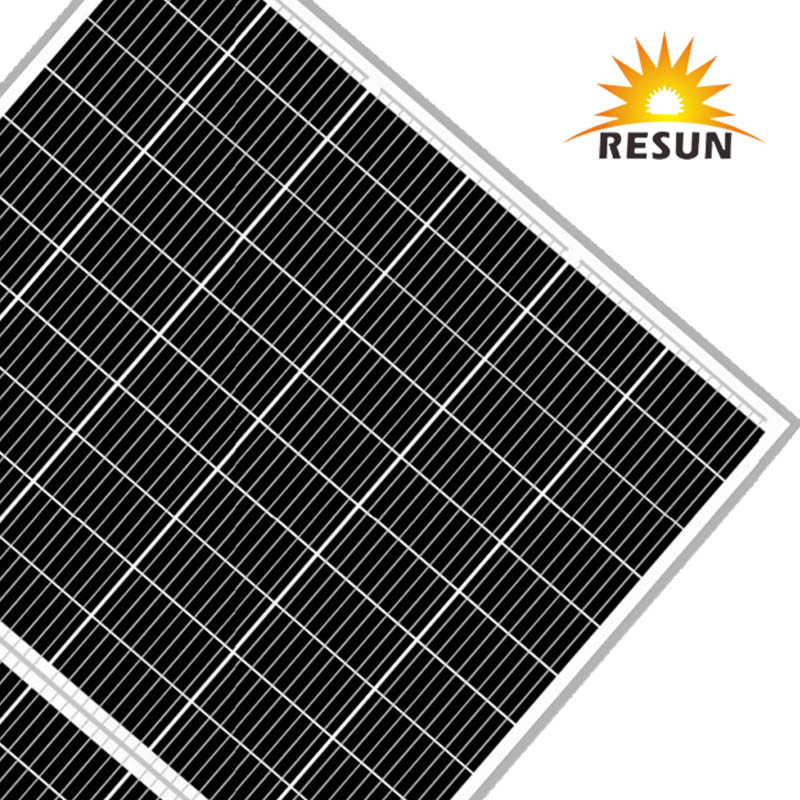

RS7I-M HALF-CELL series is produced with high efficiency multi-busbar cells, which can reduce the module internal power loss to improve
its conversion efficiency, as well as lower the failure risk caused by cracks and broken busbar to enhance the module reliability. Combined
with half-cell technology, the solar module is highly resistant to hot-spot crisis caused by shadow effect. The full black design makes the module appearance outstanding and ideal for building installations. Mono Solar Panel 535~560W solar power is for solar systems
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
ELECTRICAL DATA(STC)
|
Rated Power in Watts-Pmax(wp)
|
535W
|
540W
|
545W
|
550W
|
555W
|
560W
|
|
Open Circuit Voltage-Voc(V)
|
49.60V
|
49.80V
|
50.00V
|
50.02V
|
50.40V
|
50.60V
|
|
Short Circuit Current-Isc(A)
|
11.04A
|
11.09A
|
11.13A
|
11.18A
|
11.23A
|
11.28A
|
|
Maximum Power Voltage-Vmp(V)
|
38.80V
|
39.00V
|
39.20V
|
39.40V V
|
39.60V
|
39.80V
|
|
Maximum power current-Imp(A)
|
10.42A
|
10.47A
|
10.51A
|
10.56A
|
10.61A
|
10.65A
|
|
Module Efficiency(%)
|
20.69%
|
20.89%
|
21.08%
|
21.27%
|
21.47%
|
21.66%
|
STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3
ELECTRICAL DATA(NOCT)
Maximum Power-Pmax(WP)
405W
408W
412W
416W
420W
424W
Open Circuit Voltage-Voc(V)
47.40V
47.60V
47.80V
48.0V
48.20V
48.40V
Short Circuit Current-Isc(A)
11.04A
11.09A
11.13A
11.18A
11.23A
11.28A
Maximum Power Voltage-Vmp(V)
38.80V
39.00V
39.20V
39.40V
39.60V
39.80V
Maximum Power Current -Imp(A)
10.42A
10.47A
10.51A
10.56A
10.61A
10.65A
NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.
TEMPERATURE&MAXIMUM RATINGS
Nominal Operating Cell Temperature(NOCT)
45°C±2°C
Temperature Coefficient of Voc
-0.32%/°C
Temperature Coefficient of Isc
0.05%/°C
Temperature Coefficient of Pmax
-0.39%/°C
Operational Temperature
-40~+85°C
Maximum System Voltage
1500V(IEC)
Max Series Fuse Rating
20A
Limiting Reverse Current
20A
MECHANICAL DATA
Solar Cells
Mono-crystalline 182x91mm,
Cell configuration
144cells(6x24)
Module dimensions
2279x1134x35mm
Weight
29KGS
Front Cover
3.2mm Tempered Glass
Frame Material
Anodized Aluminum Alloy
J-Box
IP68
Cable
4mm2(IEC)/12AWG(UL),900mm
Connectors
MC4 or MC4 Comparable
Standard Packaging
30pcs/Pallet
PACKAGING CONFIGURATION
Packing Type
20GP
40GP
40HQ
Piece/Pallet
30
30
30
Pallet/Container
5
10
20
Piece/Container
150
300
600
Resun Solar Energy Co., Ltd was founded in 2007,engaged in developing and manufacturing photovoltaic solar products
with capcity 1GW/Year.
All our solar modules are certified such as CE, TUV, SEC , CEC, ISO, INMETRO ,PID-free, LVD, EMC and insured by CHUBB.
Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after
sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe,
Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.
