Radar level meter

3 week ago
4 0
Product details
This radar level meter uses high-frequency radar waves for level measurement. Radar waves propagate at the speed of light. After being emitted by the level meter, they are reflected back when they encounter the surface of the measured medium and are received by the level meter. By accurately calculating the time difference between the emitted wave and the reflected wave, combined with the propagation speed of the radar wave in the air, the liquid level height can be quickly and accurately obtained. This non-contact measurement method avoids direct contact with the measured medium, thereby effectively reducing the risk of wear and corrosion and greatly extending the service life of the equipment. ​
Its measurement accuracy is extremely high, reaching the millimeter level. Whether it is measuring massive amounts of liquid in large oil storage tanks or monitoring small changes in liquid levels in chemical reactors, it can provide accurate and reliable data. At the same time, it has excellent anti-interference ability, is not affected by factors such as medium density, humidity, steam, dust and stirring, and can work stably under various harsh working conditions. For example, in the crude oil storage tank area of ​​the refinery, facing the complex environment, our radar level meter can still accurately measure the liquid level, providing a reliable basis for the storage and transportation of crude oil. ​
The installation and maintenance of this radar level meter are also very convenient. The standardized installation interface can be easily adapted to various containers. In addition, the intelligent diagnostic system is integrated inside to monitor the equipment operation status in real time, detect and solve potential problems in time, and reduce maintenance workload and downtime.

Jiangsu Meian Automation Instrument Co., Ltd.'s leading products cover five major categories of products, including Level Instruments, Pressure Instruments,Temperature Instrument, Flow Meters, calibration instruments, and Transmitter. Among them, liquid level meters, pressure meters, flow meters, and Differential pressure transmitter have passed the SIL safety certification, and the two categories of products, liquid level meters and pressure meters, have obtained explosion-proof certificates. They are favored by many domestic dealers and users, laying a solid foundation for the long-term development of Meian Instruments.

Product Attributes:
Transmitting frequency 76GHz~81GHz
Measurement range: MATLM78x0: 0.3m~60m
MATLM78x2: 0.6m~120m
MATLM78x1: 0.08m~30m
MATLM78x3: 0.08m~10m
Measurement accuracy: ±1mm
Measurement interval: MATLM782x: fastest 100msLm783x: 1s
Beam angle: 3°/8°/20°
Use dielectric constant range: >=2
Power supply range: 12~28.0VDC
Communication method: LM782x: MODBUS bus LM783x: HART
Signal output: LM782x: 4~20mA or RS-485 LM783x: 4~20mA
Fault output: 3.8mA, 4mA, 20mA, 21mA, hold
On-site operation/programming: 128x64 dot matrix display/4 buttons configurable host computer setting software
Industrial temperature/humidity "" T0: -40~85℃C/≤95%RH; T1: -40~200℃; T2: -40~500℃; T3: -40~1000℃
Shell material aluminum alloy, stainless steel
Process connection type: pipe thread/ Universal flange/anti-corrosion flange/sanitary chuck/quartz isolation flange
Process pressure: -0.1~2MPa
Product size: 100*270mm
Cable inlet: M20*1.5
Recommended cable: AWG18 or 0.75mm
Protection level: IP67
Explosion-proof level: ExdiaⅡCT6
Installation method: ExdiaⅡCT6
Net weight/gross weight: 2.480Kg/2.995Kg
Packing box size: 370*270*180mm

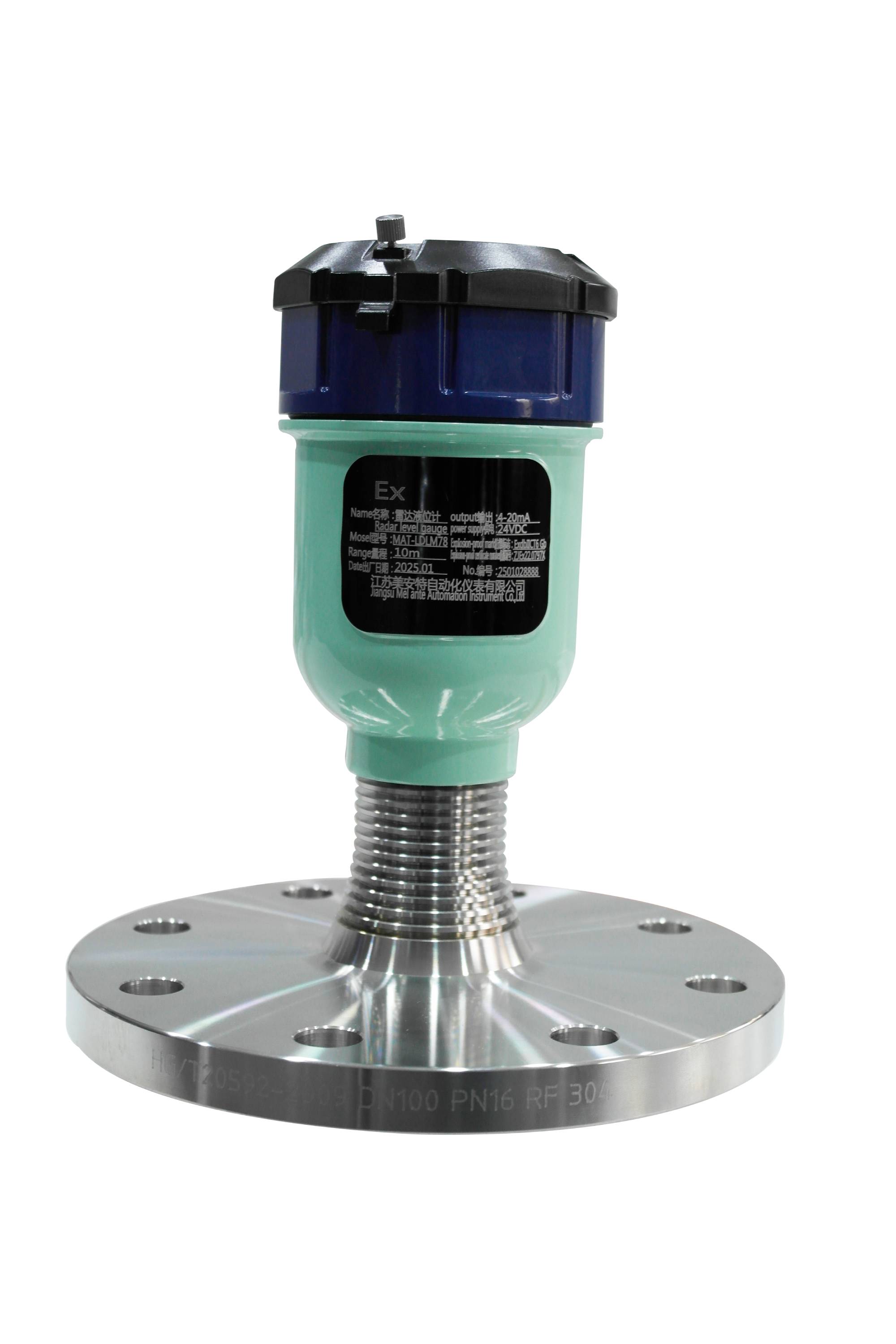

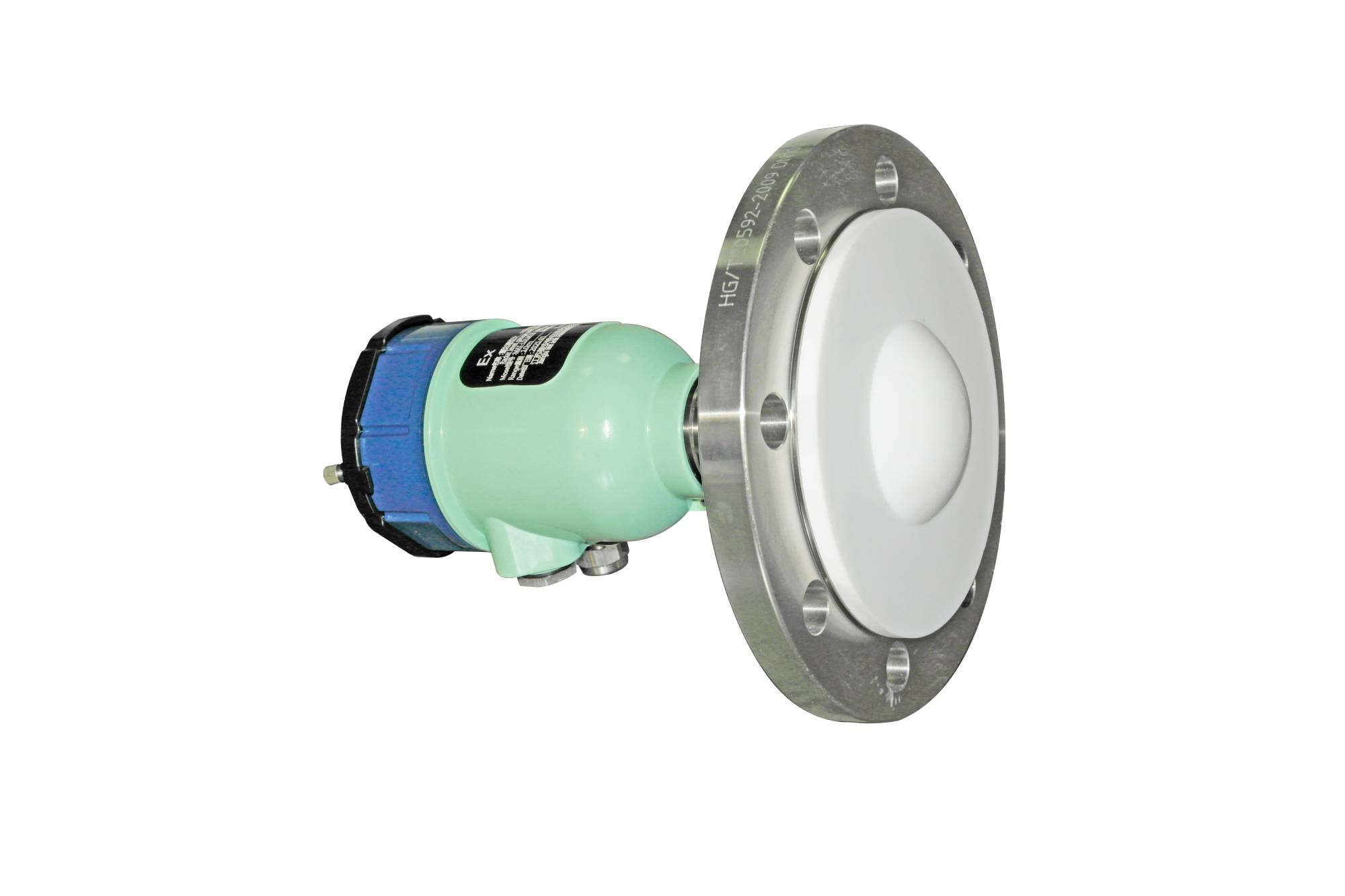

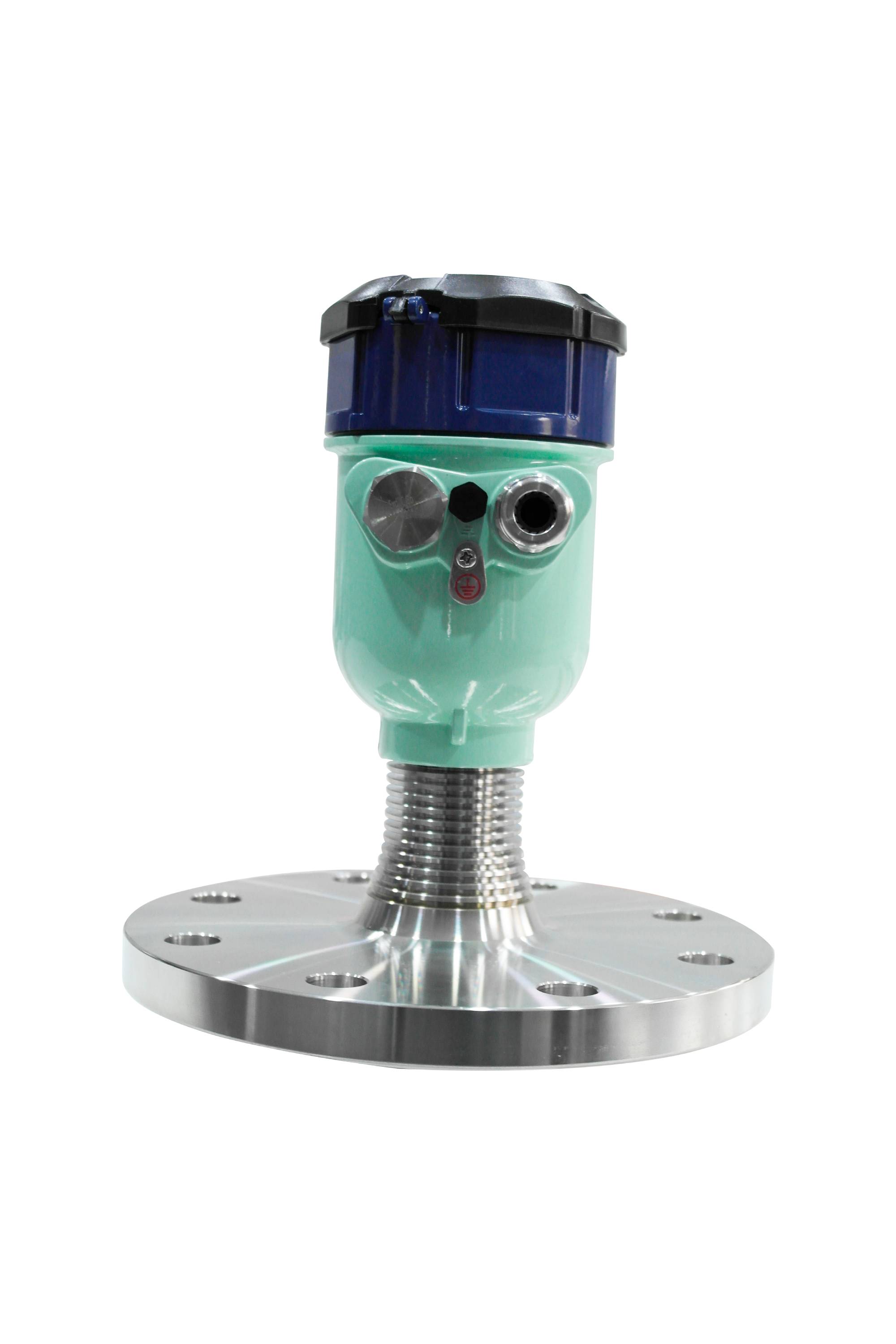

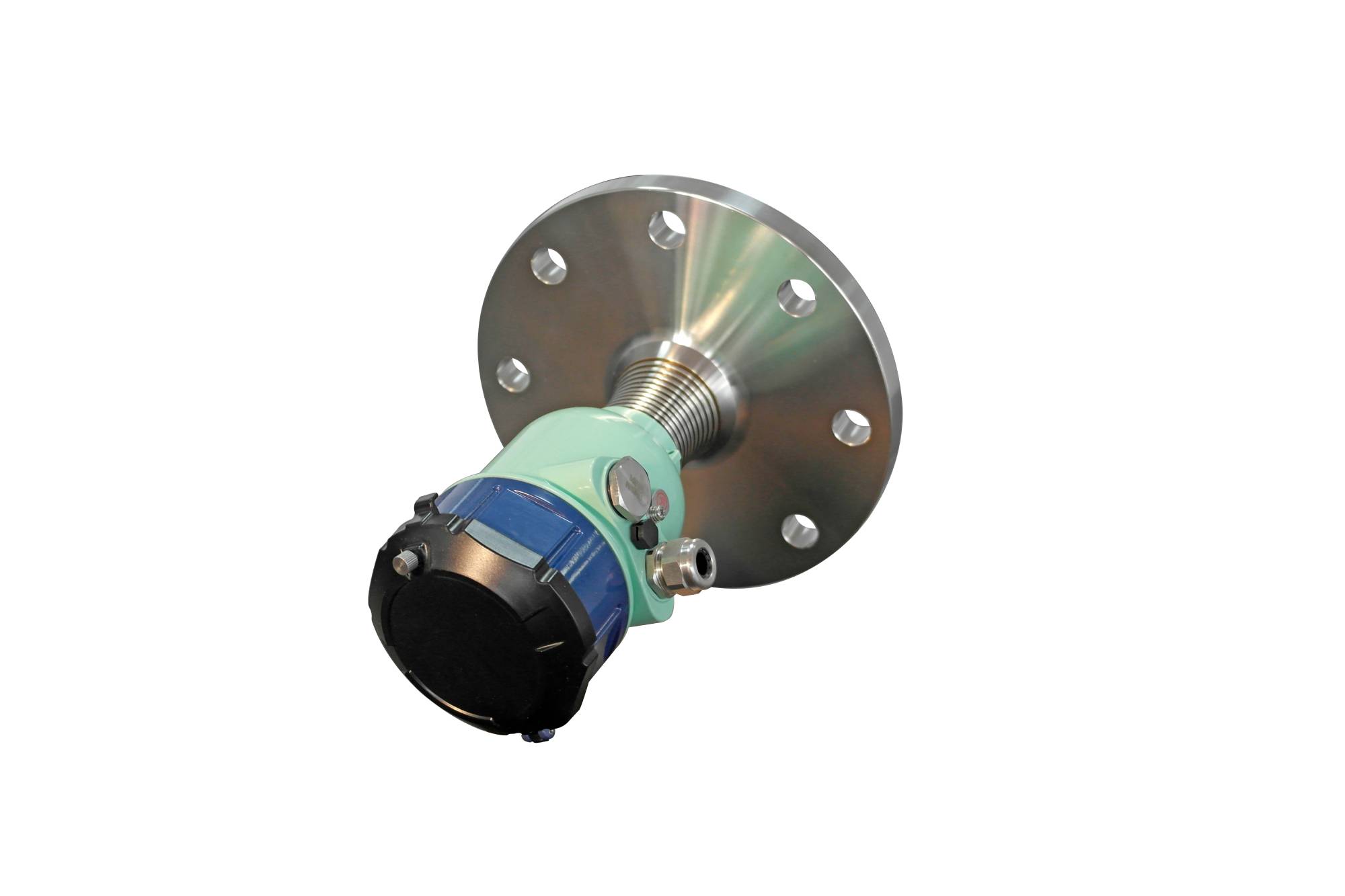

Detail Pictures:
Radar level gaugeRadar level gaugeRadar level gaugeRadar level gauge
