Pressure differential transmitter single flange 2

3 week ago
4 0
Product details
Product Description:
The single flange differential pressure transmitter is an instrument that excels in the field of industrial measurement and is designed for accurate measurement of differential pressure. It has a simple and compact design, which not only saves installation space, but also facilitates quick installation in various complex industrial environments. The transmitter is made of high-quality materials, and its flange part has been specially treated with excellent corrosion resistance and mechanical strength, and can adapt to various harsh working conditions, including high temperature, high pressure and highly corrosive media.
In terms of performance, the single flange differential pressure transmitter has the characteristics of high precision and high stability. It uses advanced sensor technology to quickly and accurately sense pressure changes and convert them into accurate electrical signal output. The transmitter has a wide measurement range and can be flexibly adjusted according to different application requirements. Whether it is a small differential pressure change or a large pressure difference, it can achieve accurate measurement. In addition, it also has good linearity and repeatability, which can ensure long-term stable measurement results and provide reliable data support for the control and monitoring of industrial production processes.
Single flange differential pressure transmitters are widely used in chemical, petroleum, electric power, metallurgy and other industries. In chemical production, it can be used to measure the pressure difference in the reactor to accurately control the reaction process; in the petroleum industry, it can be used to monitor the pressure changes in the pipeline to ensure the safety and stability of oil transportation; in the power system, it can monitor the pressure of boilers, condensers and other equipment in real time to ensure the normal operation of the equipment.

Jiangsu Meian Automation Instrument Co., Ltd.'s leading products cover five major categories of products, including liquid level meters, temperature meters, flow meters, calibration instruments, and pressure meters. Among them, liquid level meters, pressure meters, flow meters, and temperature meters have passed the SIL safety certification, and the two categories of products, liquid level meters and pressure meters, have obtained explosion-proof certificates. They are favored by many domestic dealers and users, laying a solid foundation for the long-term development of Meian Instruments.

Product Attributes:
The installation flange of the MAT-3751LT single crystal silicon flange type liquid level transmitter adopts ANSI standard, with specifications of 3” and 4”. The flange grade is 150LB (2.5MPa), and the flange installation dimensions are shown in the following chart. If the user adopts GB-9116-88 standard, L=80, 100, PN=2MPa.
The liquid contact diaphragm materials are 316L, Hastelloy C-276, Monel, etc. If the user does not specify, it is supplied with 3”/150LB installation flange and liquid contact diaphragm material 316L.
Measurement accuracy: ±0.1%~±0.5%FS
Range: 0~1Mpa
Output signal: 4~20mA, HART protocol

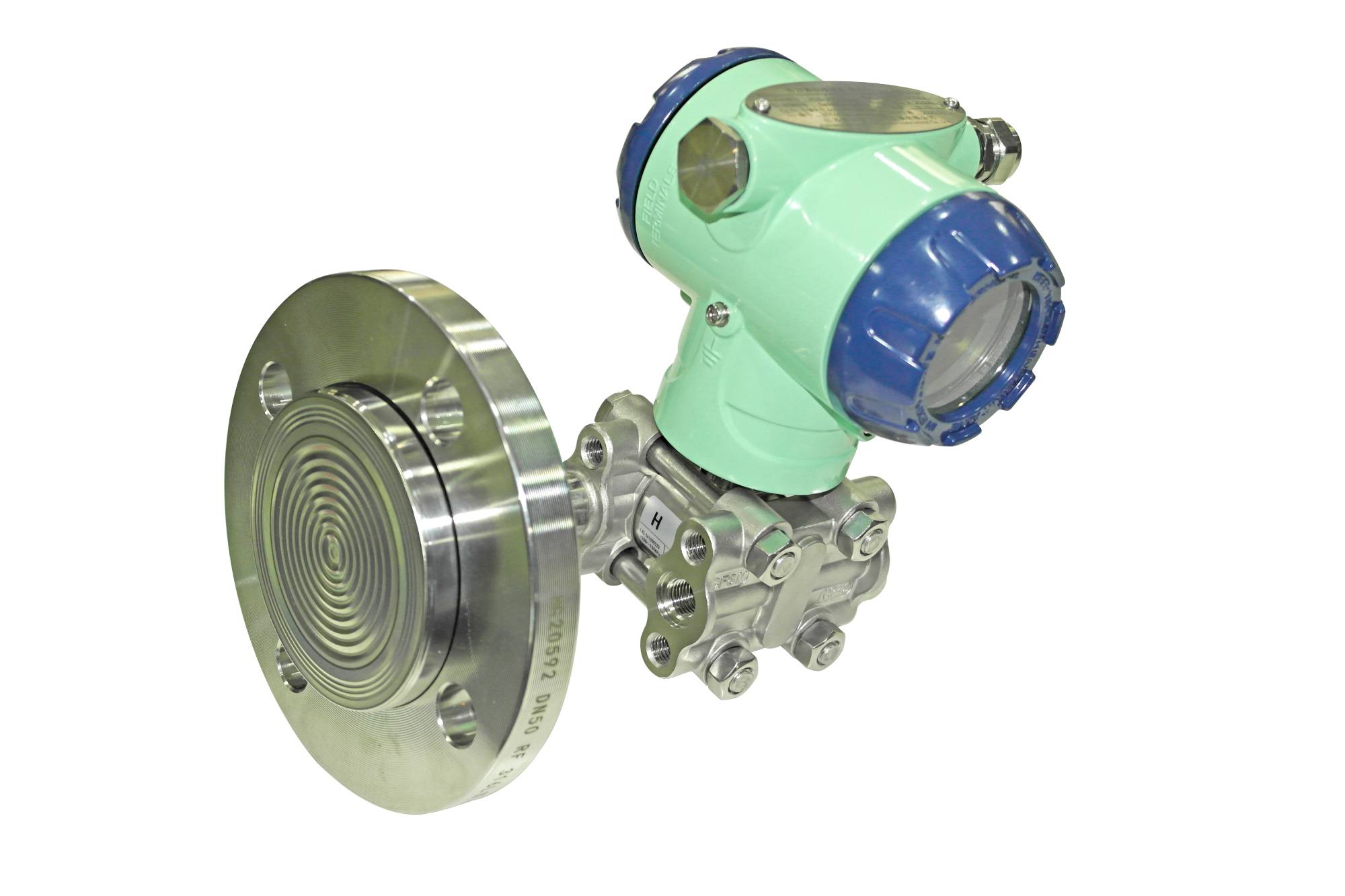

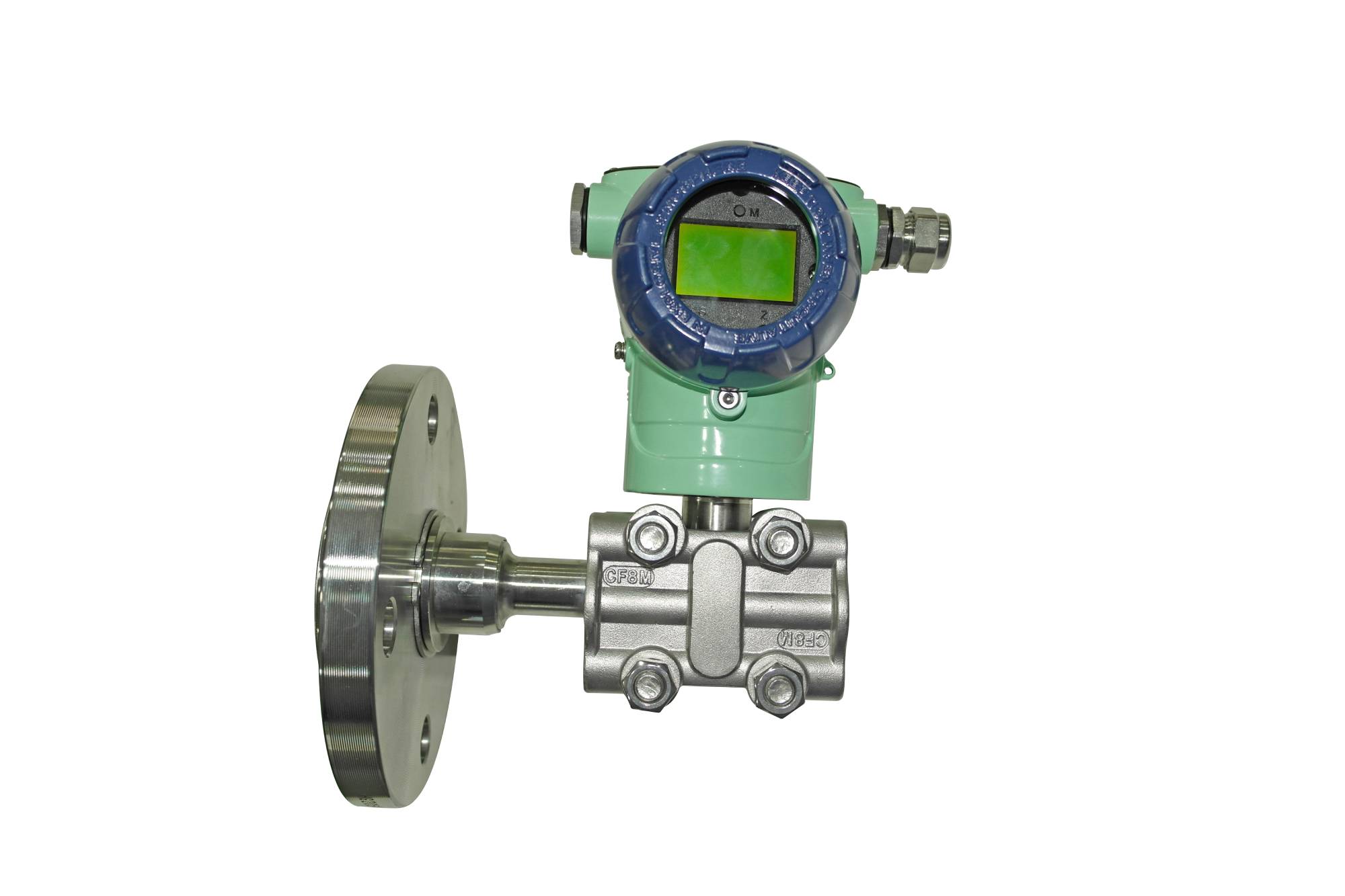

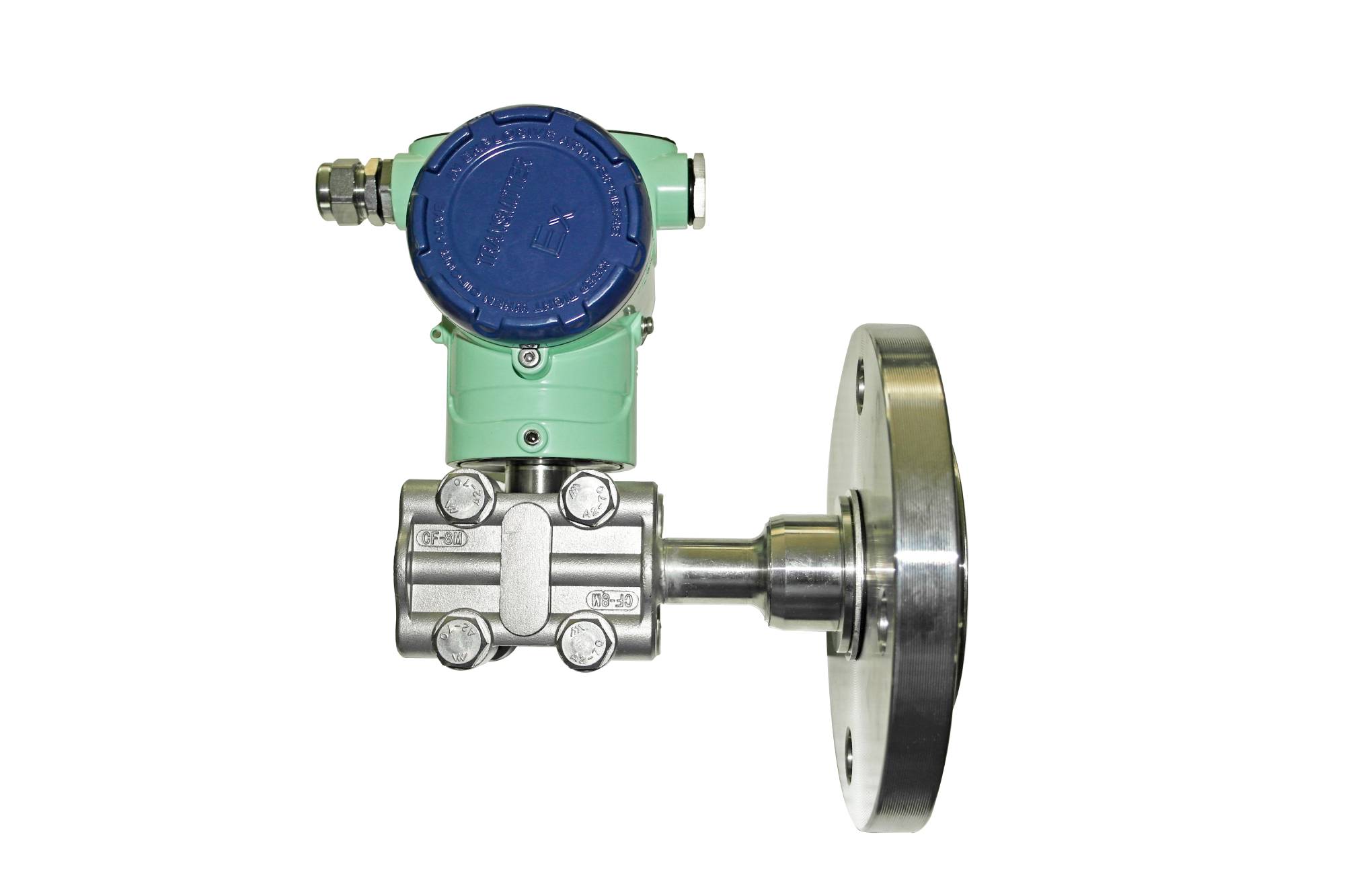

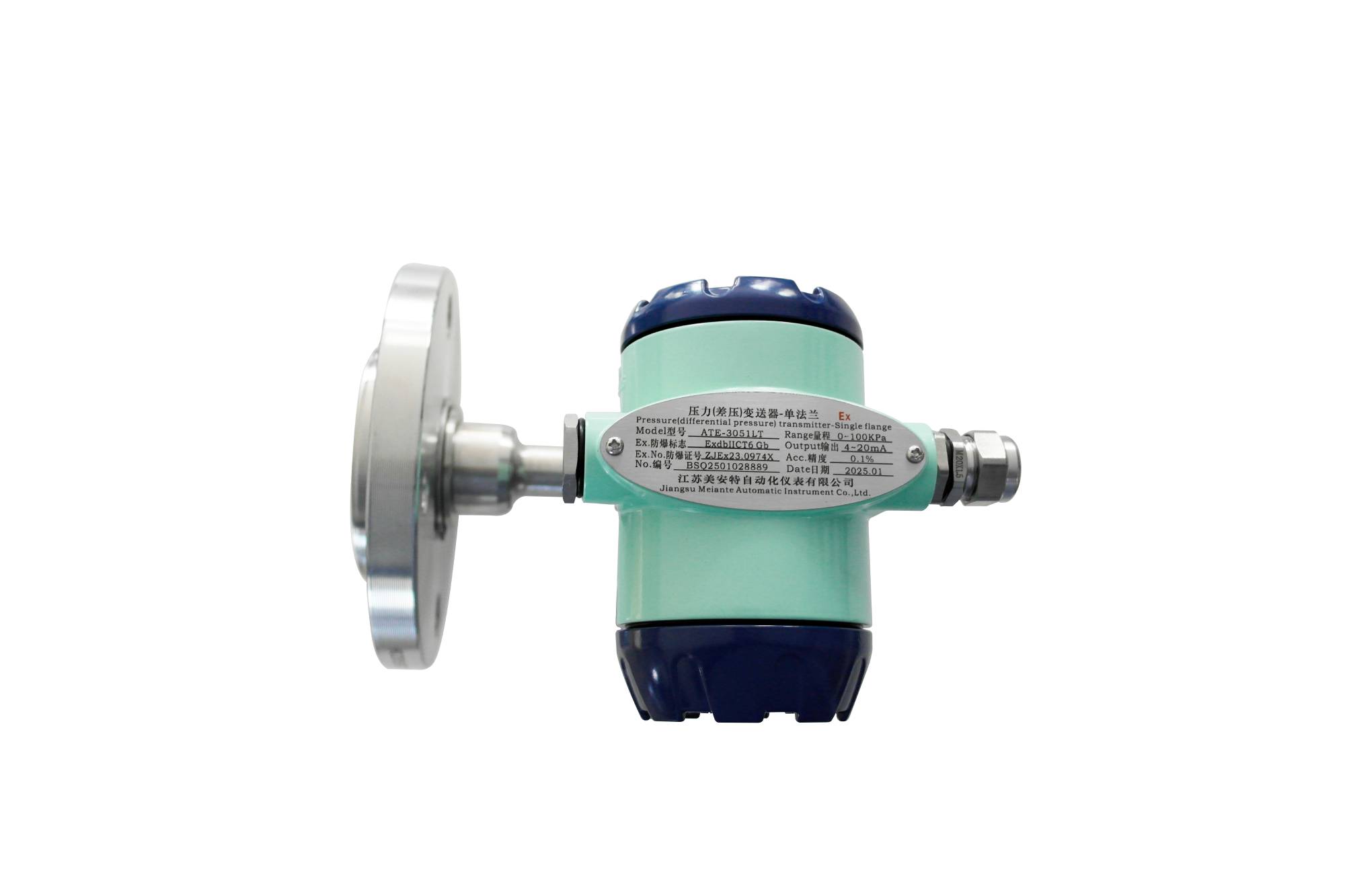

Detail Pictures:
Single flange differential pressure transmitterSingle flange differential pressure transmitterSingle flange differential pressure transmitterSingle flange differential pressure transmitter
