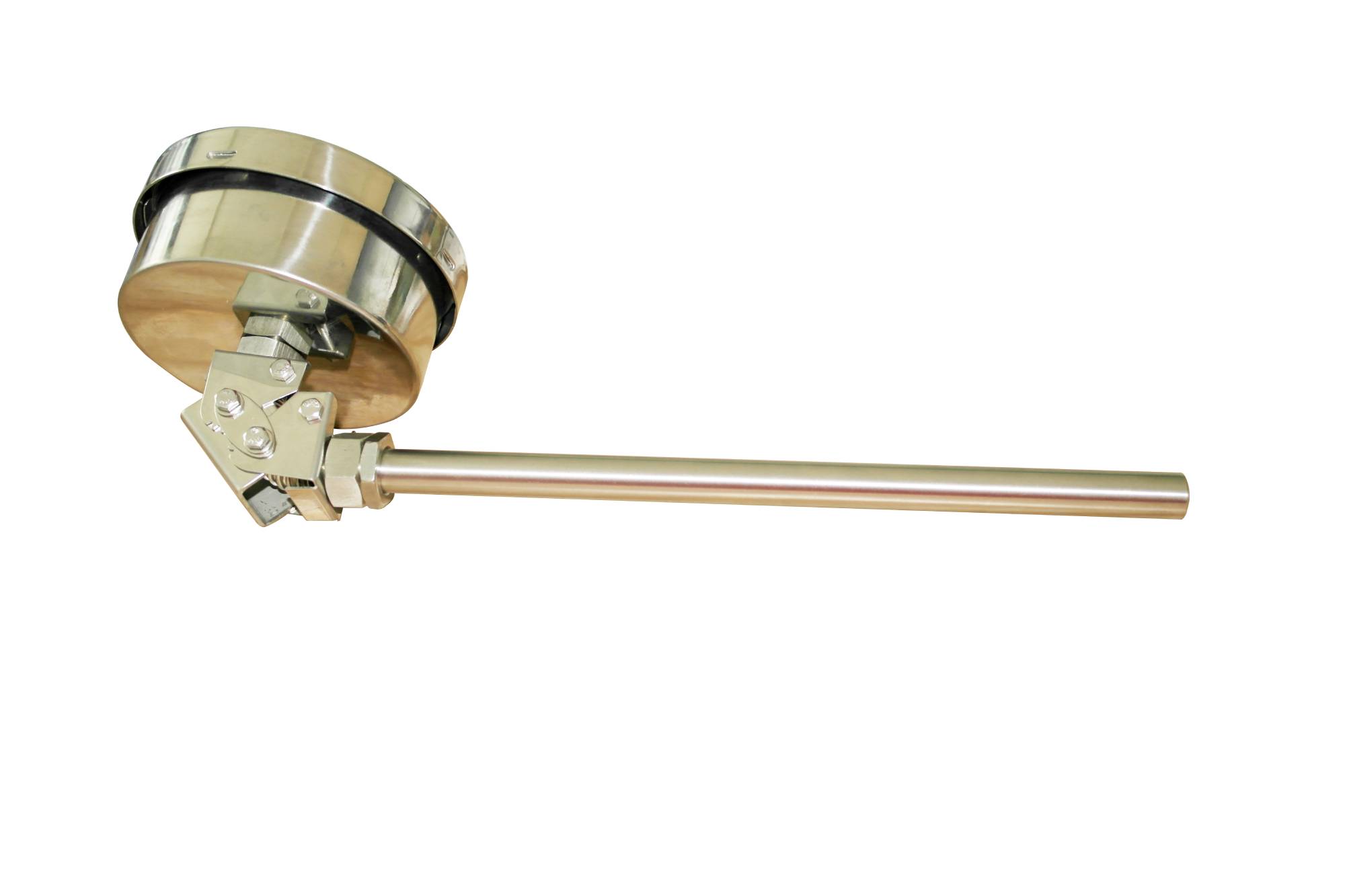

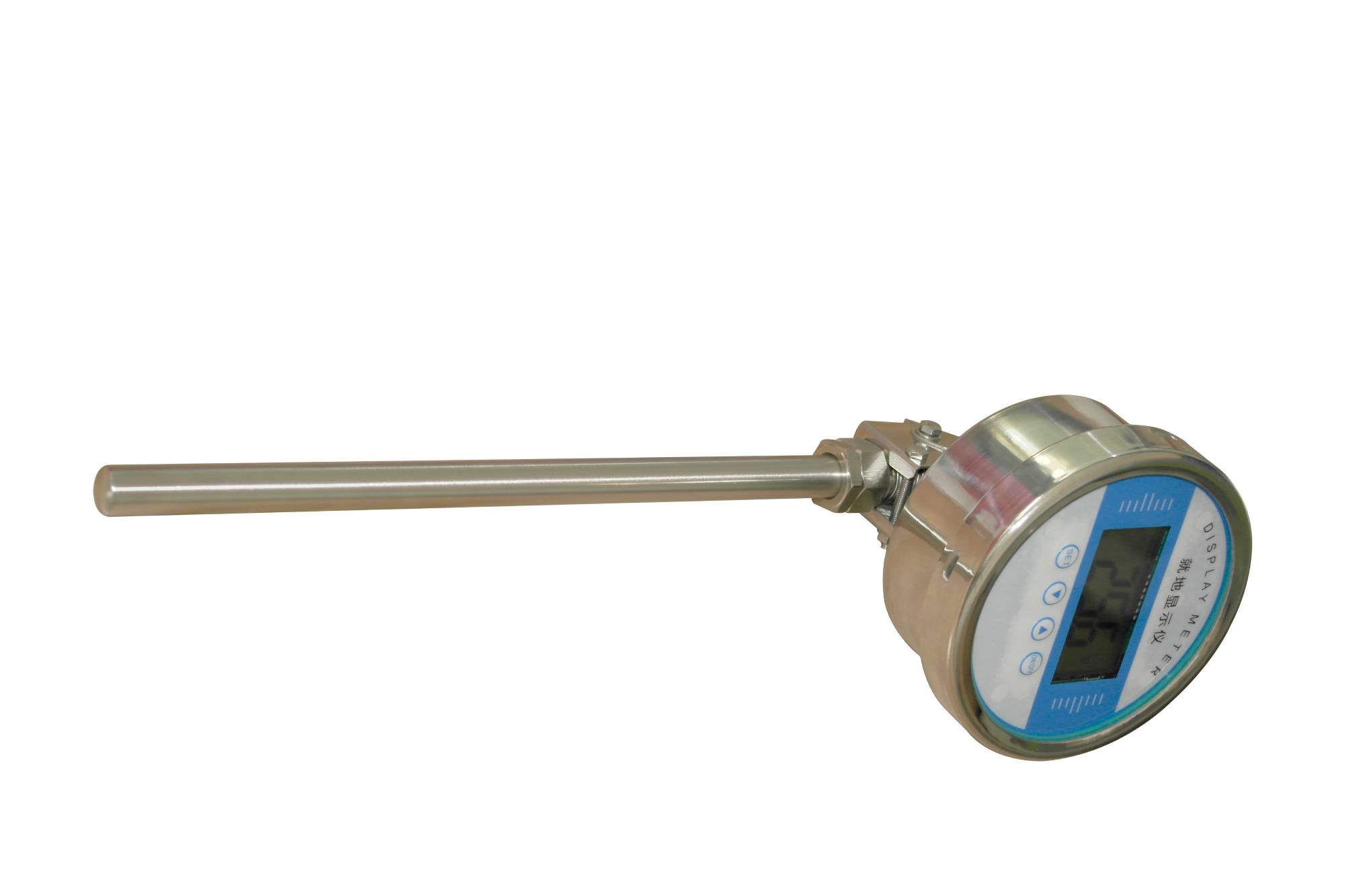

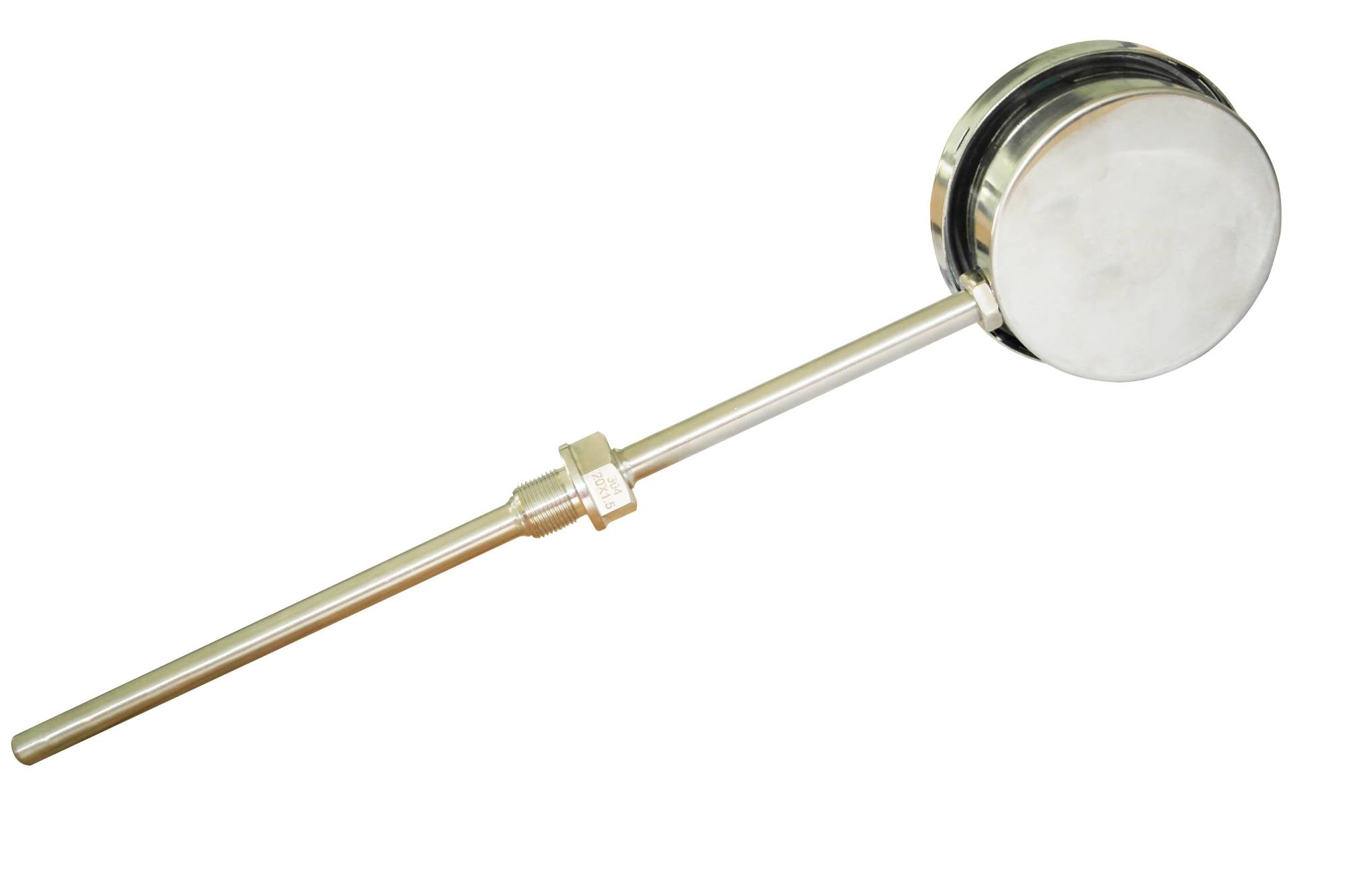

Digital temperature transmitter
3 week ago- Connectable thermocouples: K, E, 」, B, S, T, R, N, T graduation
- Thermal resistors: PT100, Pt1000, Cu50
- Specially customized ASSIC circuit, higher integration, better reliability
- Fully digital calibration, no movable potentiometer, temperature drift is lower to <25ppm.
- Pure digital signal calibration calculation, higher accuracy.
- Built-in 24-bit high-precision AD, high resolution.
- Fully intelligent integrated LCD display interface, overall structure and performance guaranteed.
- Temperature correction is simpler and more convenient.
- Users can freely set the input signal without recalibration
- Key control, backlight (optional), unit switching between Celsius and Fahrenheit, automatic conversion.
- The product can be put into extremely low power consumption mode, <5μA, by key operation.
- Brightness and contrast are automatically adjusted to solve visibility and viewing angle problems to the greatest extent.
Power supply voltage | 2.8~4V, equipped with a 3.6V/2400mAH lithium battery |
Temperature drift coefficient | <25ppm/C or 0.004%FS/1℃C (basic range) |
Working environment | temperature -40℃~85℃, humidity <85%, dry and corrosion-free environment. |
Measurement accuracy | 0.1%FS. |
Applicable to 100mm diameter dial housing, explosion-proof housing, and anti-wall housing.
|
