Float level gauge

3 week ago

5 0 

4 month

Product details

Product Description
The float level gauge is a reliable device widely used in the field of liquid level measurement. Its appearance is usually composed of main components such as a float, a connecting rod mechanism and a mounting bracket. As the core component, the float is carefully made of high-quality stainless steel or corrosion-resistant plastic according to different application scenarios and medium characteristics. The stainless steel float has excellent strength and corrosion resistance, and is suitable for liquid level measurement in various industrial environments where there is no obvious corrosion to metal; while the corrosion-resistant plastic float performs well in the face of strong corrosive media such as strong acids and alkalis, which can effectively prevent the sphere from being corroded and ensure the long-term stable operation of the level gauge.

The working principle of the level gauge is based on Archimedes' buoyancy law. When the liquid level changes, the float will float up and down due to the change in the buoyancy of the liquid. The connecting rod mechanism connected to it cleverly converts the vertical displacement of the float into mechanical displacement, thereby accurately reflecting the liquid level height. Whether in large industrial storage tanks, small reactors, or sewage treatment pools, the float level gauge can stably complete the liquid level measurement task with its simple and reliable structure. Moreover, on this basis, the intelligent float level gauge integrates advanced sensor technology and intelligent control system, realizes the functions of real-time display of liquid level value, alarm signal output and remote monitoring, and greatly improves the convenience and intelligence level of liquid level monitoring.

Jiangsu Meiante Technology Instrument Co., Ltd.'s leading products cover five major categories of products, including Level Instruments, Pressure Instruments，Temperature Instrument, Flow Meters, calibration instruments, and Transmitter. Among them, liquid level meters, pressure meters, flow meters, and Differential pressure transmitter have passed the SIL safety certification, and the two categories of products, liquid level meters and pressure meters, have obtained explosion-proof certificates. They are favored by many domestic dealers and users, laying a solid foundation for the long-term development of Meiante Instruments.

If you have needs, please contact us!

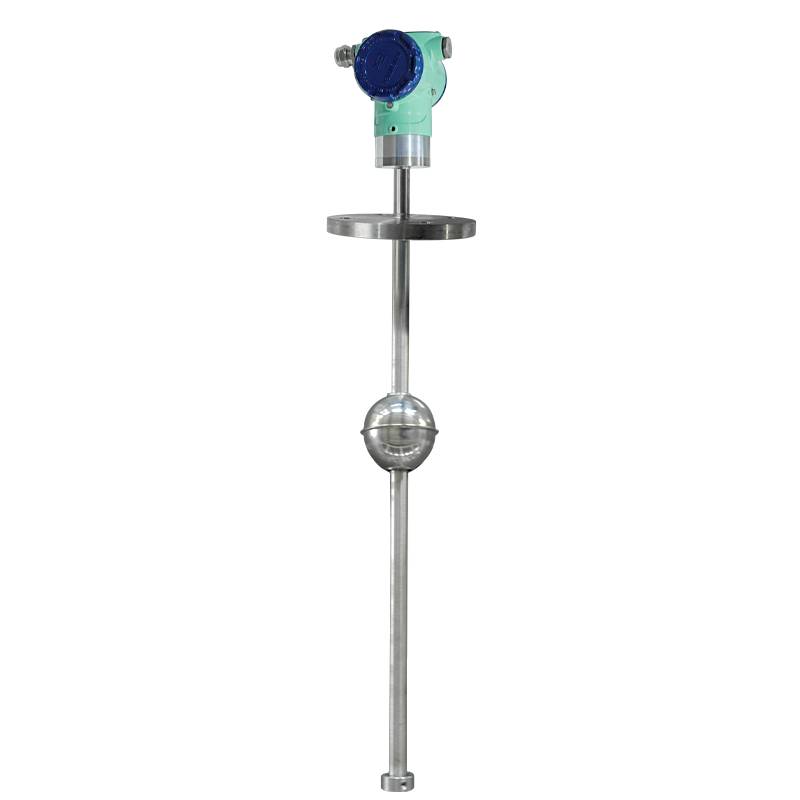

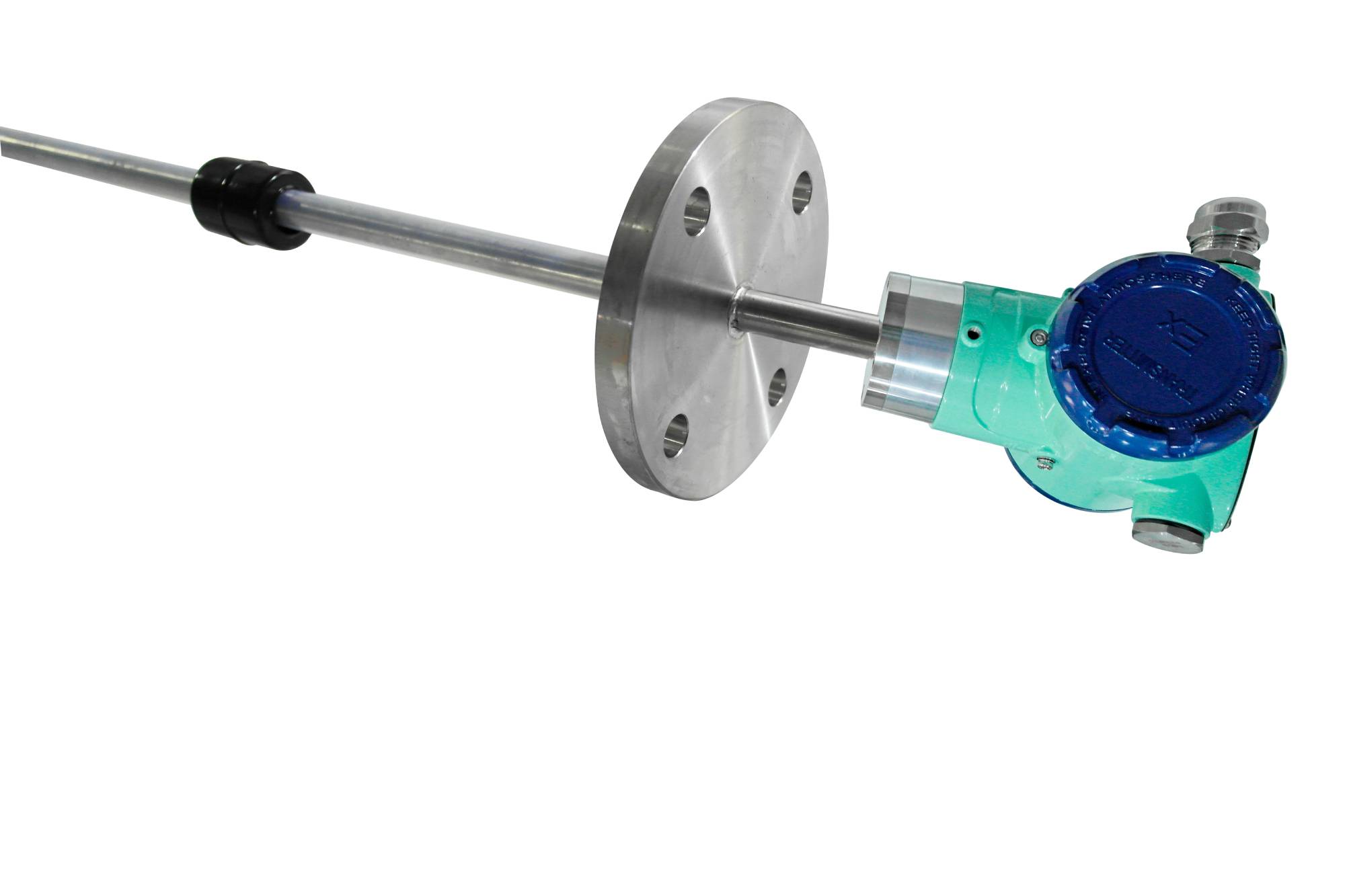

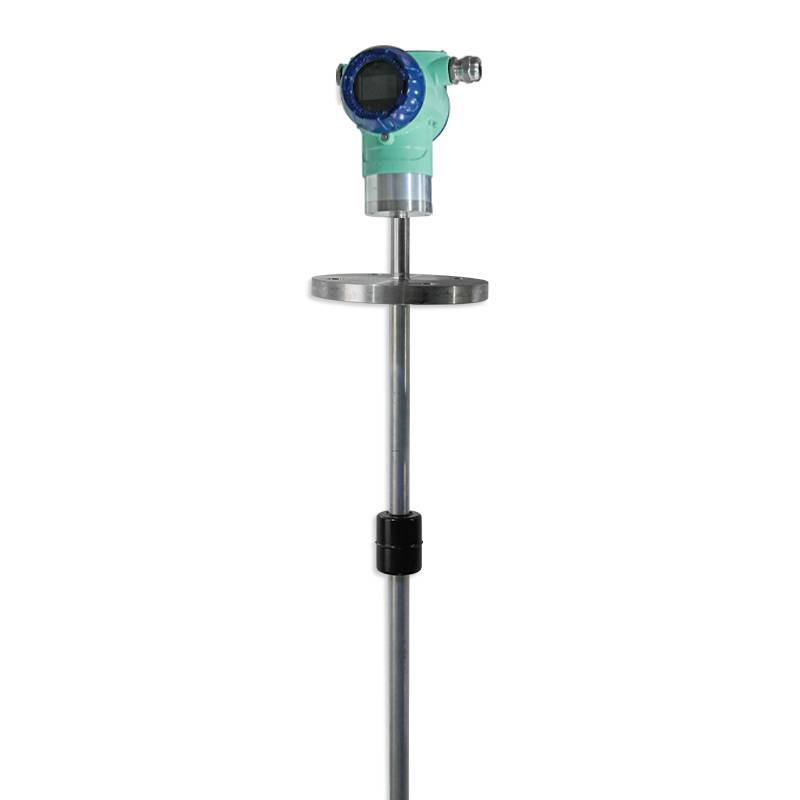

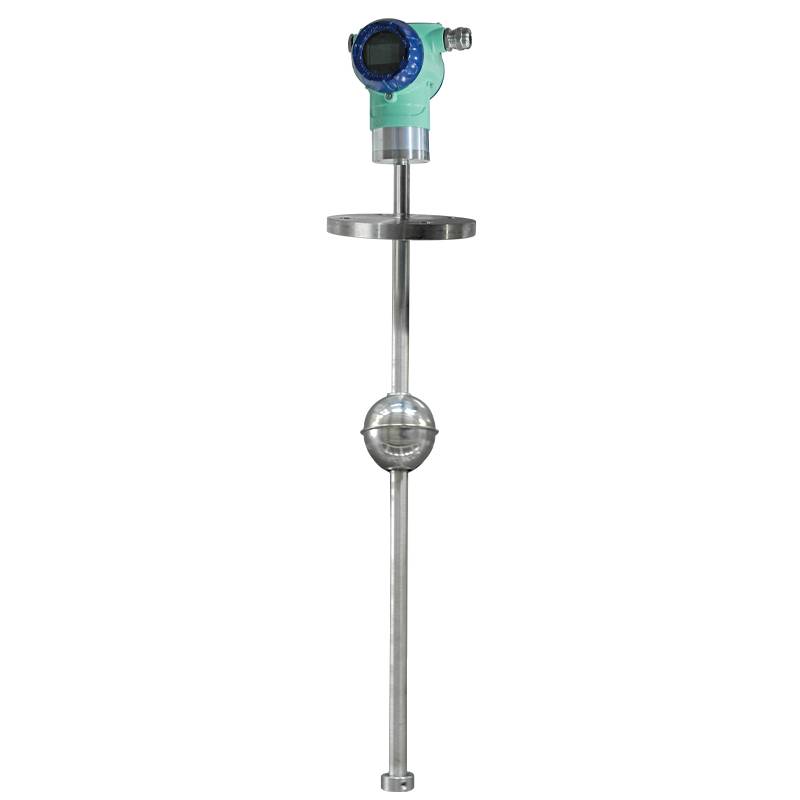

MAT-UQZ-17 Float Level Gauge:

Range:	300~6000mm
Working temperature:	-40~200℃℃
Control accuracy:	<10mm
Medium density:	>0.5g/cm
Pressure level:	0.6~4MPa
Contact power:	220V, 100mA
Using temperature:	Low temperature: -40℃~150℃
Normal temperature:	-20℃~80℃
High temperature:	0℃~200℃
Output signal:	4~20mA/RS485 /4~20mA+HART
Connection flange:	DN80/DN100/DN125/DN150/Other

Detail Pictures:
