Vortex flowmeter
2 month ago
Product details
Product Introduction
The vortex flowmeter is mainly composed of a bluff body (such as a triangular prism or cylindrical object), a sensor and a transmitter. When the fluid passes through the bluff body, alternating vortices will be generated downstream of it. This phenomenon is called Karman vortex street. The frequency of the vortex is proportional to the flow velocity of the fluid. By detecting the vortex frequency, the sensor converts it into an electrical signal, and then the transmitter converts the electrical signal into a flow value for display or remote transmission.
The vortex flowmeter is mainly composed of a bluff body (such as a triangular prism or cylindrical object), a sensor and a transmitter. When the fluid passes through the bluff body, alternating vortices will be generated downstream of it. This phenomenon is called Karman vortex street. The frequency of the vortex is proportional to the flow velocity of the fluid. By detecting the vortex frequency, the sensor converts it into an electrical signal, and then the transmitter converts the electrical signal into a flow value for display or remote transmission.
Advantages
1. High precision: The measurement accuracy can usually reach ±0.75% - ±1.5%, which can provide accurate flow measurement for industrial production processes and meet various occasions with high flow accuracy requirements.
2. Wide range ratio: The range ratio is generally 10:1 to 30:1, and some products can even reach 20:1. It can achieve accurate measurement in a wide flow range and can adapt well to both low and high flow conditions.
3. Low maintenance cost: There are no moving parts, which reduces failures caused by mechanical wear, reduces maintenance frequency and cost, and does not require regular replacement of wearing parts, which is more worry-free during use.
4. Good media compatibility: Suitable for a variety of media such as liquids, gases and steam, with a wide range of applications, which can meet the flow measurement needs of different industries and different media.
5. Low pressure loss: The pressure loss is about 1/4 to 1/2 of the orifice flowmeter. When used in a pipeline system, it can effectively reduce energy loss and reduce operating costs.
6. Stable output signal: The output is a pulse signal proportional to the flow rate, without zero drift, and the signal has strong anti-interference ability. It can be transmitted over long distances, which is convenient for data interaction and system integration with other devices.
1. High precision: The measurement accuracy can usually reach ±0.75% - ±1.5%, which can provide accurate flow measurement for industrial production processes and meet various occasions with high flow accuracy requirements.
2. Wide range ratio: The range ratio is generally 10:1 to 30:1, and some products can even reach 20:1. It can achieve accurate measurement in a wide flow range and can adapt well to both low and high flow conditions.
3. Low maintenance cost: There are no moving parts, which reduces failures caused by mechanical wear, reduces maintenance frequency and cost, and does not require regular replacement of wearing parts, which is more worry-free during use.
4. Good media compatibility: Suitable for a variety of media such as liquids, gases and steam, with a wide range of applications, which can meet the flow measurement needs of different industries and different media.
5. Low pressure loss: The pressure loss is about 1/4 to 1/2 of the orifice flowmeter. When used in a pipeline system, it can effectively reduce energy loss and reduce operating costs.
6. Stable output signal: The output is a pulse signal proportional to the flow rate, without zero drift, and the signal has strong anti-interference ability. It can be transmitted over long distances, which is convenient for data interaction and system integration with other devices.
Jiangsu Meian Automation Instrument Co., Ltd.'s leading products cover five major categories of products, including liquid level meters, temperature meters, flow meters, calibration instruments, and pressure meters. Among them, liquid level meters, pressure meters, flow meters, and temperature meters have passed the SIL safety certification, and the two categories of products, liquid level meters and pressure meters, have obtained explosion-proof certificates. They are favored by many domestic dealers and users, laying a solid foundation for the long-term development of Meian Instruments.
MAT-WJ Vortex Flowmeter:
| Temperature range: | -25℃-350°C |
| Connection method: | DN15-DN300 is flange clamp type or flange connection type, DN300-DN1000 is plug-in type. DN1000 and above can be specially customized. |
| Flow rate range: | steam <4m/s-70m/s liquid 0.7m/s-7m/s gas 5-70m/s |
| Pressure specification: | PN1.6MPa PN2.5MPa PN4.0MPa higher pressure specifications can be customized |
| Pressure loss coefficient: | Cd≤2.6 |
| Accuracy: | flange clamp type, connection type 0.5 level 1.0 level 1.5 level plug-in type 1.5 level 2.5 level |
| Power supply voltage: | sensor DC12V or DC24V transmitter DC24V field display type DC24V DC12V or 3.6V lithium battery |
| Output signal: | sensor pulse frequency signal 2~3000HZ/low level ≤1V/high level ≥6V/transmitter two-wire 4~20mA.DC current signal |
| Seismic performance: | piezoelectric ≤0.2g capacitive ≤2.0g |
| Ambient temperature: | sensor -30~65°C/transmitter On-site display -10~50°C |
| Environmental humidity: | relative humidity 5~85%RH |
| Signal transmission distance: | <500mm |
| Straight pipe length: | upstream ≥10D downstream ≥5D |
| Explosion-proof grade: | Ex db ⅡC T6 Gb; Exia ⅡCT6 Ga; Ex tb ⅢCT80'C Db |
| Protection grade: | ordinary IP66 diving IP68 |
| Instrument material: | The instrument shell is made of aluminum alloy, and the meter body is made of stainless steel 304. Special materials can also be used according to user requirements |

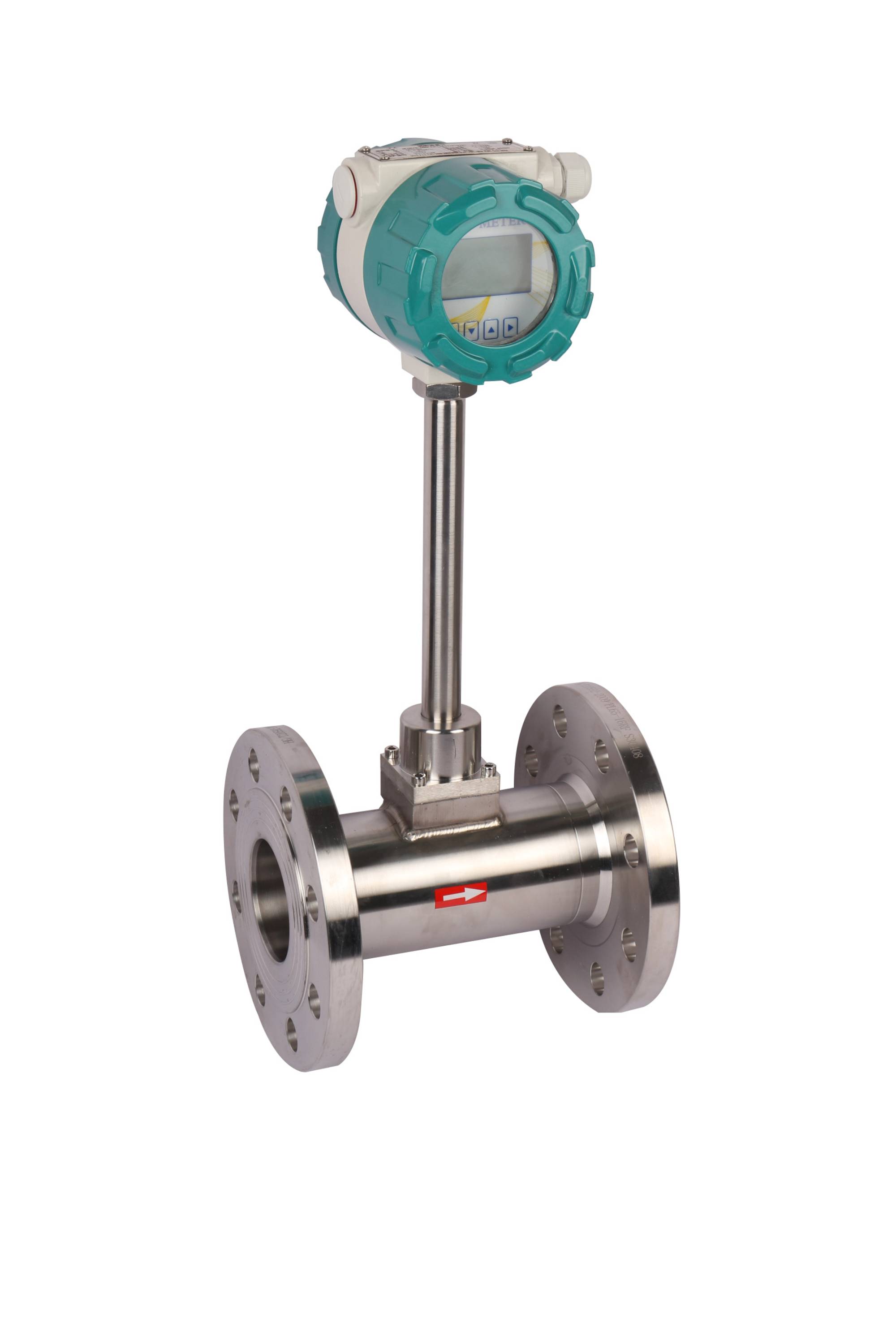

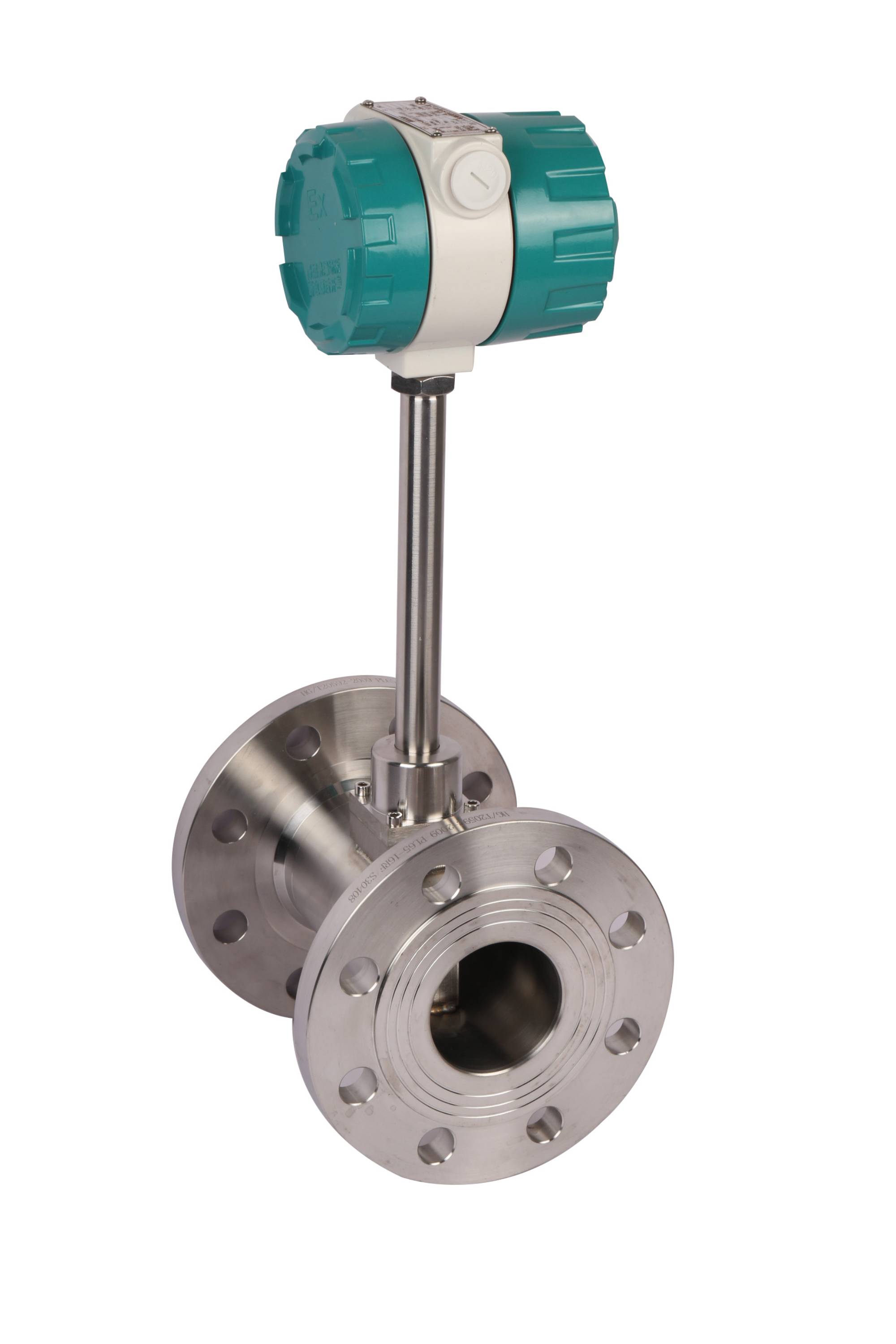

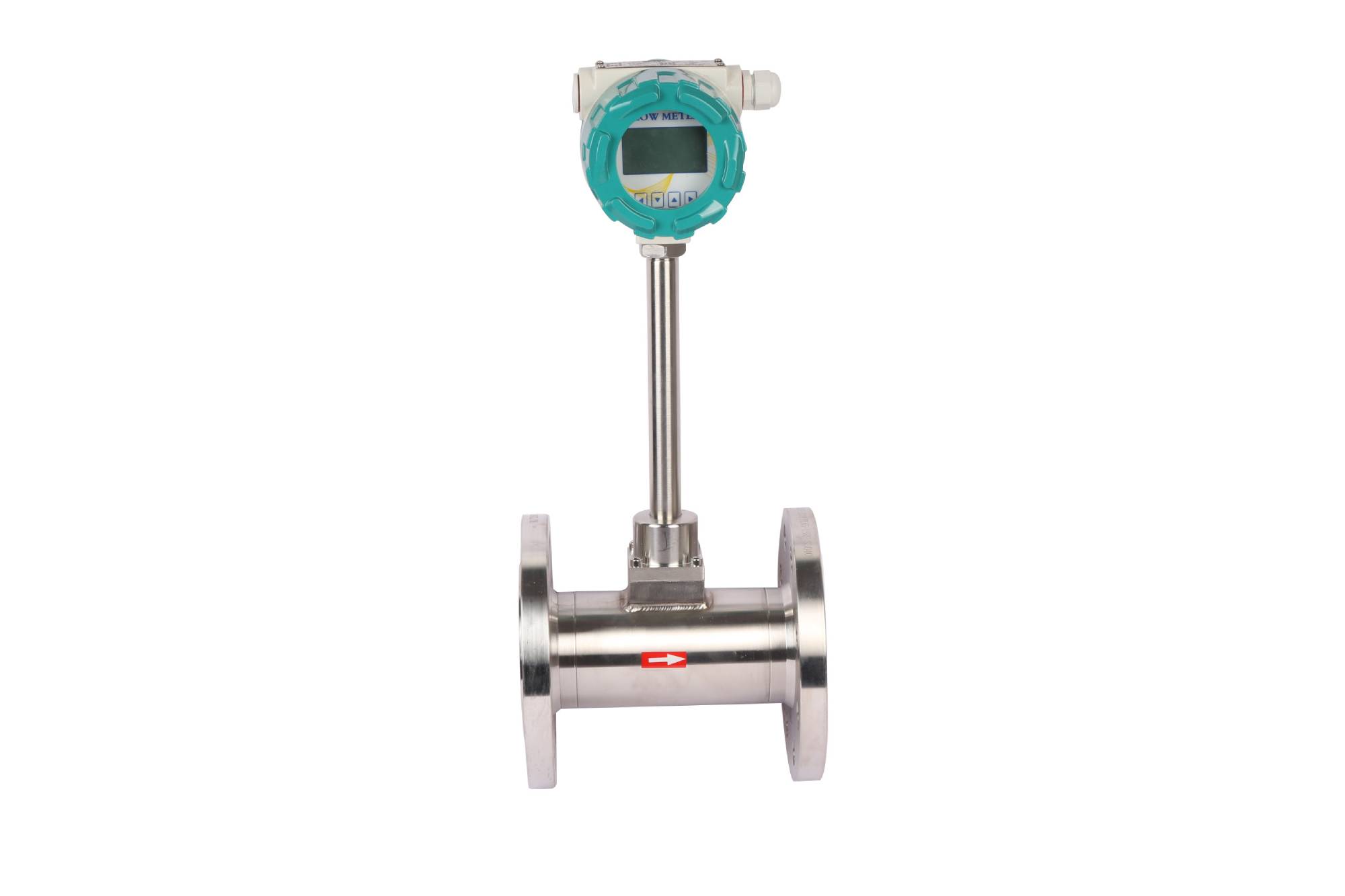

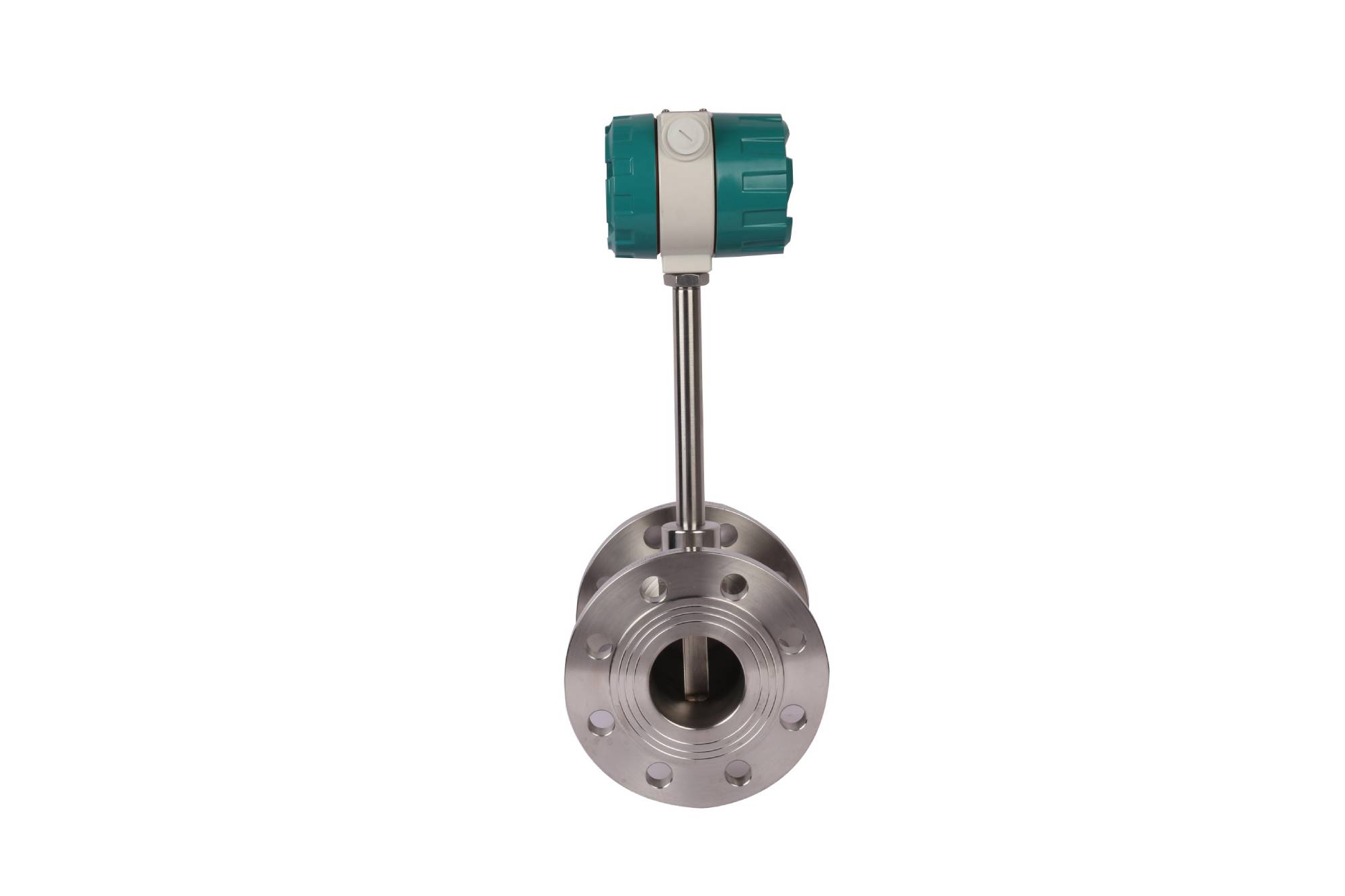

Detail Pictures:
