Product details

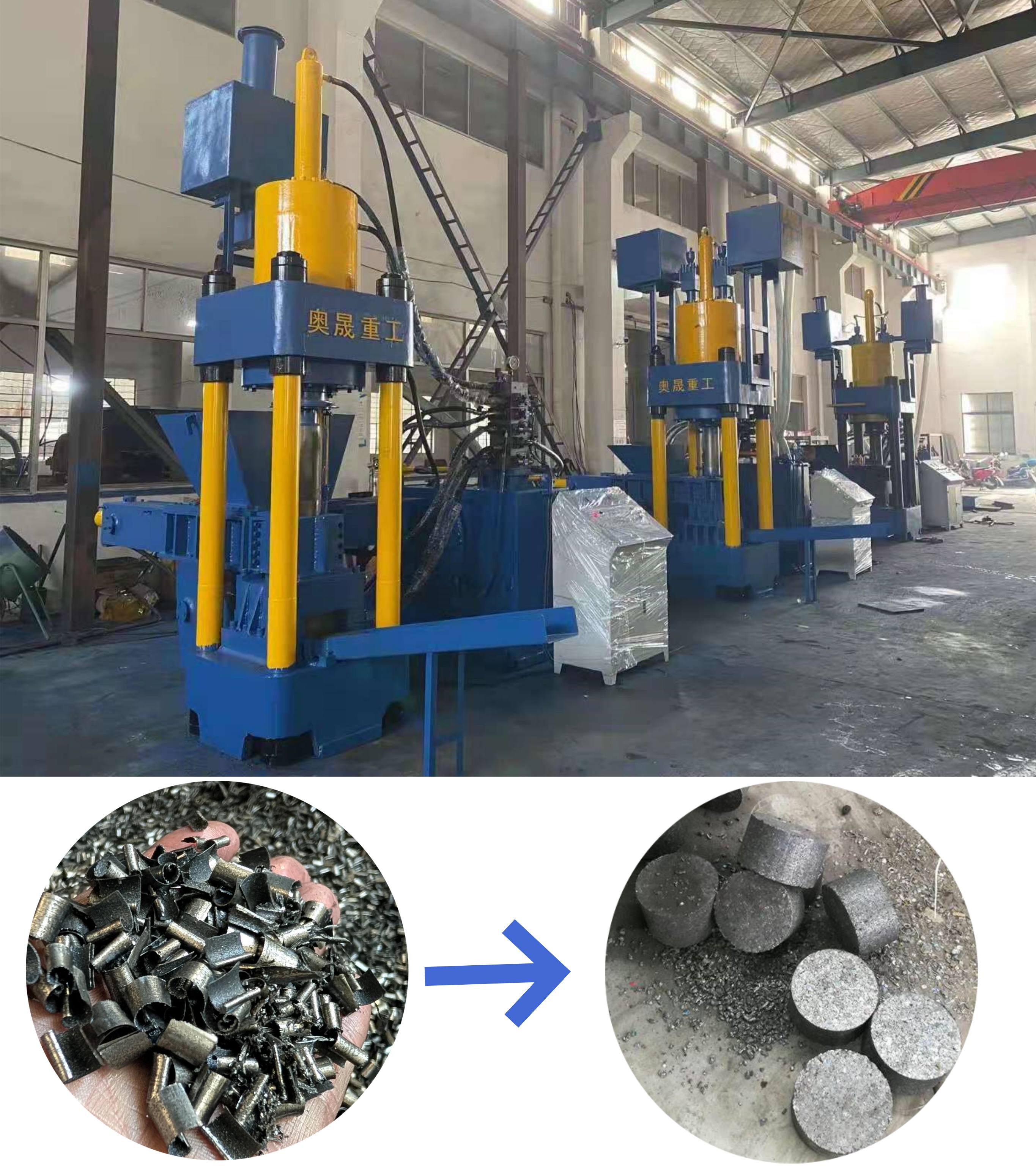

Cast Iron Briquettes Cast Iron Machine Briquette Machine
Working Principle:
Scrap Metal Briquetting Press is mainly composed of hydraulic system, electrical control system, mechanical structure system and so on. The working principle is that the oil pump is driven by the motor, the hydraulic oil is transported to the hydraulic cylinder, and a strong pressure is generated to push the indenter to squeeze the scrap metal chips into the material box. Under the action of pressure, the scrap metal chips are compressed into briquettes with a certain density and shape, so as to achieve the compaction and molding of the scrap metal chips.
Equipment Characteristics：
1. High efficiency and energy saving: Using advanced hydraulic technology and optimized mechanical structure, it can complete the pressure briquette process of scrap metal chips in a short time, while reducing energy consumption. For example, some models of scrap metal briquetting machines can process several tons of scrap metal chips per hour, and the motor power is relatively low.
2. Wide range of application: Metal Briguette Machine can deal with many types of scrap metal chips, such as cast iron chips, steel chips, copper chips, aluminum chips, etc. Whether it is a small chip or a large sheet metal chip, it can be effectively compressed by adjusting the equipment parameters.
3. High degree of automation: equipped with intelligent control system, can achieve automatic feeding, automatic briquetting pressure, automatic discharge and other functions. Operators only need to set the relevant parameters on the control panel, and the equipment can automatically run according to the preset program, reducing manual intervention and improving production efficiency and stability.
4. Good quality: the pressed briquette has high density, high strength, and is easy to transport and store. The density of the briquette can generally reach several tons per cubic meter, which can effectively reduce the volume of scrap metal chips and reduce transportation costs. At the same time, the high-strength briquette is not easy to scatter during storage, which is convenient for subsequent melting or reprocessing.
Application Fields：
1. Metal processing enterprises: machining workshops, foundries, etc., will produce a large number of scrap metal chips in the production process, scrap metal chip briquetting machine can compress these chips into briquettes in time, which is convenient for centralized collection and treatment, keep the workshop environment clean, and improve the metal recycling rate.
2. Metal recycling plant: Cast Iron Chip Press can be used to pre-treat all kinds of recycled scrap metal chips, pressing them into briquettes, which can be directly used as raw materials for melting furnaces, improving melting efficiency and reducing energy consumption. In addition, the regular briquette is also easy to store and transport, which is conducive to the large-scale operation of enterprises.
3. Waste recycling station: The acquired scrap metal scraps can be initially processed, made into briquettes and then sold to metal recycling plants or smelters to increase the added value of products and improve economic efficiency.
| Model | Inner dia.of main cylinder | Briquette size (mm) | Briquette density (T/m3) | Briquettes/min | Production (T/shift) | Power(kw) | Operational mode |
| Y83-2000 | 280 | φ80×(60-80) | ≥5 | 4~5 | 3~5.5 | 18.5 | PLC automatically |
| Y83-2500 | 320 | φ90×(60-80) | ≥5 | 4~5 | 5~8 | 30 | |
| Y83-3150 | 360 | (φ90~φ110)×(70-100) | ≥5.5 | 4~5 | 5~8 | 30 | |
| Y83-3600 | 400 | (φ100~φ120)×(70-100) | ≥5 | 4~5 | 8~12 | 30 | |
| Y83-5000 | 450 | (φ110-φ140)×(70-100) | ≥5 | 4~5 | 10~14 | 37 | |
| Y83-6300 | 520 | (φ130-φ160)×(70-100) | ≥5 | 4~5 | 16~20 | 45 |
