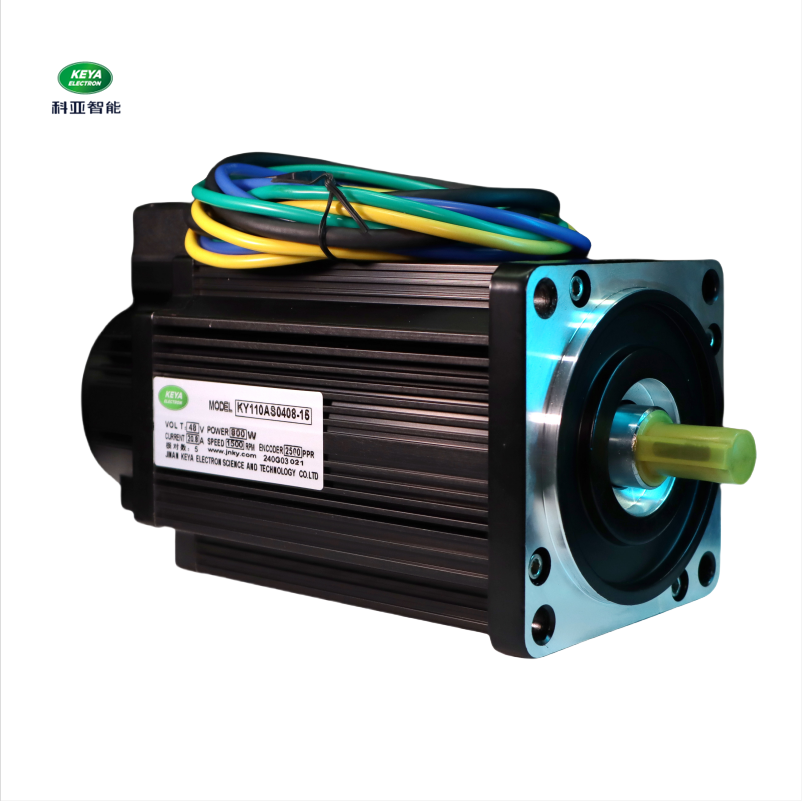

ky110AS0480-15
2 week ago
| motor: KY130AS0440-30B | Controller: KYDAS4601A |
| Rated voltage:DC48V | Rated voltage:DC48V |
| Rated power：800w | Adaptable motor power:below 1kw |
| Rated speed：1500rpm | Rated current：30A |
| Rated current：20.8A | Max current:60A |
| Rated touque：5.1N.m | Signal feedback:Incremental encoder,Absolute encoder |
| Instantaneous max torque：10.2N.m | Working mode:Speed mode,Torque mode,Position mode |
| Max speed：1950 | Control method:Rs232;Can2.0;CANopen;RC;0-5VAnalog voltage, pulse |
| Number of Pole pairs：10Pairs | |
|
Brake (Optional)
* Rated voltage: 24V * Brake torque: 15n.m
|
|
| * Power: 13W | |
| * Braking condition: brake when power is off |
Related Products
| Model | Voltage | Power | Rated speed | Rated current | Rated torque | Peak torque | Length | Shaft Dia | Weight | |
| Frame | Unit | V | W | RPM | A | N.m | N.m | mm | mm | kg |
| 60*60mm | KY60AS0201-30 | 24 | 100 | 3000 | 5.4 | 0.31 | 0.95 | 147 | ⌀11 | 1.4 |
| KY60AS0202-30 | 24 | 200 | 3000 | 10.4 | 0.63 | 1.89 | 147 | ⌀11 | 1.4 | |
| 80*80mm | KY80AS0202-15 | 24 | 200 | 1500 | 10.4 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 |
| KY80AS0402-15 | 48 | 200 | 1500 | 5.2 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0204-15 | 24 | 400 | 1500 | 21.3 | 2.55 | 7.65 | 185 | ⌀14 | 3.5 | |
| KY80AS0404-15 | 48 | 400 | 1500 | 10.4 | 2.55 | 7.65 | 185 | ⌀14 | 3.5 | |
| KY80AS0204-30 | 24 | 400 | 3000 | 21 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0404-30 | 48 | 400 | 3000 | 10.4 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0407-30 | 48 | 700 | 3000 | 19.4 | 2.2 | 6.5 | 185 | ⌀14 | 3.5 | |
| 110*110mm | KY110AS0405-15 | 48 | 500 | 1500 | 14 | 3.1 | 10.8 | 199 | ⌀14 | 6 |
| KY110AS0205-15 | 24 | 500 | 1500 | 26 | 3.1 | 10.8 | 223 | ⌀14 | 6.6 | |
| KY110AS0408-15 | 48 | 800 | 1500 | 21 | 5 | 17.9 | 223 | ⌀14 | 6.6 | |
| KY110AS0207-15 | 24 | 750 | 1500 | 39 | 4.7 | 16.6 | 246 | ⌀19 | 7.6 | |
| KY110AS0408-25 | 48 | 800 | 2500 | 22 | 3 | 10.5 | 223 | ⌀14 | 6.6 | |
| KY110AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 246 | ⌀19 | 7.6 | |
| KY110AS0210-15 | 24 | 1000 | 1500 | 52 | 6.3 | 22 | 293 | ⌀22 | 10.2 | |
| KY110AS0412-25 | 48 | 1200 | 2500 | 31 | 4.5 | 15.7 | 246 | ⌀19 | 7.6 | |
| KY110AS0415-15 | 48 | 1500 | 1500 | 39 | 9.5 | 28 | 293 | ⌀19 | 10.2 | |
| KY110AS0415-30 | 48 | 1500 | 3000 | 30 | 4.7 | 14.1 | 246 | ⌀19 | 7.6 | |
| KY110AS0420-25 | 48 | 2000 | 2500 | 55 | 7.6 | 26 | 293 | ⌀22 | 10.2 | |
| 130*130mm | KY130AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 186 | ⌀25 | 7.6 |
| KY130AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 207 | ⌀28 | 13 | |
| KY130AS0430-15 | 48 | 3000 | 1500 | 73 | 19.1 | 57 | 273 | ⌀28 | 14.2 | |
Motor With Gearbox
We also can provide the matched gearbox for sinusoid communication brushless servo motor 24v 400w, to reduce the speed and get the higher torque.
Gear box range: line planetary gearbox, right angle planetary gearbox, worm gearbox, if you need other gearbox, kindly advise.
Product Application
The sinusoid communication brushless servo motor 24v 400w be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle.
Sophia + eight six one five nine one zoro zero nine eight one zero seven
