Product Description
The advantages of high-power DC servo motor are: small size, light weight, large output, fast response, high speed, small inertia, smooth rotation and stable torque. It is easy to realize intelligence, its electronic commutation mode is flexible, and it can be commutated by square wave or sine wave.
48V 1000w brushless dc servo Motor Work Environment
1. Altitude less than 1000M.
2. Environment temperature: -25℃~+50℃
3. The most moist month average relative humidity should less than 90%, and this month's average lowest temperature should less than 25℃.

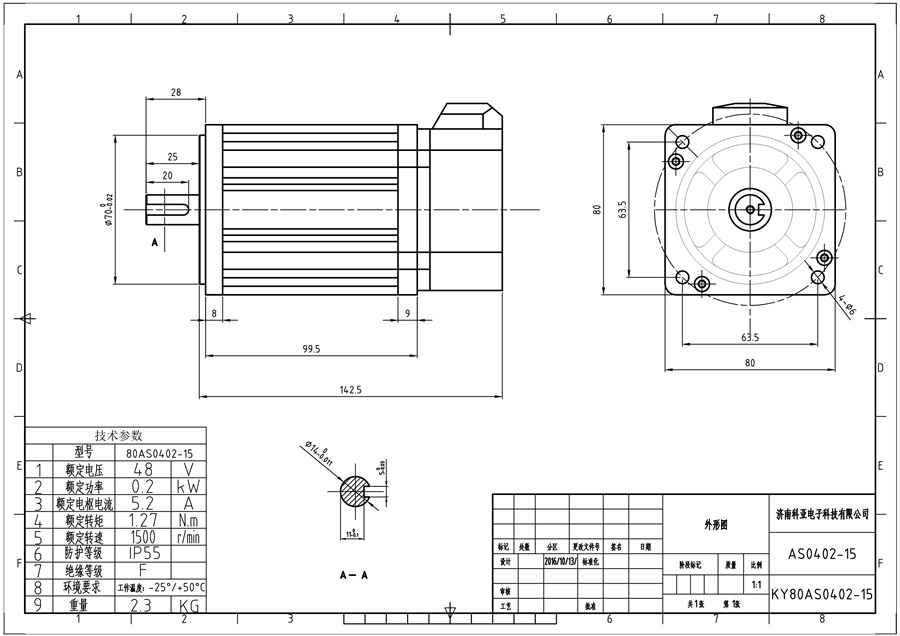

| Rated voltage | 48V |
| Rated power | 200W |
| Rated current | 10.4A |
| Rated speed | 1500rpm |
| Rated torque |
1.27N.m |
| Peak torque |
3.8N.m |
| Motor shaft diameter | 14mm |
| Motor length | 142.5mm |
| Encoder | 2500ppr, optical |
| Brake | if you need brake, kindly advise |
|
Weight |
2.3kg |
| Model | Voltage | Power | Rated speed | Rated current | Rated torque | Peak torque | Length | Shaft Dia | Weight | |
| Frame | Unit | V | W | RPM | A | N.m | N.m | mm | mm | kg |
| 60*60mm | KY60AS0201-30 | 24 | 100 | 3000 | 5.4 | 0.31 | 0.95 | 147 | ⌀11 | 1.4 |
| KY60AS0202-30 | 24 | 200 | 3000 | 10.4 | 0.63 | 1.89 | 147 | ⌀11 | 1.4 | |
| 80*80mm | KY80AS0202-15 | 24 | 200 | 1500 | 10.4 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 |
| KY80AS0402-15 | 48 | 200 | 1500 | 5.2 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0204-15 | 24 | 400 | 1500 | 21.3 | 2.55 | 7.65 | 185 | ⌀14 | 3.5 | |
| KY80AS0404-15 | 48 | 400 | 1500 | 10.4 | 2.55 | 7.65 | 185 | ⌀14 | 3.5 | |
| KY80AS0204-30 | 24 | 400 | 3000 | 21 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0404-30 | 48 | 400 | 3000 | 10.4 | 1.27 | 3.8 | 142.5 | ⌀14 | 2.3 | |
| KY80AS0407-30 | 48 | 700 | 3000 | 19.4 | 2.2 | 6.5 | 185 | ⌀14 | 3.5 | |
| 110*110mm | KY110AS0405-15 | 48 | 500 | 1500 | 14 | 3.1 | 10.8 | 199 | ⌀14 | 6 |
| KY110AS0205-15 | 24 | 500 | 1500 | 26 | 3.1 | 10.8 | 223 | ⌀14 | 6.6 | |
| KY110AS0408-15 | 48 | 800 | 1500 | 21 | 5 | 17.9 | 223 | ⌀14 | 6.6 | |
| KY110AS0207-15 | 24 | 750 | 1500 | 39 | 4.7 | 16.6 | 246 | ⌀19 | 7.6 | |
| KY110AS0408-25 | 48 | 800 | 2500 | 22 | 3 | 10.5 | 223 | ⌀14 | 6.6 | |
| KY110AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 246 | ⌀19 | 7.6 | |
| KY110AS0210-15 | 24 | 1000 | 1500 | 52 | 6.3 | 22 | 293 | ⌀22 | 10.2 | |
| KY110AS0412-25 | 48 | 1200 | 2500 | 31 | 4.5 | 15.7 | 246 | ⌀19 | 7.6 | |
| KY110AS0415-15 | 48 | 1500 | 1500 | 39 | 9.5 | 28 | 293 | ⌀19 | 10.2 | |
| KY110AS0415-30 | 48 | 1500 | 3000 | 30 | 4.7 | 14.1 | 246 | ⌀19 | 7.6 | |
| KY110AS0420-25 | 48 | 2000 | 2500 | 55 | 7.6 | 26 | 293 | ⌀22 | 10.2 | |
| 130*130mm | KY130AS0410-15 | 48 | 1000 | 1500 | 26 | 6.3 | 22 | 186 | ⌀25 | 7.6 |
| KY130AS0415-15 | 48 | 1500 | 1500 | 37.5 | 9.5 | 28 | 207 | ⌀28 | 13 | |
| KY130AS0430-15 | 48 | 3000 | 1500 | 73 | 19.1 | 57 | 273 | ⌀28 | 14.2 | |

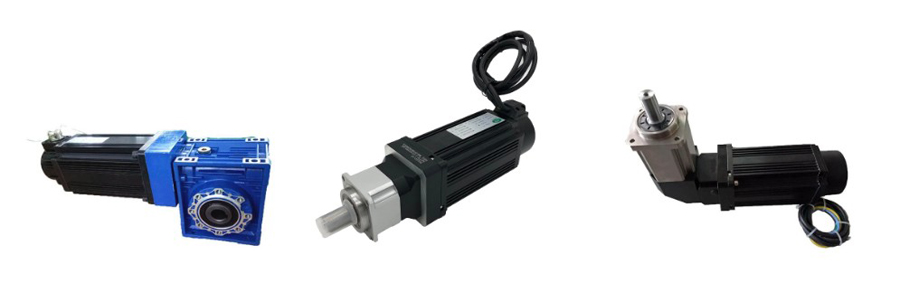

We also can provide the matched gearbox for 48V 1000W servomotor for mobile robot, to reduce the speed and get the higher torque.
Gear box range: line planetary gearbox, right angle planetary gearbox, worm gearbox, if you need other gearbox, kindly advise.
The 48V 1000W servomotor for mobile robot be widely used in mobile robot, for example, crawler robot chassis, inspection robot, automatic guided vehicle, fire fighting robot, self-guided vehicle.
