PE/PVC single wall corrugated pipe extrusion line
PE/PVC Single Wall Corrugated Pipe Extrusion Line Characteristics and Applications:
PE/PVC Single Wall Corrugated Pipe Extrusion Line/Pipe Making Machine/Pipe Production Line shall be used to produce small diameter single wall corrugated pipe in PE/PVC and PP raw material.
Molding corrugated pipe with smooth inside and outside surface, and even ripple at one time by corresponding die.
Used as electricity pipe, washing machine drain pipe, dustt collector pipr and ventiduct, etc.
Small size corrugated pipe of p4-6.7(mm) are used in car.

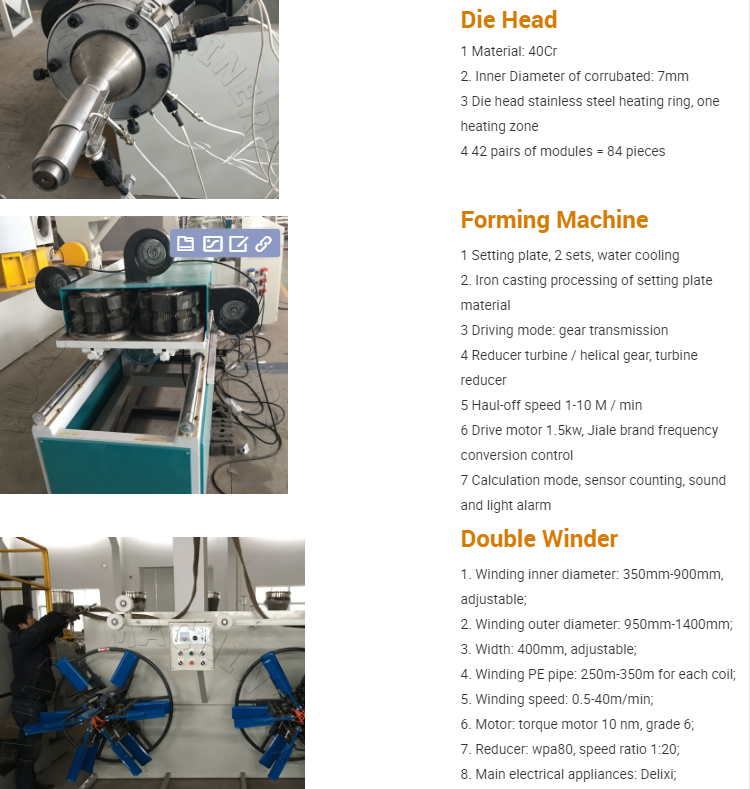

PE/PVC Single Wall Corrugated Pipe Extrusion Line Photos
Extruder of PE/PVC Single Wall Corrugated Pipe Extrusion Line
|
1
|
Motor power
|
11KW， AC variable frequency motor
|
|
2
|
Extruder speed
|
10-90r/min
|
|
3
|
Screw diameter
|
Φ45， 28：1
|
|
4
|
Screw barrel material
|
38CrMoAlA, 0.5-0.7 Nitriding depth
|
|
5
|
Number of heating coils
|
3x2KW
|
|
6
|
Cooling mode of screw barrel
|
Wind cooling 3x0.18KW
|
|
7
|
Gearbox
|
Jingyin gearbox
|
|
8
|
Temperature Controller
|
OMRON
|
|
9
|
Contactor
|
Schneider
|
|
10
|
Inverter
|
ABB or Siemens brand
|
Packaging of PE/PVC Single Wall Corrugated Pipe Extrusion Line
Exhibition of PE/PVC Single Wall Corrugated Pipe Extrusion Line
