5541 CEME Type TIG Welding Machine Solenoid Valve
Product Features:
1. Model No: 5541
2. Port Size: Inlet: 1/8'', Outlet: Hose Connection (6.5mm OD)
3. Orifice Size: 2mm
4. Body Material: Brass
5. Seal Material: NBR, EPDM, FKM
6. Working Medium: Gas
7. Working Medium Temperature Range: NBR: -5 to +120 ºC, EPDM: -30 ℃ to +120℃, FKM: -30 ℃ to +150℃
8. Working Pressure Range: 0 to 8 bar
9. Voltages: DC: 12V, 24V; AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)
10. Application: MIG, TIG Welding Machine

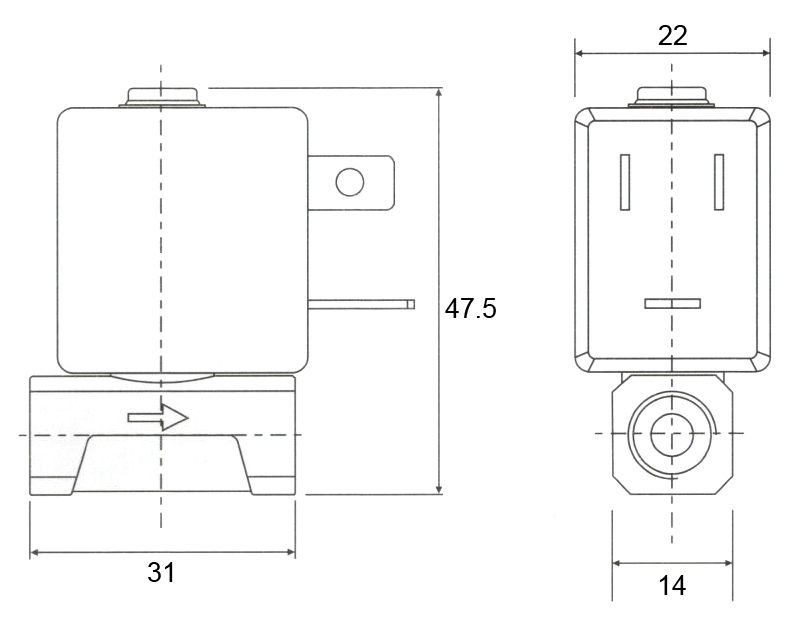

Dimension and Data of 5541 Solenoid Valve:
|
Port Size
|
Inlet: 1/8''
Outlet: Hose Connection (6.5mm OD)
|
|
Orifice Size
|
2mm
|
|
Body Material
|
Brass
|
|
Seal Material
|
NBR, EPDM, FKM
|
|
Working Medium
|
Gas
|
|
Working Temperature
|
NBR: -5 to +120 ºC
EPDM: -30 to +120 ºC
FKM: -30 to +150 ºC
|
|
Working Pressure
|
0 to 8 bar
|
|
Function
|
2 Way Normally Closed
|
|
Operation
|
Direct Acting
|
|
Voltage
|
DC: 12VDC, 24VDC
AC: 24VAC, 110VAC, 120VAC, 220VAC, 230VAC (50/60Hz)
|
