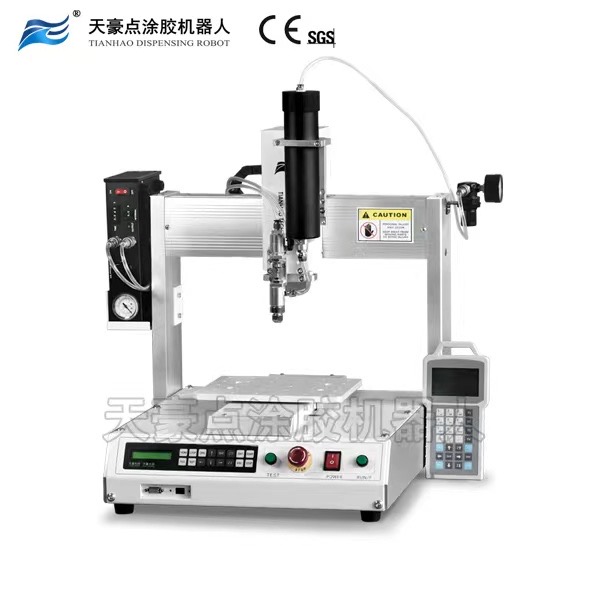

RTV Silicone dispensing robot sealant Adhesive Glue dipensing robot 3 axis robot auto dispenser machine TH-2004D-KG31

Product introduction

Usually in 300ML.400ml.500ml.600ml polyethylene-aluminum packed silicon dispensing and coating glue.

Such as Glass glue, silicon glue, seal glue.

Add the TH-800J rotary valve is a constant-bead, dispense valve. Designed to deliver a uniform bead dimension irrespective of any air pressure build-up at the opening of the valve and at the start of the bead. This neutralizing pressure feature ensures a perfect bead with a clean cut-off of the material at the end of the bead path.

Function

Liquid Materials

adhesive, glue, silicone, RTV, sealant,paste adhesive

Features

1.The core of ceramic rotary valve is hard,it has compact combination also wearproof,so its service life is more than 10 years.

2.The liquid material can get through this valve without resistance equipped with rotating structure,also,our precision valve can reduce the wire drawing when dispense off.

3.The external pressure maintaining valve makes the inside air pressure constant,our robot can control the liquid material amount evenly when dispensing.

4.TianHao dispensing's robot can dispense glue of dots ,strips,arcs and patterns on different planes or curved surface with automatic control panel.

5.Easy to operate and edit program,you can learn how to operate within half an hour.

7.Have rapid emptying and transient back to the lock function, the glue can easily be whipped off without residue.

8. Put the glue in special silicon barrel, avoiding waste.

9. Import SMC solenoid valve make sure the machine sensitivity and stability.

10. Different material can be packed according to different feed system, such as: hard pack, soft pack, bottled.

11. Each axis with 2 linear guide rails, providing greater stability. the Z-axis brake motors, greatly increased the stability of the equipment and motion accuracy.

12. Single machine can operate without pendant

13.The professional dispensing software combination of feed system and arm running control to achieve the synchronization control.

14.PLC Controller, Easy to program - Dedicated dispensing software eliminates the need of complex robot language programming.

15. Increase the parameters display with programmer, more intuitive operation.

16. As customer production require adding the I / O interface, easily add another device for the equipment

service Free

Help you seek the glue.

Free offer trial video for your sample.

Free training with machine.
Free offer accessories dispensing kit.

Save cost

One machine instead of three or four staff, reduce the management cost, also can work for 24 hours.

Help your business

You can bring customers to visit your workshop,the equipment to produce customer satisfaction products,then take good business for you

Specification
