Syringe design is adopted, Easy to replace different theadlocker adhesive and replace barrel cost is low. It is the best choice
for small batch production of different products and only a little glue be coating.
Thread coating machine with Touch screen for screw,bolt,connector1
3 year ago
CIXI TIANHAO ELECTRIC CO.LTD
3 year
Product details
Product Overview
Thread coating machine with Touch screen
Suitable for M3-M30 screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating
Liquid Material: threadlocker adhesive.threadlocker glue.
Liquid Material: threadlocker adhesive.threadlocker glue.
Equipment function: The rotating axis adopts double drive design, which has better concentricity and greater rotating power, and
it can process products up to 200MM lenght. The machine has I/O signal input and output functions, which can communicate with
external devices. The unique gluing device can keep glue is evenly injected into the tooth socket of thread, and the product
surface is clean.
it can process products up to 200MM lenght. The machine has I/O signal input and output functions, which can communicate with
external devices. The unique gluing device can keep glue is evenly injected into the tooth socket of thread, and the product
surface is clean.
FEATURES AT A GLANCE

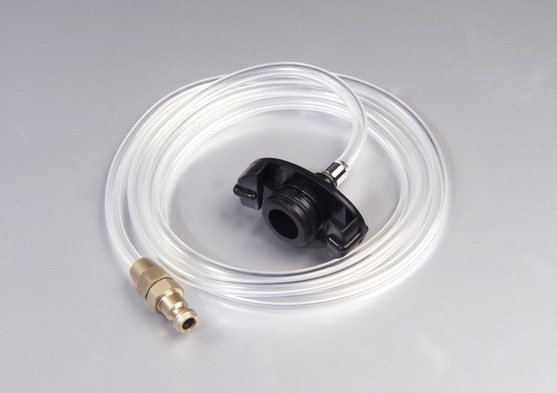

Feed system: 30CC/55CC Bareel +vaccum function + s/s needle.
Syringe design is adopted, Easy to replace different theadlocker adhesive and replace barrel cost is low. It is the best choice
for small batch production of different products and only a little glue be coating.
Syringe design is adopted, Easy to replace different theadlocker adhesive and replace barrel cost is low. It is the best choice
for small batch production of different products and only a little glue be coating.
special valve for anaerobic glue
special needle
50ML tank
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Speed
|
0.5-0.8S/circle of thread
|
|
2
|
coating Length
|
≤200mm(Can adjuting)
|
|
3
|
Thread ID
|
M3-M30
|
|
4
|
start way
|
Panel /foot switch/touch screen
|
|
5
|
Control way
|
PLC+ special software version 2.0 for thread coating machine
|
|
6
|
Drive
|
Precision step motor
|
|
7
|
Input voltage
|
110/220VAC (Internal conversion)
|
|
8
|
Power
|
≤120W
|

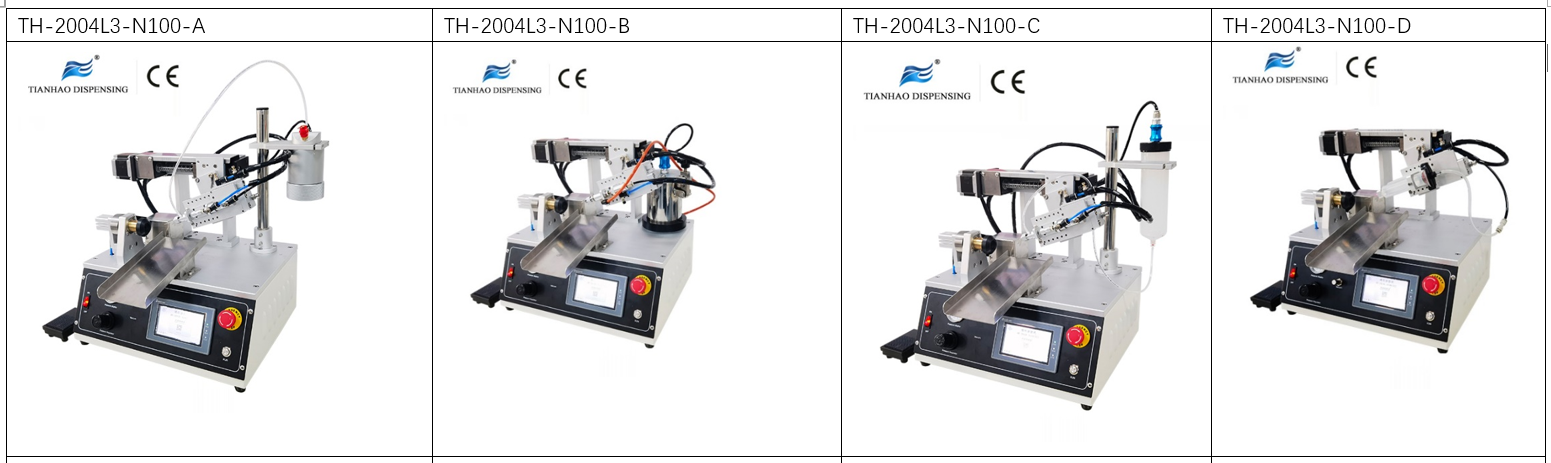

PRODUCT CONFIGURATION
FEATURES
1..The equipment is suitable for M3-M30 different model of screw,bolt,nut, connector fastener
2. The machine suitable for lengths within 200mm
3. Double-drive design, the product jig and the thimble device are equipped with independent motors to rotate synchronously,
which ensures better concentricity and avoids uneven coating in during rotation proccess.
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set
directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of
turns)
5. With external communication function, it can be connected with other devices
6. For different Products should be processed only by changing the product jig
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
9.Add optional for automatic unloading, saving the time of manual unloading
10.The product be glued product by machine, greatly improves reliability and durability.sealing
2. The machine suitable for lengths within 200mm
3. Double-drive design, the product jig and the thimble device are equipped with independent motors to rotate synchronously,
which ensures better concentricity and avoids uneven coating in during rotation proccess.
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set
directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of
turns)
5. With external communication function, it can be connected with other devices
6. For different Products should be processed only by changing the product jig
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
9.Add optional for automatic unloading, saving the time of manual unloading
10.The product be glued product by machine, greatly improves reliability and durability.sealing
