According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue
be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.
Anaerobic Internal Thread coating machine with Touch screen for screw,bolt,connector1
3 year ago
CIXI TIANHAO ELECTRIC CO.LTD
3 year
Product details
Product Overview

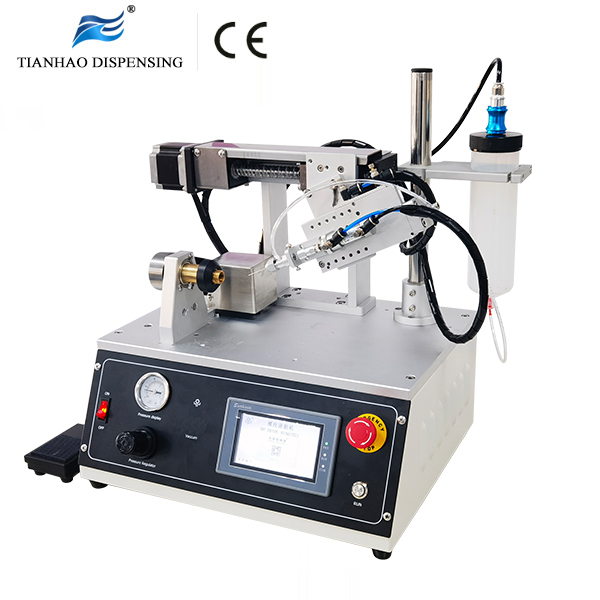

Anaerobic Internal Thread coating machine with Touch screen
The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient.
FEATURES AT A GLANCE
Feed system: 300ML tank + special valve for anaerobic glue + s/s needle.that reduce waste during the glue addition process;
According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue
be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.
According to different glue characteristics be equipped with different special dispensing valves, which can easily solve that glue
be blocked during use process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.
special valve for anaerobic glue
special needle
50ML tank
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Speed
|
0.5-0.8S/circle of thread
|
|
2
|
Internal Length
|
≤50 mm(Can adjuting)
|
|
3
|
Internal Thread ID
|
≤M30
|
|
4
|
start way
|
Panel /foot switch/touch screen
|
|
5
|
Control way
|
PLC+ special software version 2.0 for thread coating machine
|
|
6
|
Drive
|
Precision step motor
|
|
7
|
Input voltage
|
110/220VAC (Internal conversion)
|
|
8
|
Power
|
≤120W
|

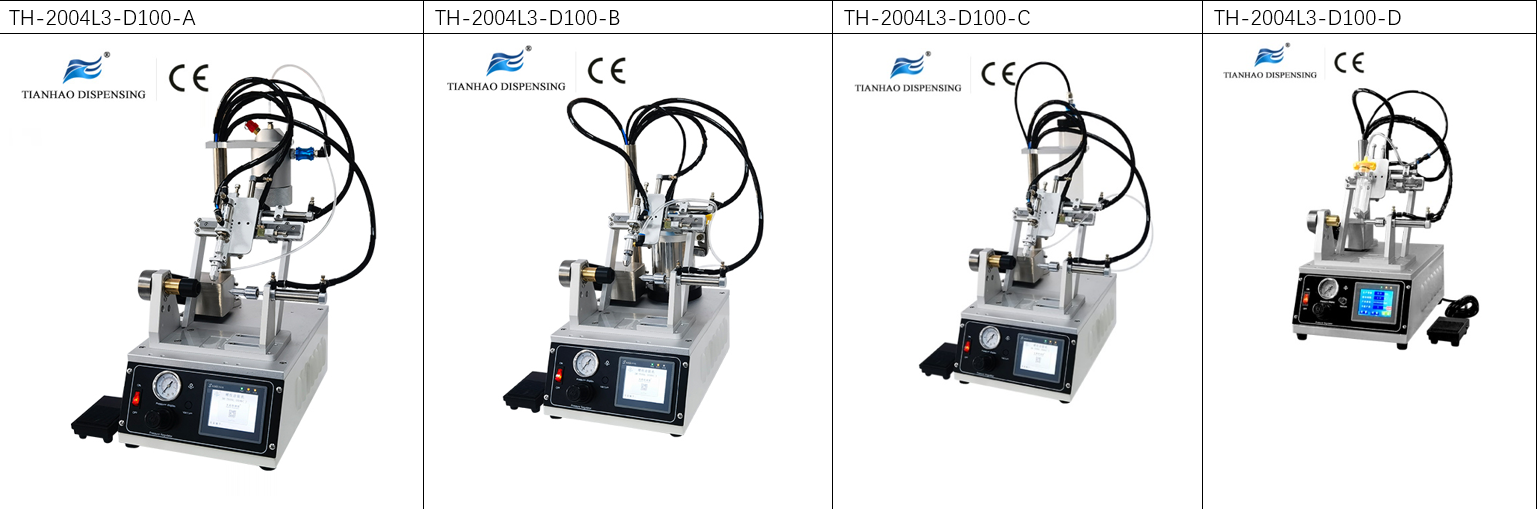

PRODUCT CONFIGURATION
FEATURES
1..The equipment is suitable for M3-M30 different model of screw,bolt,nut, connector fastener
2. The machine suitable for lengths of inside thread within 50mm
3. Specially designed for the internal thread gluing process can freely adjust the inclination angle of the glue nozzle to
realize the application of different diameters and lengths thread
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set
directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of
turns)
5. With external communication function, it can be connected with other devices
6. For different Products should be processed only by changing the product jig
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
9.Add optional for automatic unloading, saving the time of manual unloading
10.The product be glued product by machine, greatly improves reliability and durability.sealing
2. The machine suitable for lengths of inside thread within 50mm
3. Specially designed for the internal thread gluing process can freely adjust the inclination angle of the glue nozzle to
realize the application of different diameters and lengths thread
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set
directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of
turns)
5. With external communication function, it can be connected with other devices
6. For different Products should be processed only by changing the product jig
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
9.Add optional for automatic unloading, saving the time of manual unloading
10.The product be glued product by machine, greatly improves reliability and durability.sealing
