Anaerobic Internal Thread coating machine with Touch screen for screw,bolt,connector1

3 year ago

82 0 

3 year

Product details

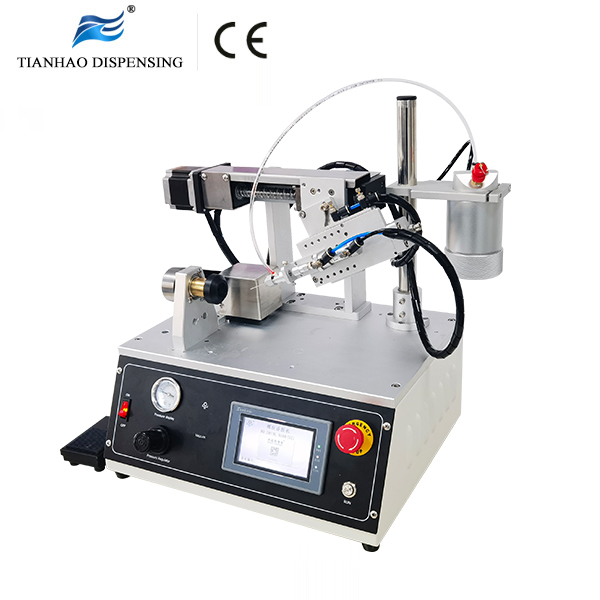

Anaerobic Internal Thread coating machine with Touch screen

The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more intuitive and convenient.

FEATURES AT A GLANCE

Feed system: 50ML tank + special valve for anaerobic glue + s/s needle. It is specially designed for 50ml capacity packaging, the
original 50ml packaging can be used directly ,that reduce waste during the glue addition process; According to different glue
characteristics be equipped with different special dispensing valves, which can easily solve that glue be blocked during use
process. dispensing glue is uniform and does not overflow, which can save more than 30% of glue.

special valve for anaerobic glue

special needle

50ML tank

PRODUCT SPECIFICATIONS

No	Item	Data
1	Speed	0.5-0.8S/circle of thread
2	Internal Length	≤50 mm(Can adjuting)
3	Internal Thread ID	≤M30
4	start way	Panel /foot switch/touch screen
5	Control way	PLC+ special software version 2.0 for thread coating machine
6	Drive	Precision step motor
7	Input voltage	110/220VAC (Internal conversion)
8	Power	≤120W

PRODUCT CONFIGURATION

FEATURES

1..The equipment is suitable for M3-M30 different model of screw,bolt,nut, connector fastener
2. The machine suitable for lengths of inside thread within 50mm
3. Specially designed for the internal thread gluing process can freely adjust the inclination angle of the glue nozzle to realize the application of different diameters and lengths thread
4. Professionally designed touch screen PLC gluing control system, visual operation panel, all processing parameters can be set directly through the touch screen, such as the adjustment of gluing start and end positions and gluing length (number of turns)
5. With external communication function, it can be connected with other devices
6. For different Products should be processed only by changing the product jig
7. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing effect
8. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue
9.Add optional for automatic unloading, saving the time of manual unloading
10.The product be glued product by machine, greatly improves reliability and durability.sealing
