Product details

Product Overview

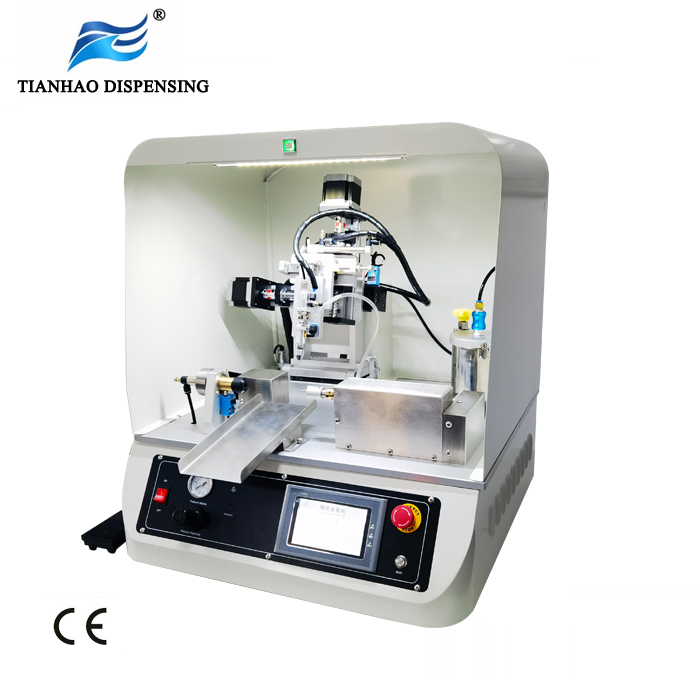

Pre-coating glue Thread coating machine with Touch screen

Equipment function:
This machine adopts multi-axis linkage technology, which can easily deal with bolt processing of different model screw.bolt,nut,
This machine has program editing and storage functions, which can realize automatic edit and adjusting function, storage programs
within 100 groups. Only select different programs for different products

The machine is equipped with a touch-screen PLC gluing control system, which makes the operation more simple and convenient.

Application

Suitable for M1-M28 screw, bolt, nuts, Plug and various pneumatic connector, fastener thread coating

Liquid Material: Pre-Applied coating threadlocker adhesive

FEATURES AT A GLANCE

Feed system: 1KGS tank + special valve for Pre-coating glue + s/s needle. It is specially designed for pre-coating theadlocker
adhesive,Dispensing glue is uniform and no overflow, which can save more than 30% of glue.

bolt thread coating machine pre-coating bolt machine

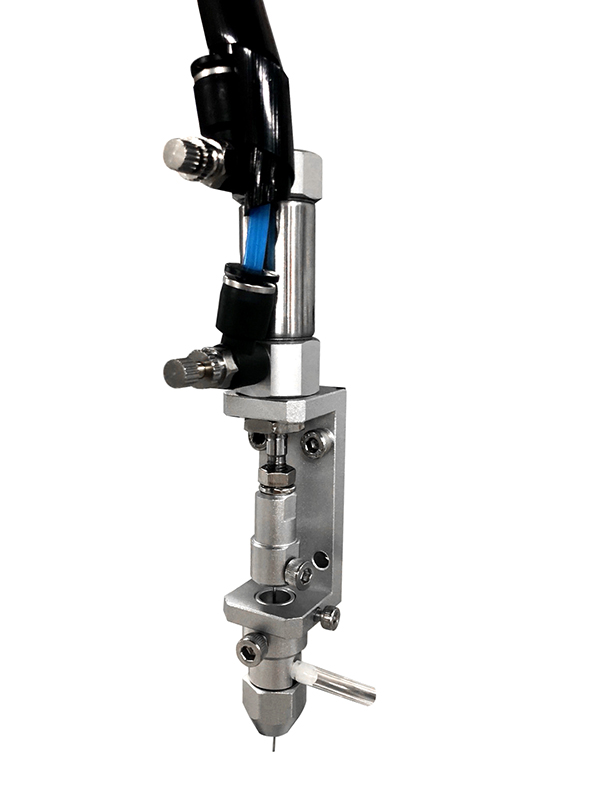

special valve

anaerobic glue valve

touch screen

PRODUCT SPECIFICATIONS

No	Item	Data
1	Speed	0.3-0.8S/circle of thread
2	Length	≤100 mm(can adjusting)
3	ID	M1-M28I
4	Date memory capacity	100 groups progams
5	Max.Suction method	Vacuum adsorption
6	Power	≤350W
7	Weight	52kgs
8	size （L,W,H）	636068(cm)

PRODUCT CONFIGURATION

1.The equipment is suitable for M1-M28 different model of screw,bolt,nut, connector fastener

2. The machine suitable for lengths within 100mm

3. Quote multi-axis linkage control technology, the gluing program can be edited and called through the touch screen, With
program memory storage function, it can store up to 100 groups of files

4. Through the unique teaching function, only fill the tooth pitch, starting gluing position, and the number of gluing circles
to achieve precise gluing

5. Semi-enclosed design, equipped with safety cover and LED work lights,

the whole machine is beautiful and neatly.

6. machine With vacuum suction function, good for small flat-head screws,and product be automatically unloaded with stainless
steel slides

7. Independent overall center offset adjustment function, one-button adjustment location for the production of large diameter
spans

8. Electric thimble device can be stretched and retracted freely, and the function of buffering and anti-collision

9. All processing parameters can be set directly through the touch screen, with powerful functions and easy operation

10. With external communication function, it can be connected with other devices

11. It can be matched with different diameter needles according to the size of the workpiece teeth to achieve perfect gluing
effect

12. Equipped with a voltage stabilization control module, dispensing glue evenly, without drawing, dripping, and leaking glue

13.The product be glued product by machine, greatly improves reliability and durability.sealing
