dispensing robot, dispensing machine TH-2004AE

Product Application

The TH-2004C Series automated dispensing system from Tianhao dispensing delivers easy automation for precise fluid application with a simple vision pencil camera.

Specialized vision-guided DispenseMotion software and pencil camera make the TH-2004C Series easy to setup and program. True 3D motion control makes programming dots, lines, circles, arcs, and compound arcs fast and simple.

Get faster cycle and batch times in a system that quickly integrates into any manufacturing operation. With platforms that range from 300 x300 mm to 500 x 500 mm, the TH-2004C Series is ideal for batching or critical dispensing applications.
TH-2004C Series can work as a standalone system or as a key parts of an automated soluation and is easily itegrated into in-line transfer systems,rotary tables and pallet assembly lines

An optional joystick puts the control of axis movement in the hands of the operator.

SPECIFICATIONS FOR TH-2004C Robotic Silicone Dispensing Machine with vison system
Main paramter	model	TH-2004C
		X/Y/Z working range	300 x 300 x 100mm,400 x 400 x 100mm,500 x 500 x 100mm
		XY/Z Max Load	Workpiece payload 10 kg / tool payload 5 kg
	XY/Z Speed	800/350 mm/Axis
	Repeatability	±0.02mm/Axis
software	Edit programs	Joystick/mouse/Keyboard
		Positing	CCD visual imaging systems /Electric "+"target confirm place
		Image	advance of CCD image location
	Data memory capacity	PC storage/USB
	Operation System	Windows XP
	Precision vision	include
	Dispensing controller	Extemal
	Software	TianHao 3 axis dispensing software(chinese/english)
Hardware	Control Method	PC control, LCD display
		Drive System	Precision 3-phase micro-stepping motor
		Transmission	Timing Belt/ Precision Linear Guides

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

4)reduced production,material.and ownership costs
5)Faster cycle and batch times
6)easy integration into any manufacturing operation
7)reduced production,material.and ownership costs
8)new manufacturing opportunties

Certifications

Detailed Images

Machine Parts

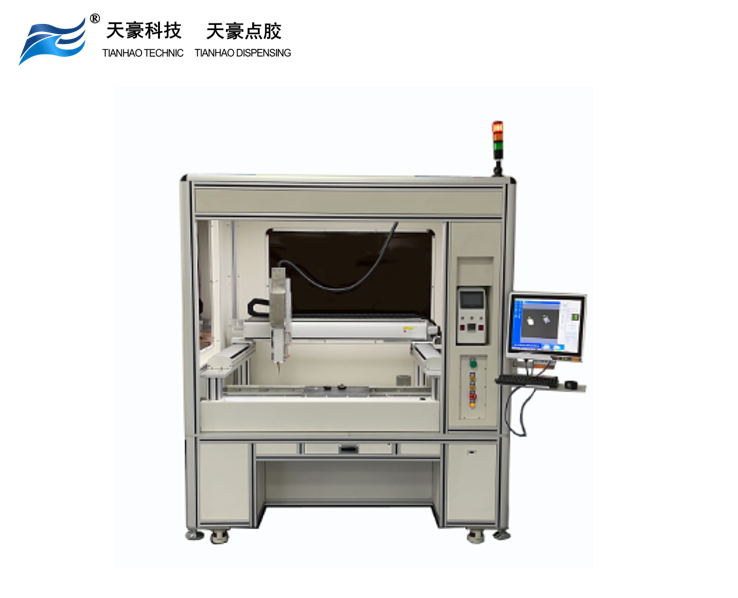

CCD Visual images Assisted Positing
On-screen preview of the dispense path
This Dispensing robot equipped with CCD visual images Assisted positioning and edit programming,Multiplied by the camera target workpiece,then use of the electronic cross-line target on the place to edit dot precisely and quickly,Maximum to avoid the result of the man with eye vision tolerance. Real time tracking of location of coordinate orbit to be displayed so as to shorten the programming time and improve programming efficiency.

Main Features

Professional-grade software with dispensing machine
Easy, intuitive setup and programming
Software use man-machine dialoguing window, Chinese and English can interfaces.
TiaHao dispensing robot controller software design from fluid control and adhesive process requirements.basic windows XP computer operation system and Integration of robot trajectory control and flow control.have(Chinese/Traditional/English) three language be select as your require. any of the quantitative,Dispensing glue delay time,ahead of time delay Distance.Dispensing height and other relevant parameter. Can be set. solve the ordinary machine with operation of complex, running unstable, dispensing no Accurate, non-uniform and Contact evident tape and other obvious defects.
The dispensing image equipped with newly developed "Dispensing preview function" is displayed Display high-speed image acquisition and flexible dispensing track editor
the dispensing programs can be enjoy be created ,save, quote .changed, no limit save file.
Different product dispensing more kinds different size and thickness line or arcs at same time, you only setting different dispensing speeds, in each period, so that we can dispensing different size and thickness line or arcs.

Machine Parts

Joystick Streamlined file import and conversion
Quote the JOYSTICK operate the machine-readable program coordinates.simplifies the operation of the robot. Easy to 3axis linkage, resolve all the 3D adhesive dispensing process. The drawing load by the AUTO CAD which simplifies operation

Main Features

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	65(L) * 60 (W) * 55 (D)
Weight	45KGS
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
